Product Description

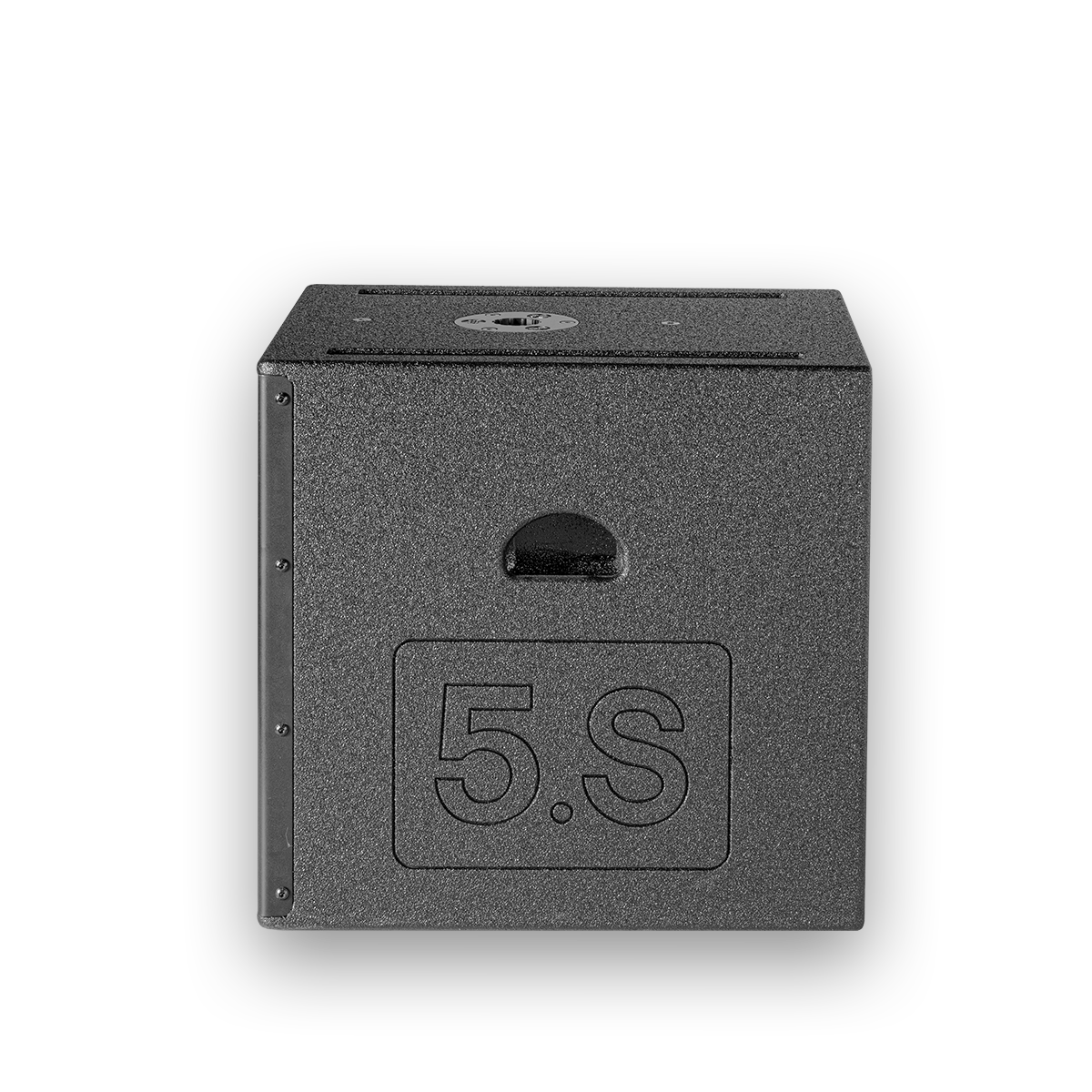

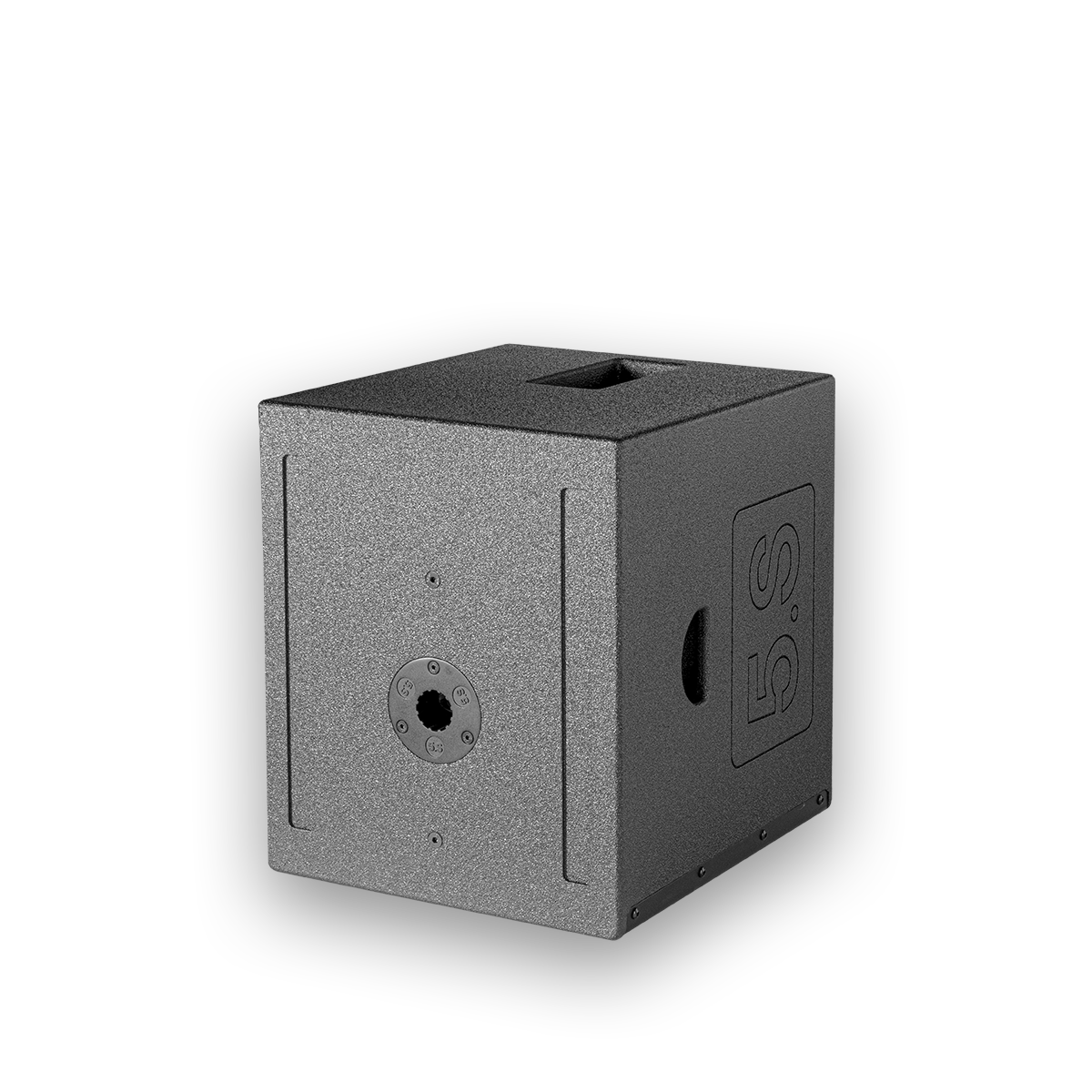

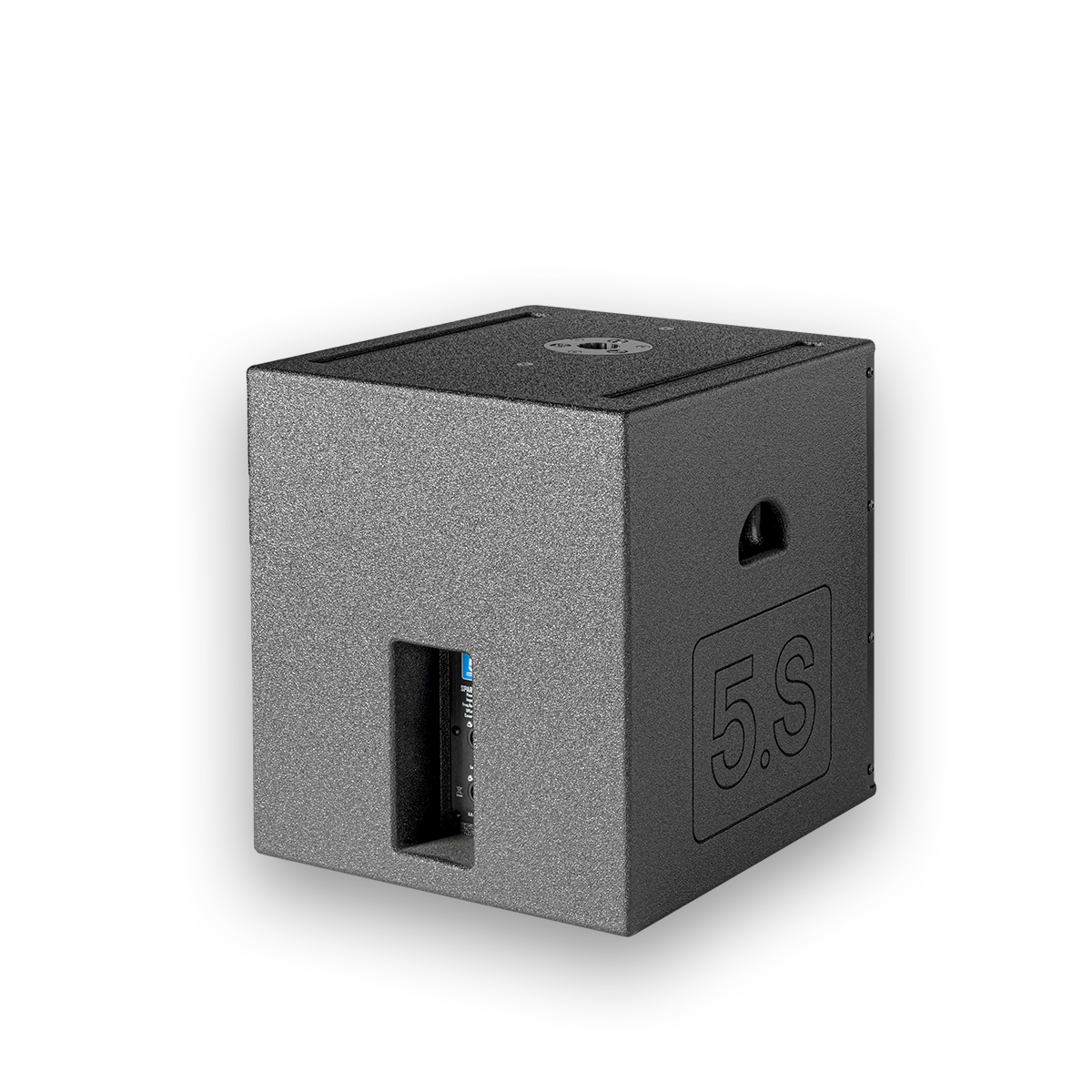

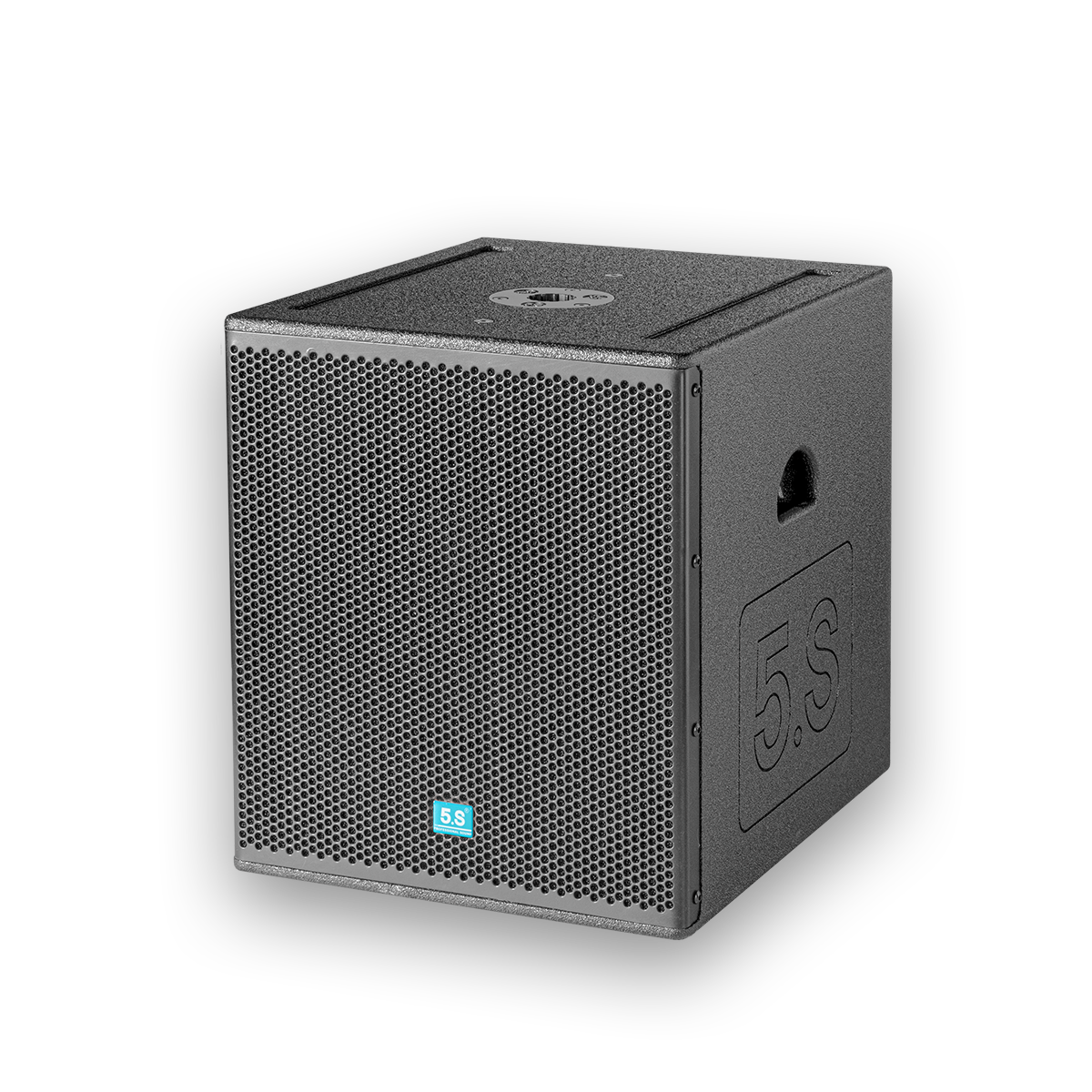

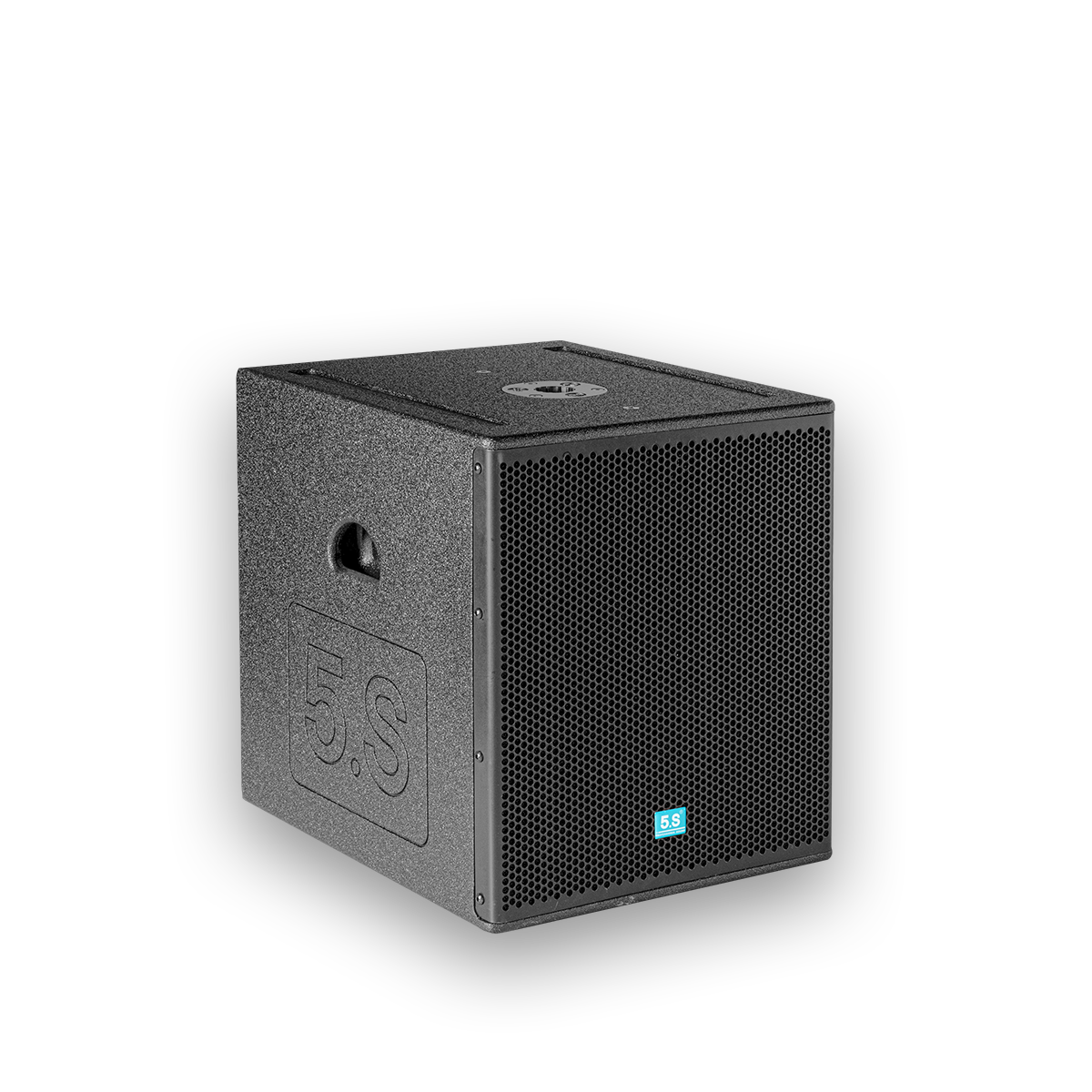

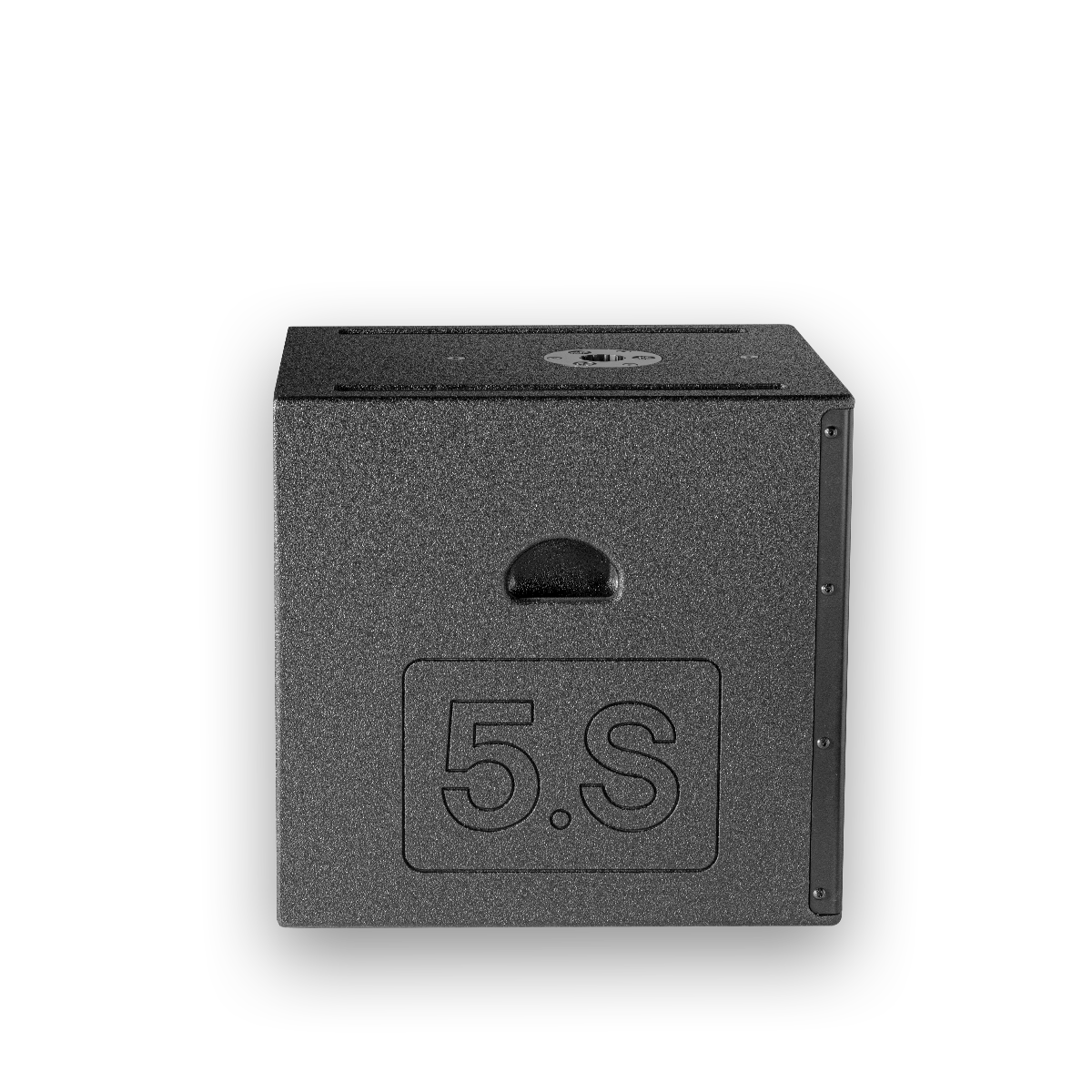

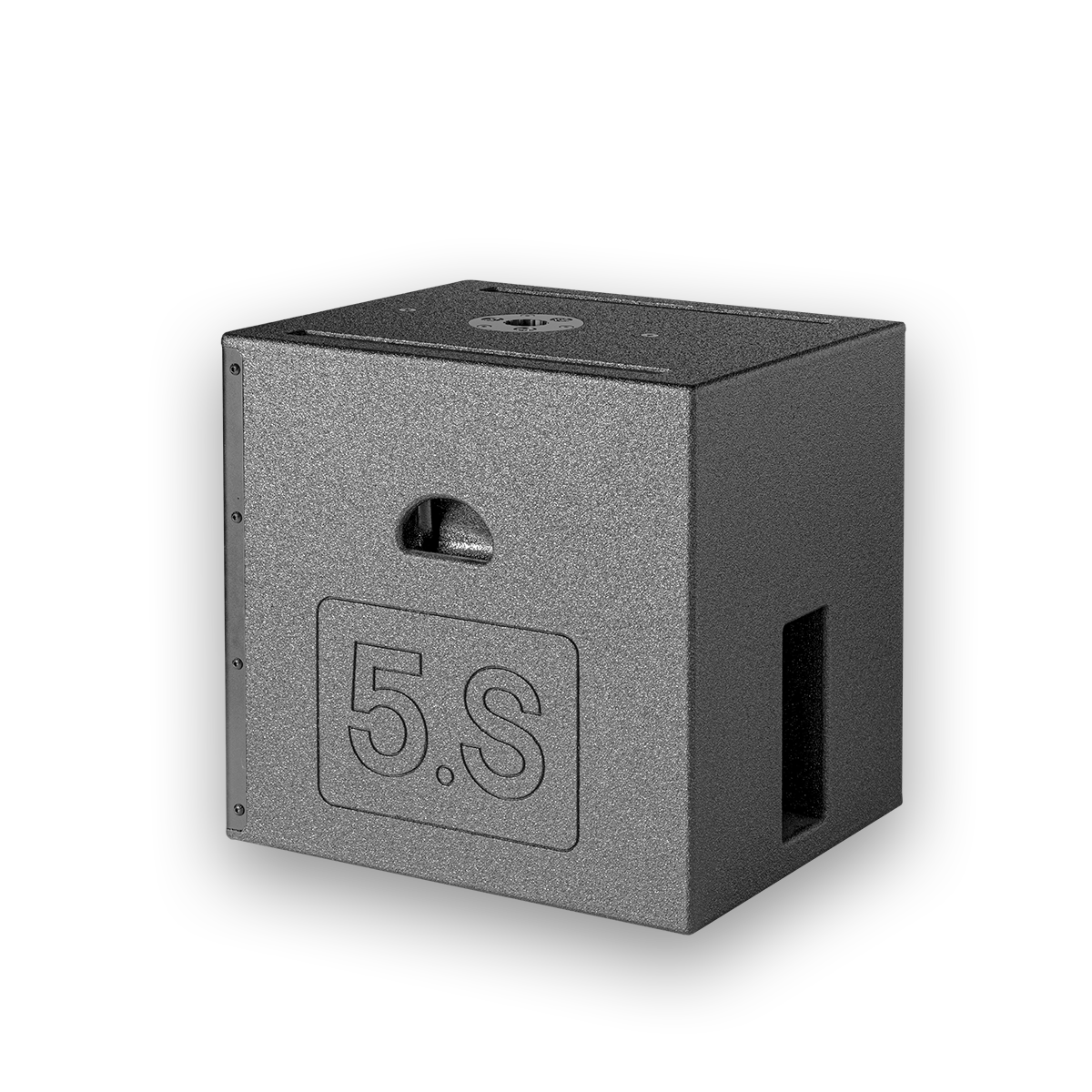

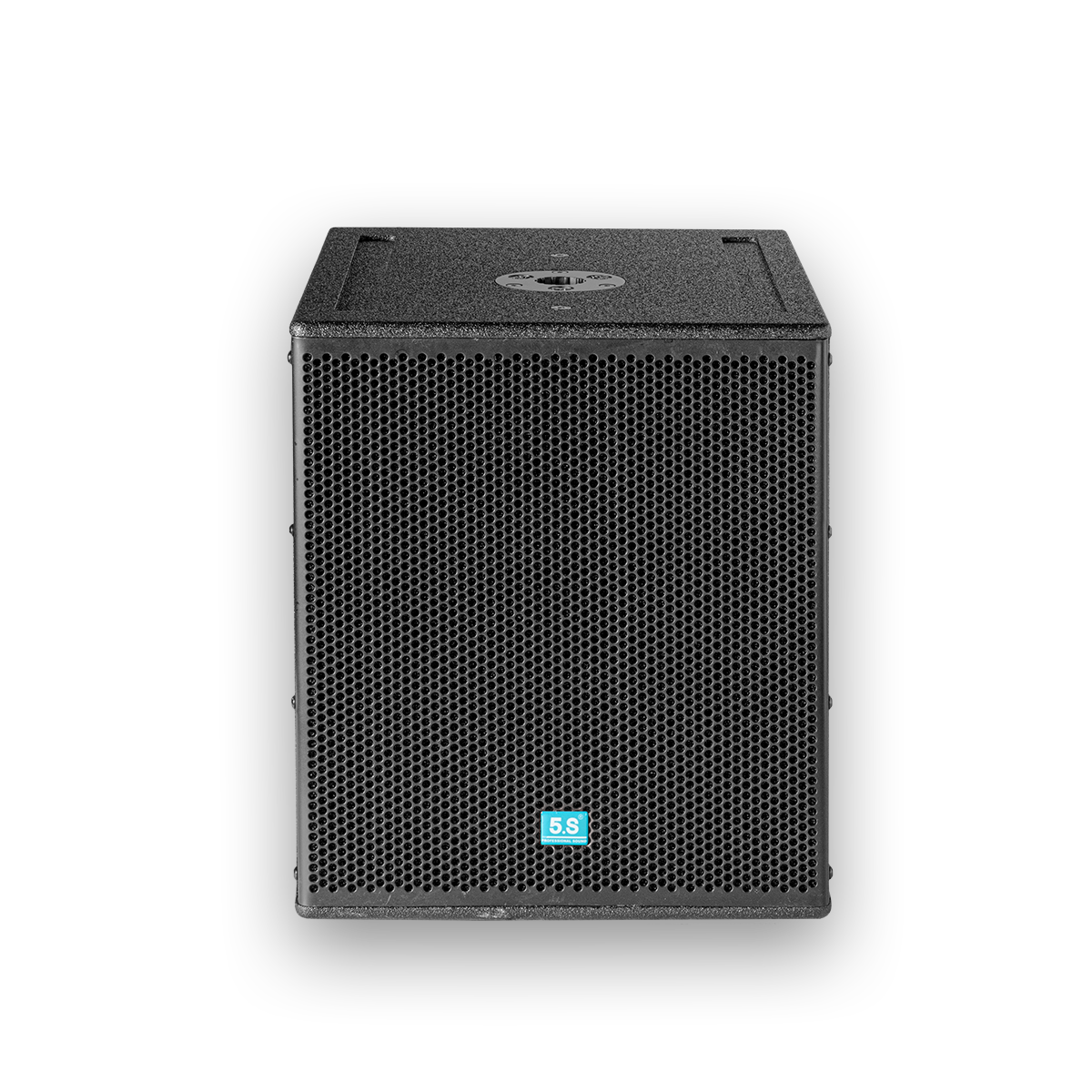

The Audio SW-112B is a 12" compact subwoofer that delivers powerful ultra-low frequency response. The woofer and wooden cabinet design provide tight and precise bass response, making it an ideal match for the LY-08.
The unit features a long-throw design with a high magnetic flux for increased efficiency, driven by a 35mm high, 3.5-inch voice coil, ensuring a stroke under 26mm/PP continuous magnetic force. The bass driver incorporates a carbon fiber cone design, maximizing rigidity and minimizing inertial displacement.
Additionally, it utilizes triple heat-resistant flat copper wire to reduce power compression caused by voice coil heating, comprehensively improving sound quality and performance.
Technical Specifications
| Type: | 12" Ultra-Low Frequency Multi-Purpose Speaker System |
| Frequency Response: | 42Hz–500kHz |
| Power: | 400W |
| Peak Power: | 1600W |
| Impedance: | 8Ω |
| Dispersion Angle: | -- |
| Sensitivity: | 96dB |
| Maximum SPL: | 129dB |
| Crossover Point: | External Crossover |

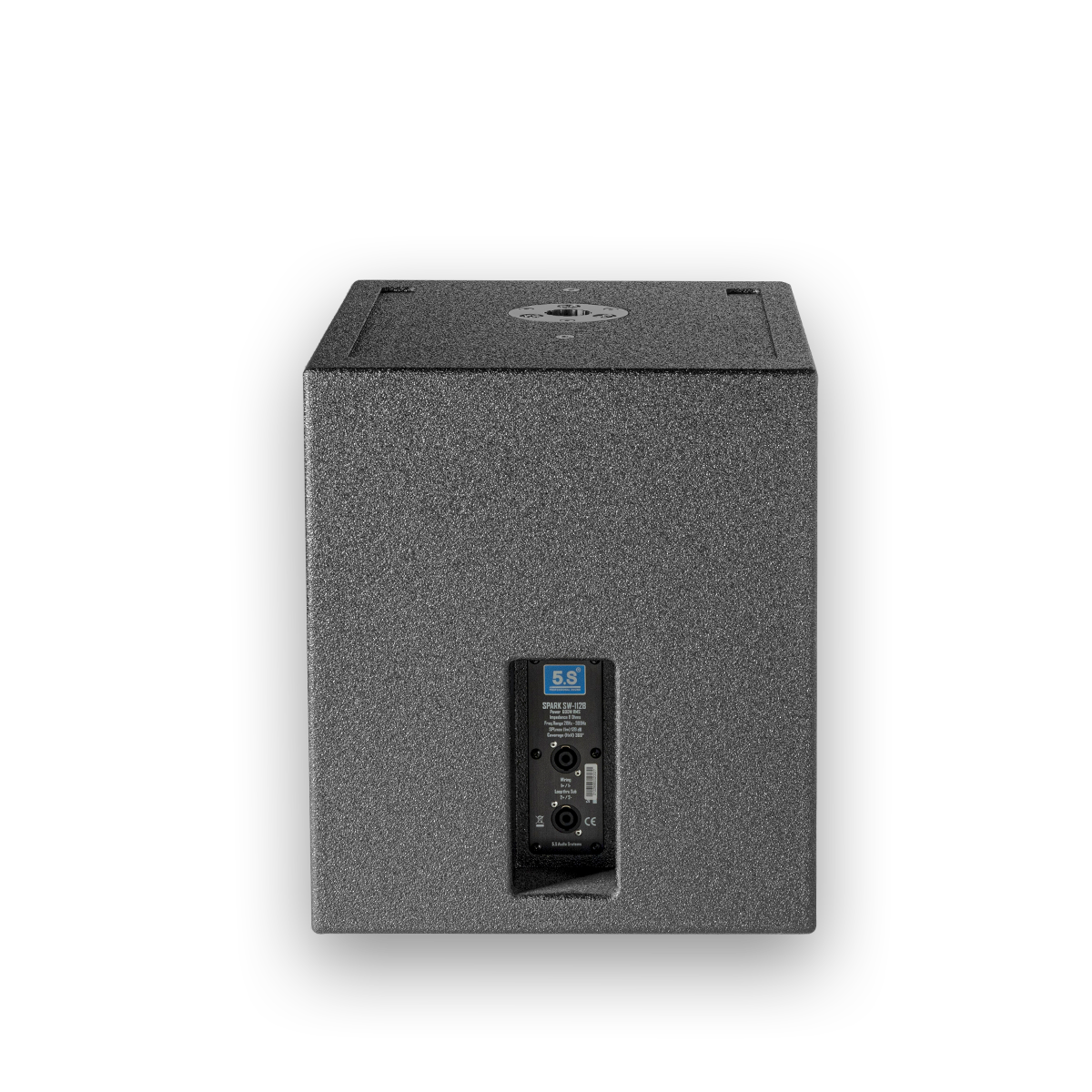

| Input Connector: | 2*NeutrikTM 2+2- |
| Low Frequency: | 12" bass component with European imported custom woofer, large magnetic circuit design. 3.5" (88mm) voice coil, rated power: 500W (AES) |
| High Frequency: | -- |
| Enclosure Material: | 15mm marine-grade birch plywood |
| Enclosure Finish: | Black polyurea paint |
| Net Weight: | 24Kg |
| Dimensions: | 395mm*460mm*470mm (W*D*H) |
