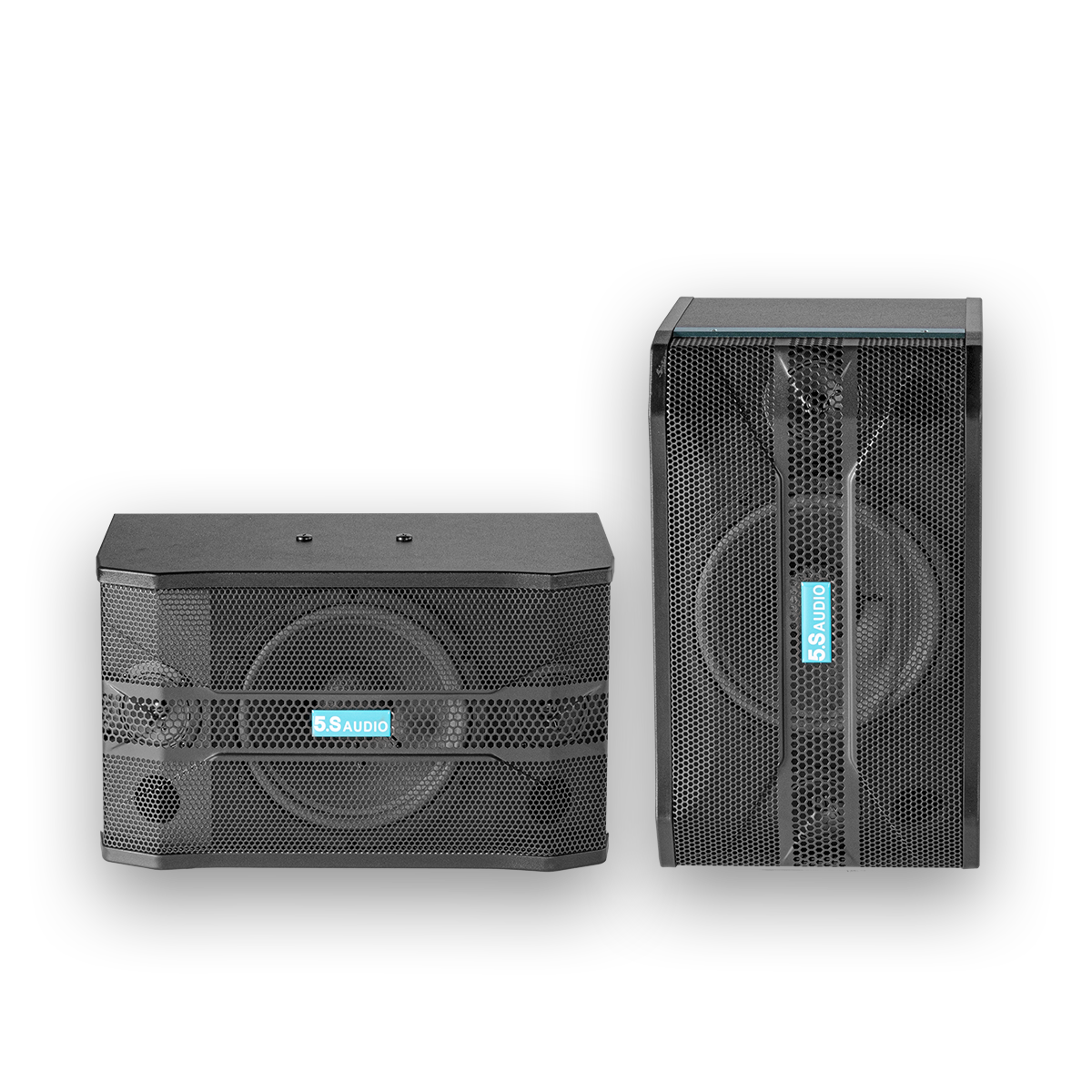

BL-6010 Two- way FullRange LoudSpeaker

BL-6010 is a multi-functional full range loudspeaker system with 2-way design. The loudspeaker is equipped with a 90°*60°rotating square plastic steel horn, with a 10” high power ultra-low distortion bass driver and a 1” horn compression driver unit. The BL-6010 speaker is designed of balance back oriented. As a 2-way system, BL-6010 can be either driven directly or matched with a dual-amplifier system to achieve extremely high output. Ideal for use in fixed installations, high-end KTV, nightclub, midfield/near-field amplification and private club, and provide professional sound solutions.

BL SERIES Features

  • High SPL output multi-functional full-range loudspeaker system with 2-way design
  • 1"horn unique design, customized driver originally imported from the European
  • 10" & 12"& 13” ultra-low distortion of bass unit
  • Design for use in fixed setting, KTV, nightclub, near-field/amplification and private club etc.
  • Design of balance back oriented on the enclosure
  • 90°x60°rotating square plastic steel horn
  • Full-frequency dual channel amplifier drive

Parameters

Type: Multi-functional full-range loudspeaker system with 2-way design
Frequency Response: 44Hz-20kHz
Rated Power: 300W
Peak Power: 1200W
Sensitivity: 94dB
SPL: 123dB
Dispersion HxV: 90°*60°
Crossover Frequency: 1.8kHz(passive crossover)
Impedance: 8 ohms
Connectors: 2*Neutrik™ 1+1-
LF: 10" loudspeaker, high power and ultra-low distortion; Voice coil:2.5" (63mm). Rated power: 250W (AES)
HF: 1" horn, Voice coil: 1.75"(44mm) Rated power: 50W (AES)
Enclosure Paint: Polyurea Paint (Black)
Enclosure Materials: 15mm marine-grade Birch Plywood
Dimensions: 294mm*540mm*324mm(W*H*D)
Net Weight: 16.25kg
