5.S D-SERIES manifold applications in art performance/dramshop/clubs

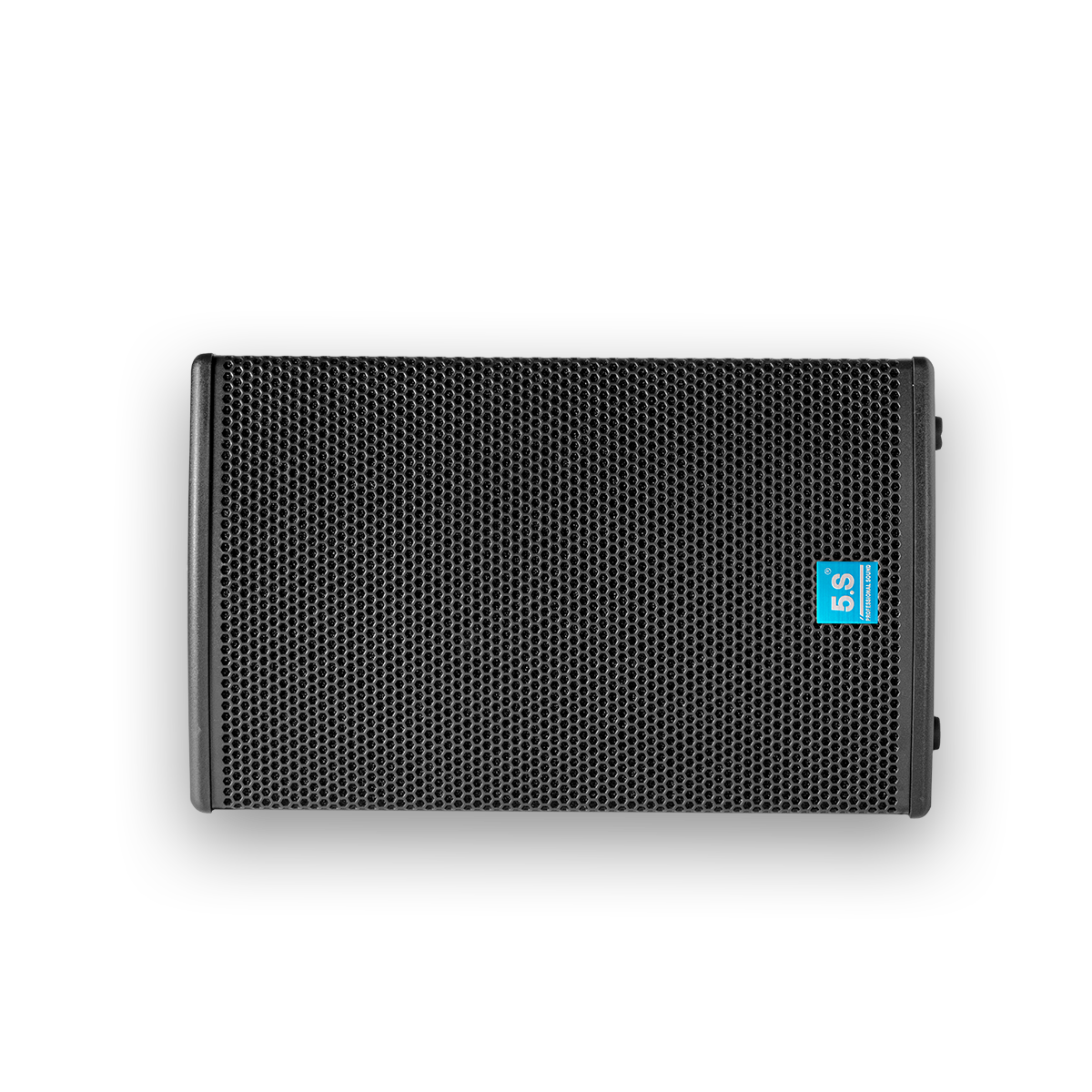

LY-15 is a multi-functional full range loudspeaker system with 2-way design. The loudspeaker is equipped with a 80°*50°rotating rectangle plastic horn, with a 15” high power ultra-low distortion bass driver and a 1.5” horn compression driver unit. The LY-15 speaker is designed of trapezoidal front-oriented. As a 2-way system, LY-15 can be either driven directly or matched with a dual-amplifier system to achieve extremely high output. Ideal for use in KTV, night club, near-field amplification and private club, and provide professional sound solutions.
LY SERIES Features
Type: | Multi-functional full-range loudspeaker system with 2-way design |
Frequency Response: | 42Hz-20kHz |
Rated Power: | 600W |
Peak Power: | 2400W |
Sensitivity: | 96.5dB |
SPL: | 130dB |
Dispersion HxV: | 80°*50° |
Crossover Frequency: | 1.8kHz(passive crossover) |
Impedance: | 8 ohms |
Connectors: | 2*Neutrik™ 1+1- |
LF: | 15" loudspeaker , Voice coil: 3"(75mm). Rated power: 530W (AES) |
HF: | 1.5" horn, Voice coil: 3"(75mm) Rated power: 70W (AES) |
Enclosure Paint: | Polyurea Paint (Black) |
Enclosure Materials: | 15mm marine-grade Birch Plywood |
Dimensions: | 440mm*700mm*415mm(W*H*D) |
Net Weight: | 30.85kg |
