Product Description

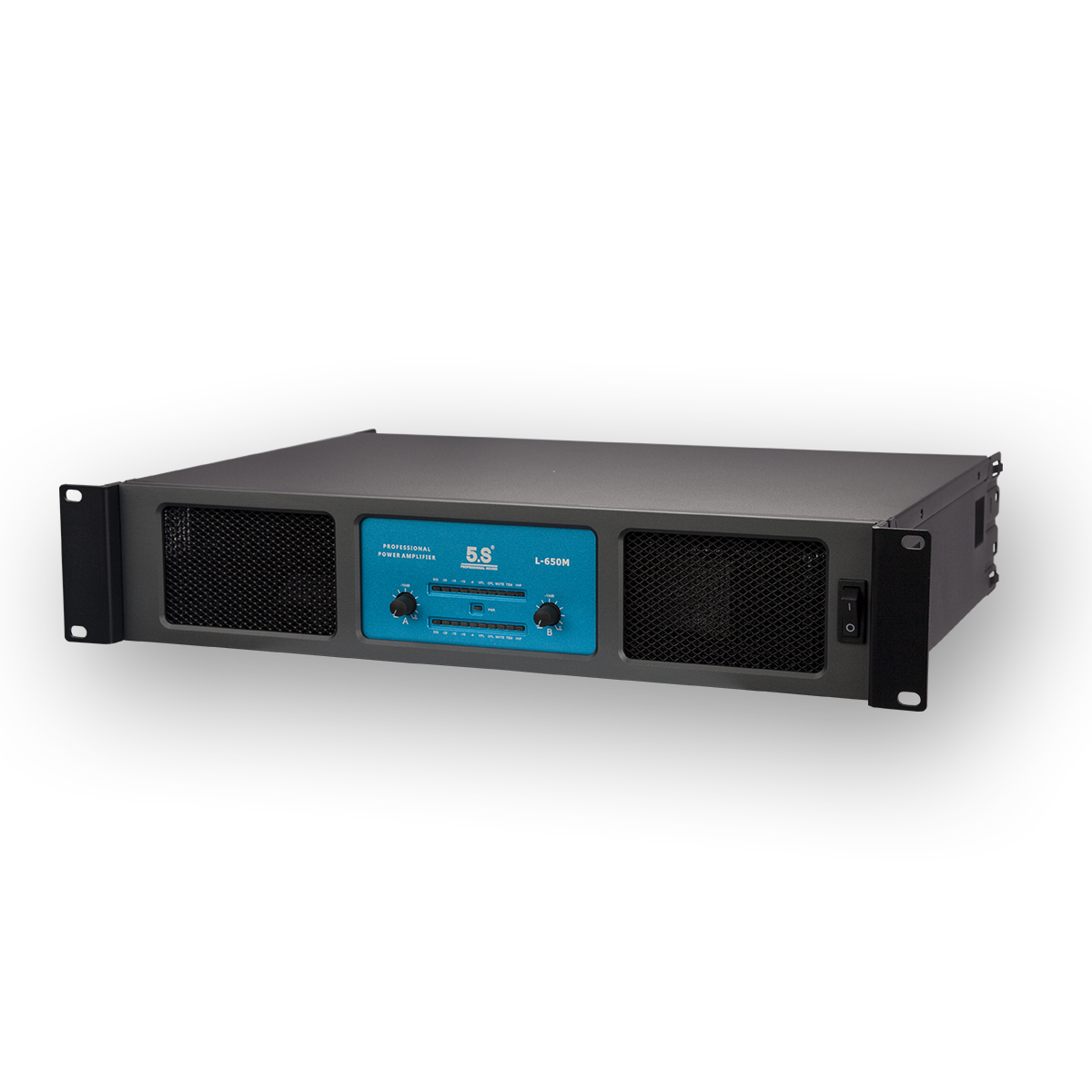

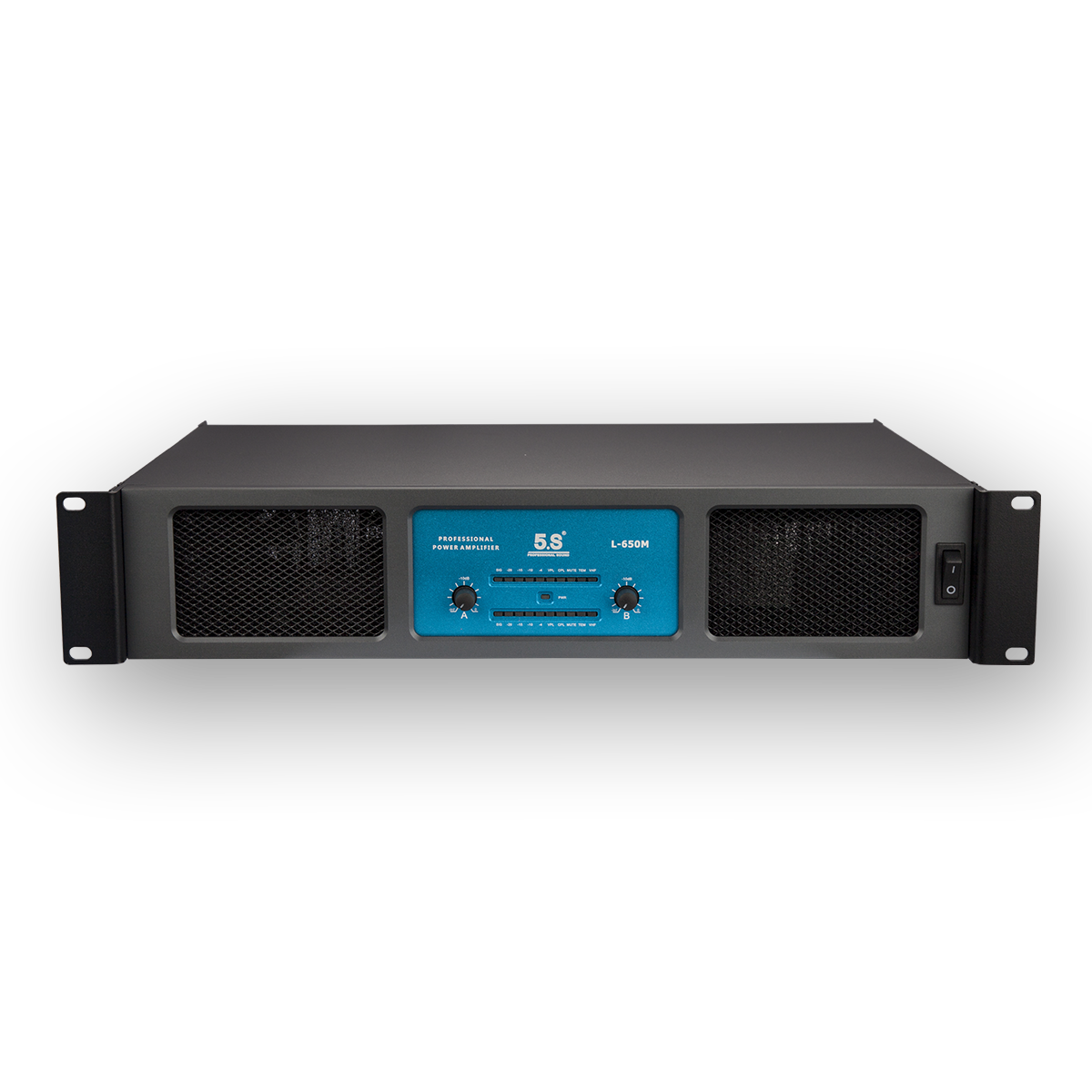

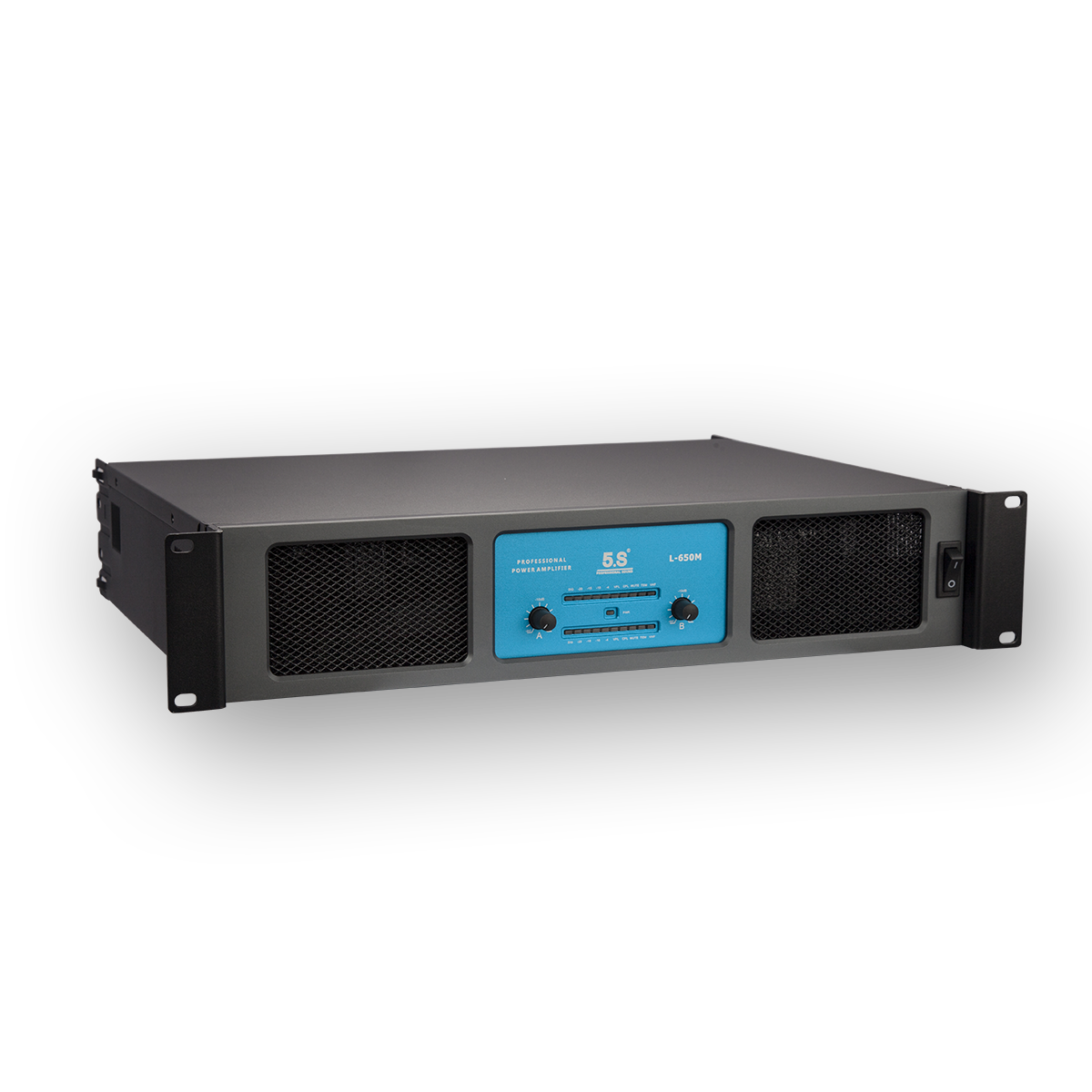

The L-650M is a 2-channel digital circuit processing power amplifier capable of amplifying weak electrical signals from the signal source to drive speakers and produce sound.
With a maximum output power of up to 1300W, the substantial power output ensures a significant power reserve, enabling 5S Audio speakers to deliver superior sound quality.
The power amplification circuit of the L-650M adopts a true Class I circuit design, providing more precise sound reproduction while maintaining a substantial power reserve, allowing the speakers to perform at their best.
In a high-quality audio system, the role of the amplifier is indispensable.
| Model: | L-650M |
| Output Power: | Stereo 8Ω: 2X650W | Stereo 4Ω: 2X980W | Bridged 8Ω: 1960W |
| Frequency Response: | 20Hz-20kHz, ±1.5dB |

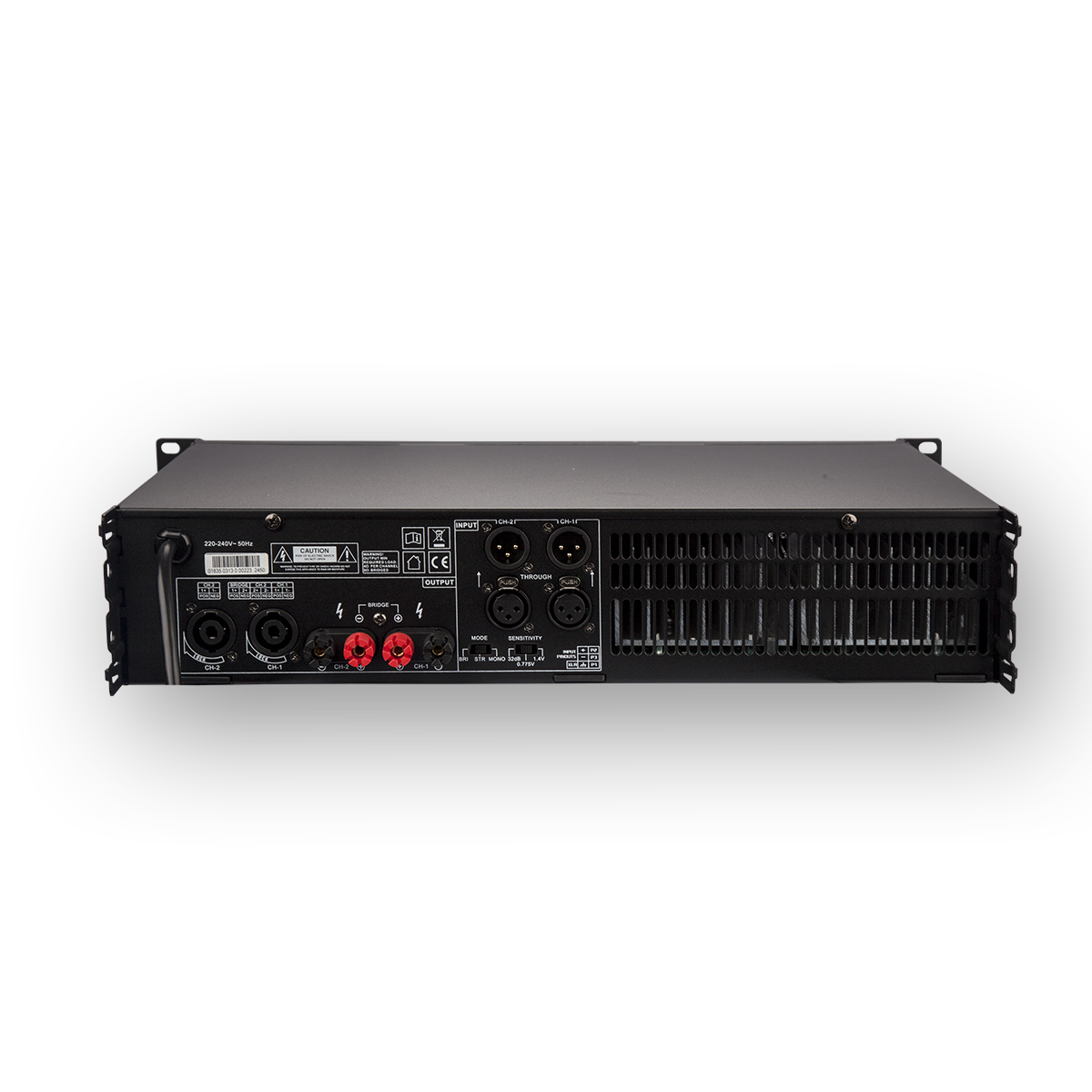

| Output Connectors: | Binding Post and Speakon |
| Input Sensitivity: | 0.77V |
| Balanced Input Impedance: | 20kΩ (Balanced) | 10kΩ (Unbalanced) |
| Signal-to-Noise Ratio: | ≥100dB |
| Total Harmonic Distortion: | ≤0.05% |
| Separation at Rated Power (8Ω, 1kHz): | >65 dB |
| Slew Rate: | 15V/μS |
| Protection: | Soft Start, Short Circuit, Limiter, DC Fault, AC Line Fuse, Thermal Cutoff |
| Cooling System: | Dual Fans |
| Power Supply: | AC: 220-230V, 50Hz/60Hz |
| Net Weight: | 13.85 kg |
| Dimensions: | 482mm × 402mm × 88mm (W × D × H) |
