Single 8" two-way compact versatile full-range loundspeaker

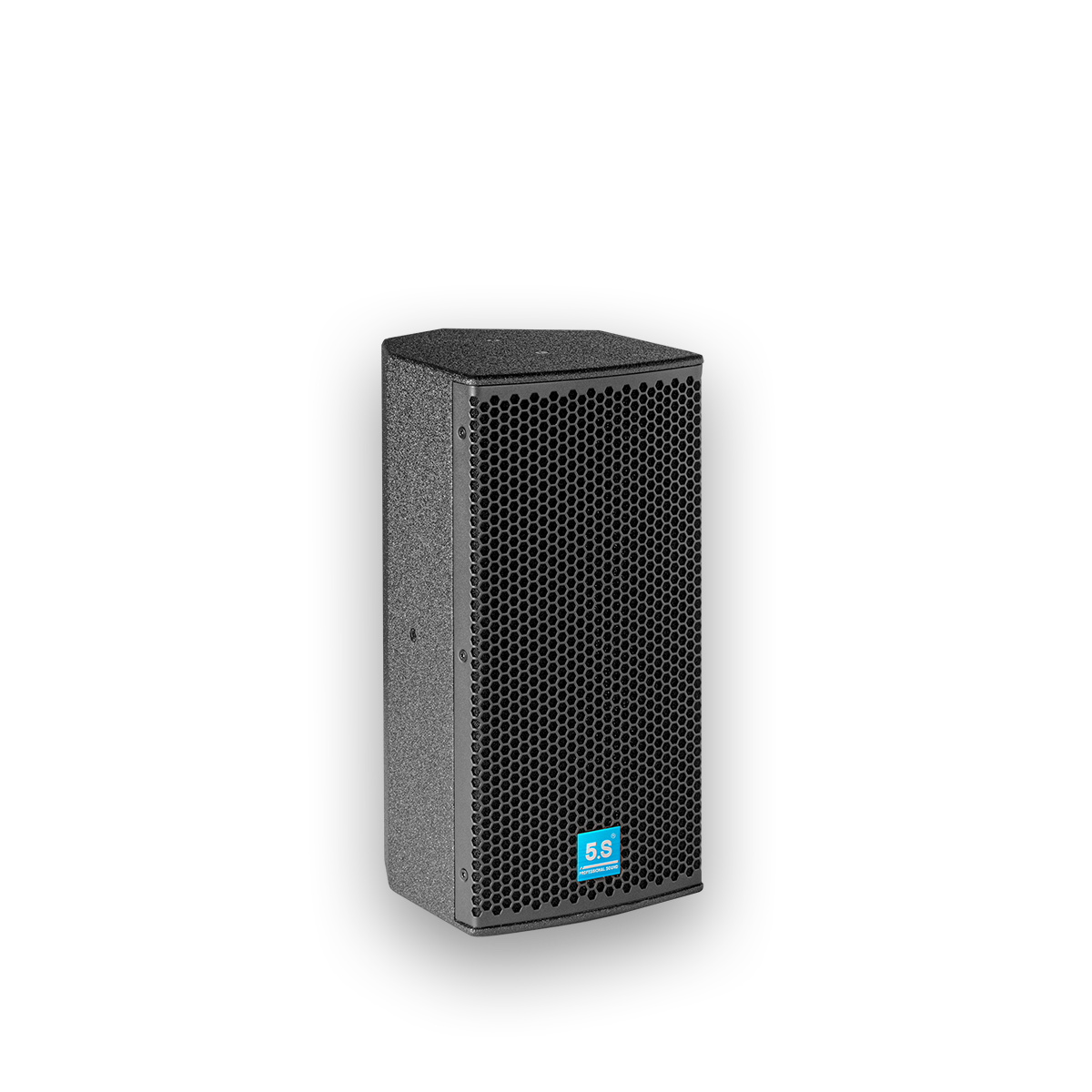

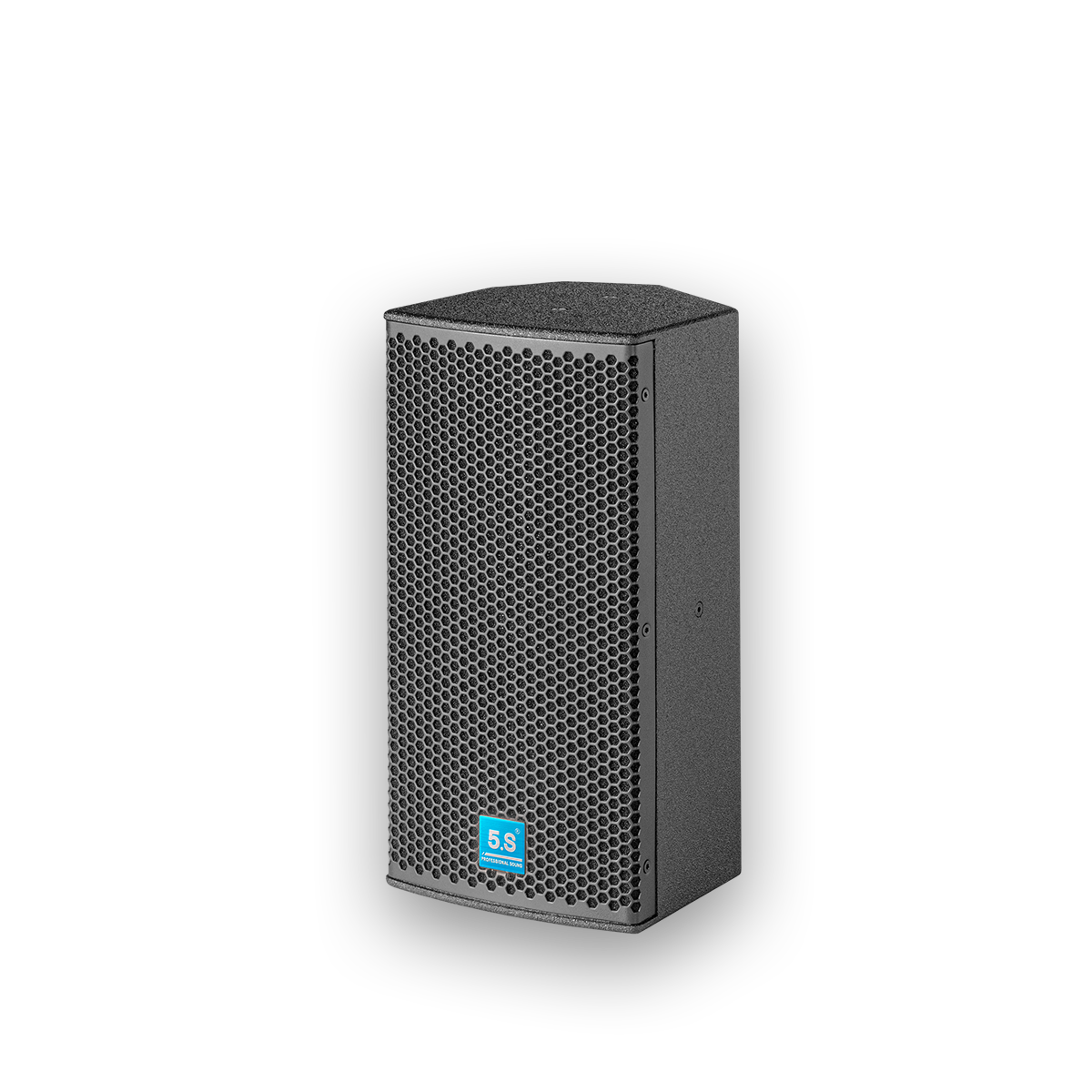

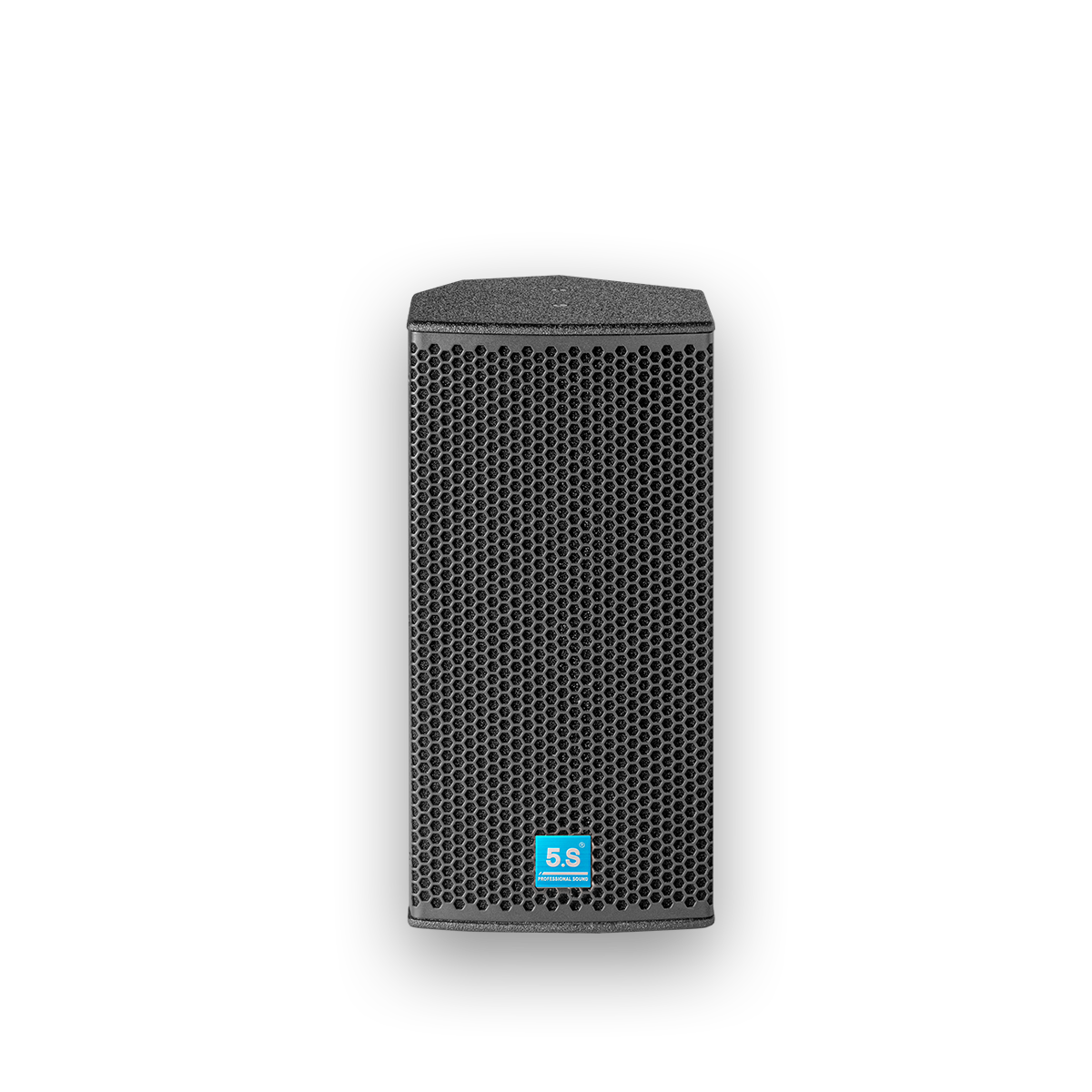

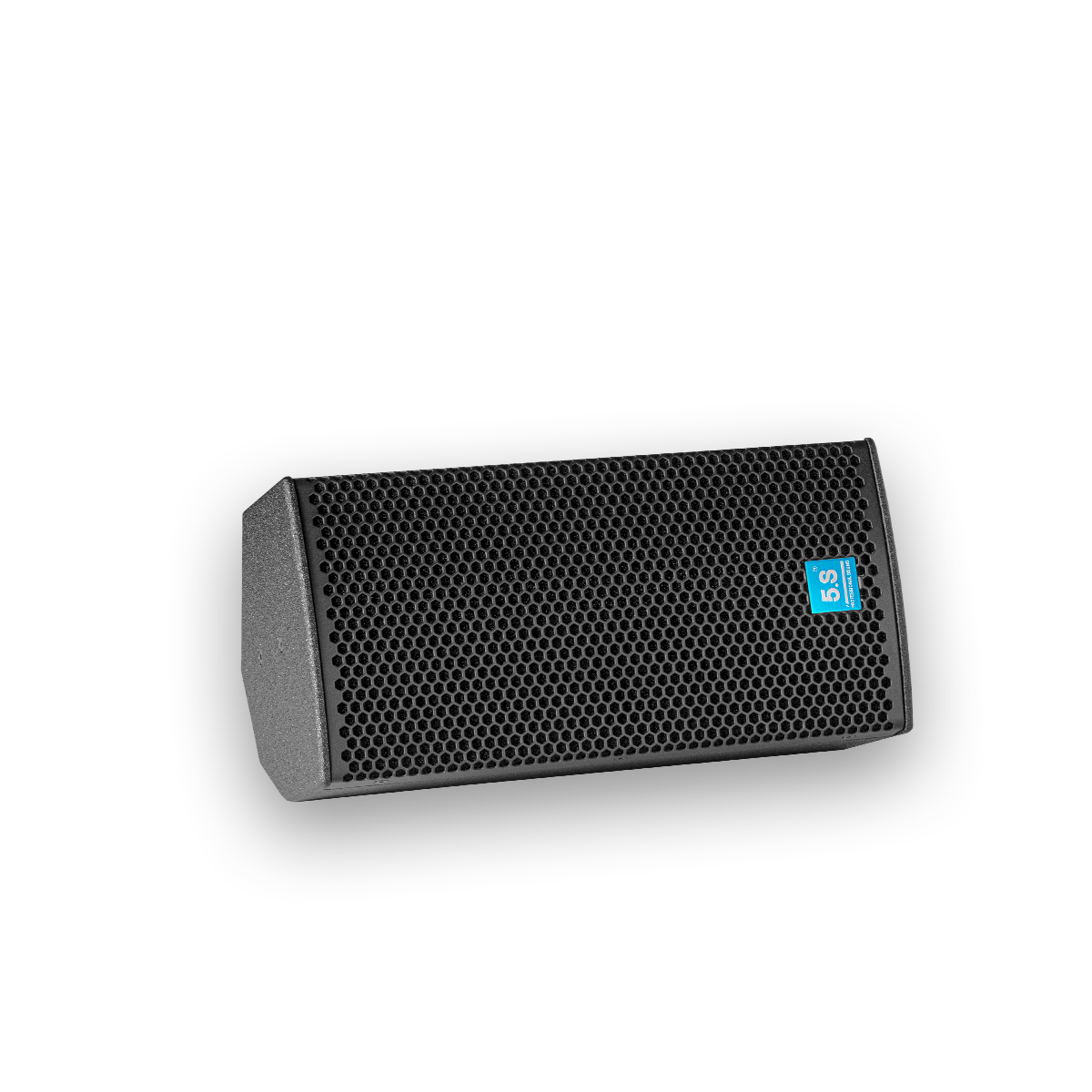

AUDIO G-8 is a compact 2-way system with broad applicability, featuring a 2-inch voice coil and an ultra-low distortion neodymium woofer. It is a versatile compact 2-way full-range loudspeaker system integrating an 8-inch ultra-low distortion bass unit and a 1" compression driver coupled to a 90° conical wooden waveguide.

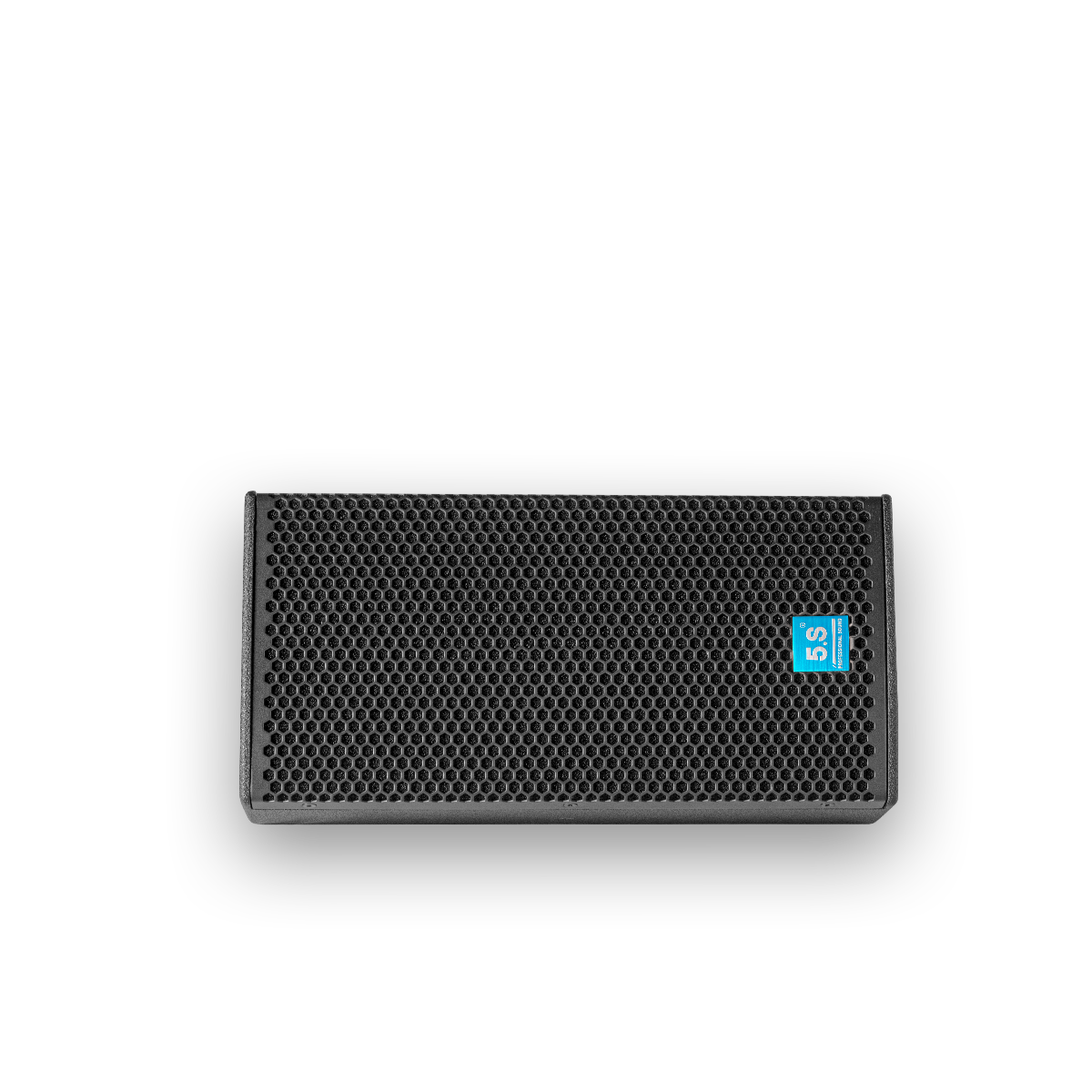

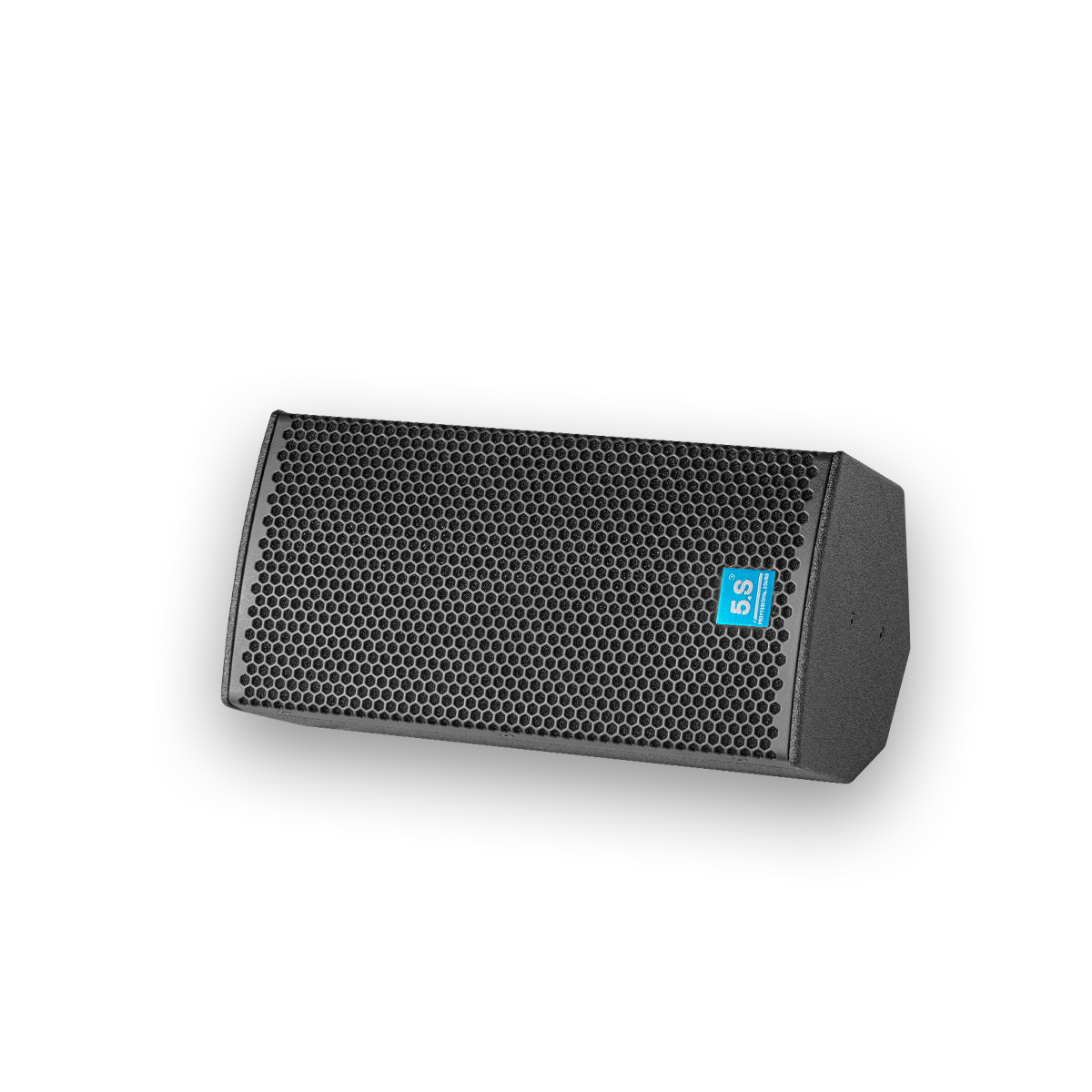

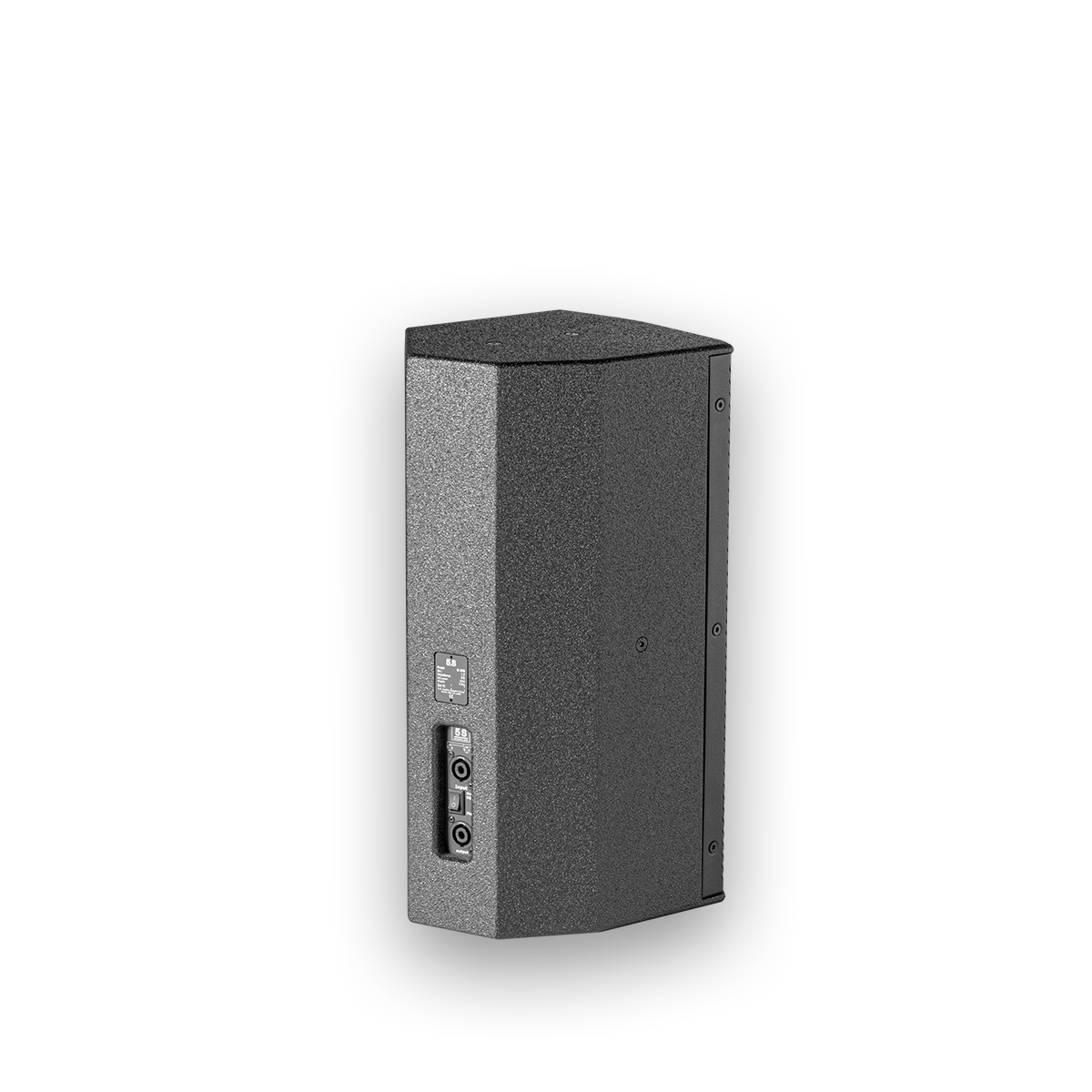

The G-8 incorporates a multi-functional enclosure equipped with M6/M8 suspension points, allowing for horizontal, vertical, or floor monitor applications.
| Type: | 2-Way Compact Multipurpose Full-Range Speaker System |
|---|---|
| Frequency Response: | 60Hz–20kHz |
| Power: | 220W |
| Peak Power: | 880W |
| Impedance: | 8Ω |
| Dispersion Angle: | 90° Symmetrical |
| Sensitivity: | 95dB |
| Maximum SPL: | 124dB |
| Crossover Point: | 1.9kHz Built-in Crossover |

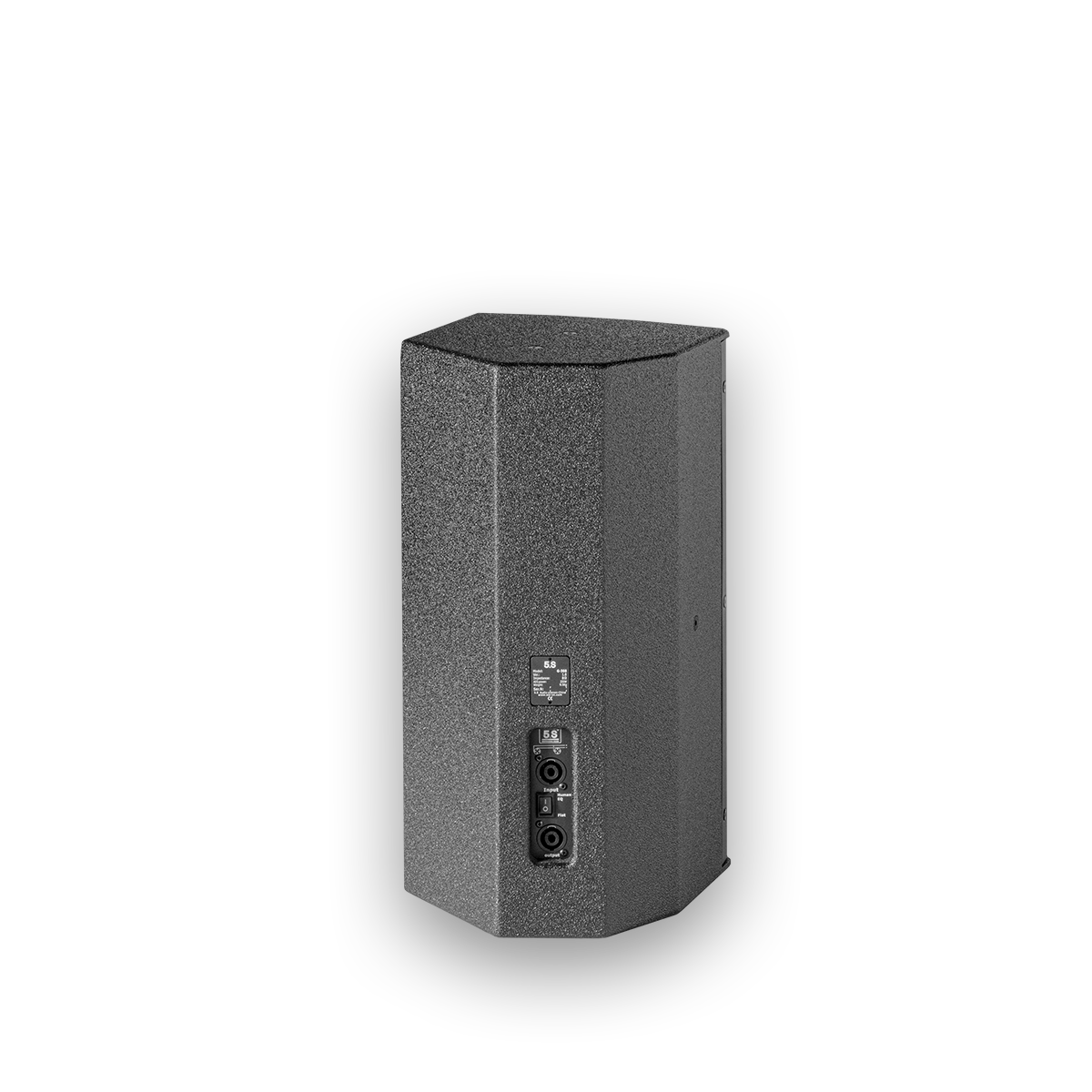

| Input Connector: | 2*NeutrikTM 1+1- |
| Low Frequency: | 8" Woofer with Aerospace-Grade Ferrite Driver, 2" (51mm) Voice Coil, Rated Power: 220W (AES) |
| High Frequency: | 1" Throat, Aerospace-Grade Ferrite Driver, 1.5" (38mm) Voice Coil, Rated Power: 50W (AES) |
| Enclosure Material: | 12mm Marine-Grade Birch Plywood |
| Enclosure Finish: | Black Polyurea Paint |
| Net Weight: | 10.3Kg |
| Dimensions: | 230mm*262mm*480mm (W*H*D) |
