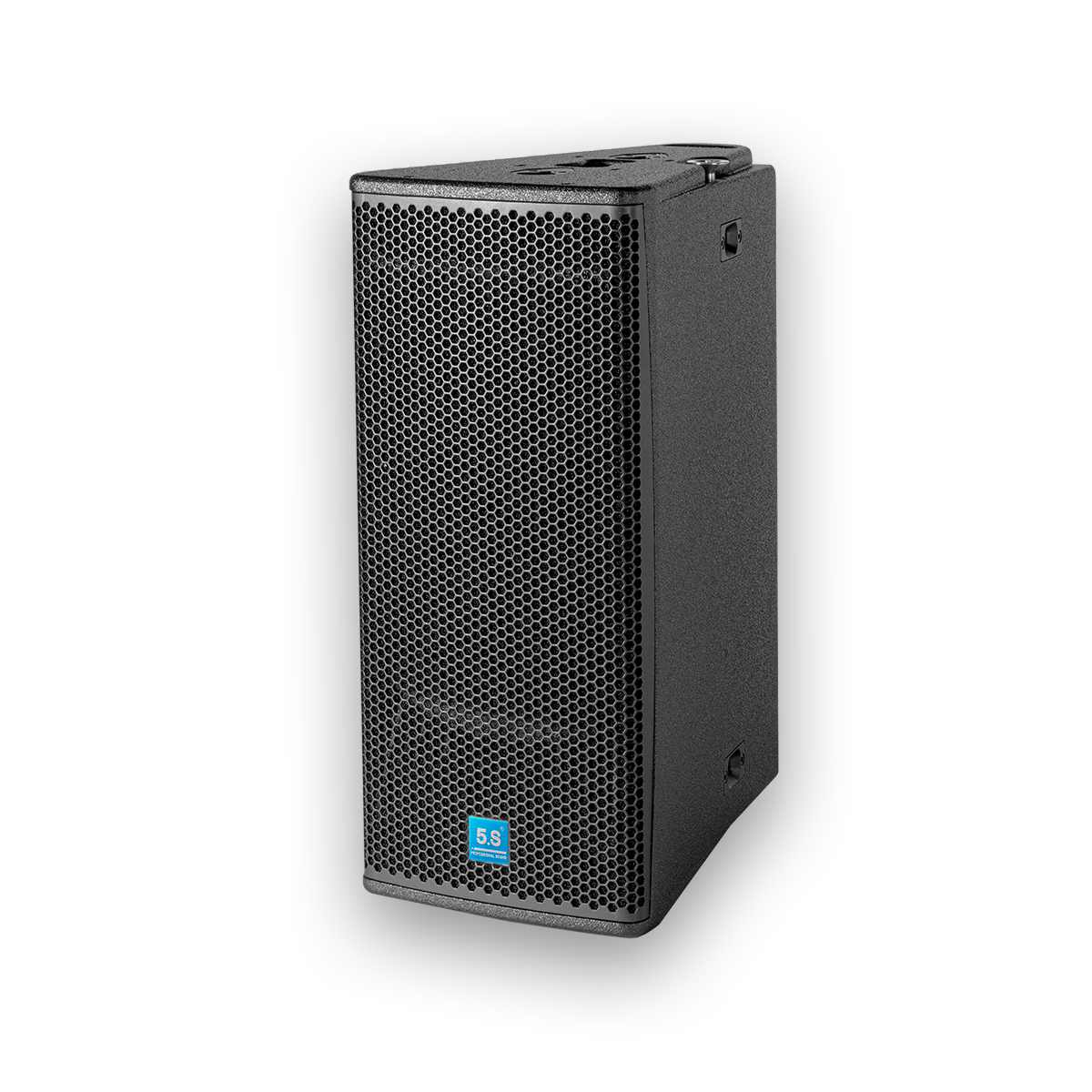

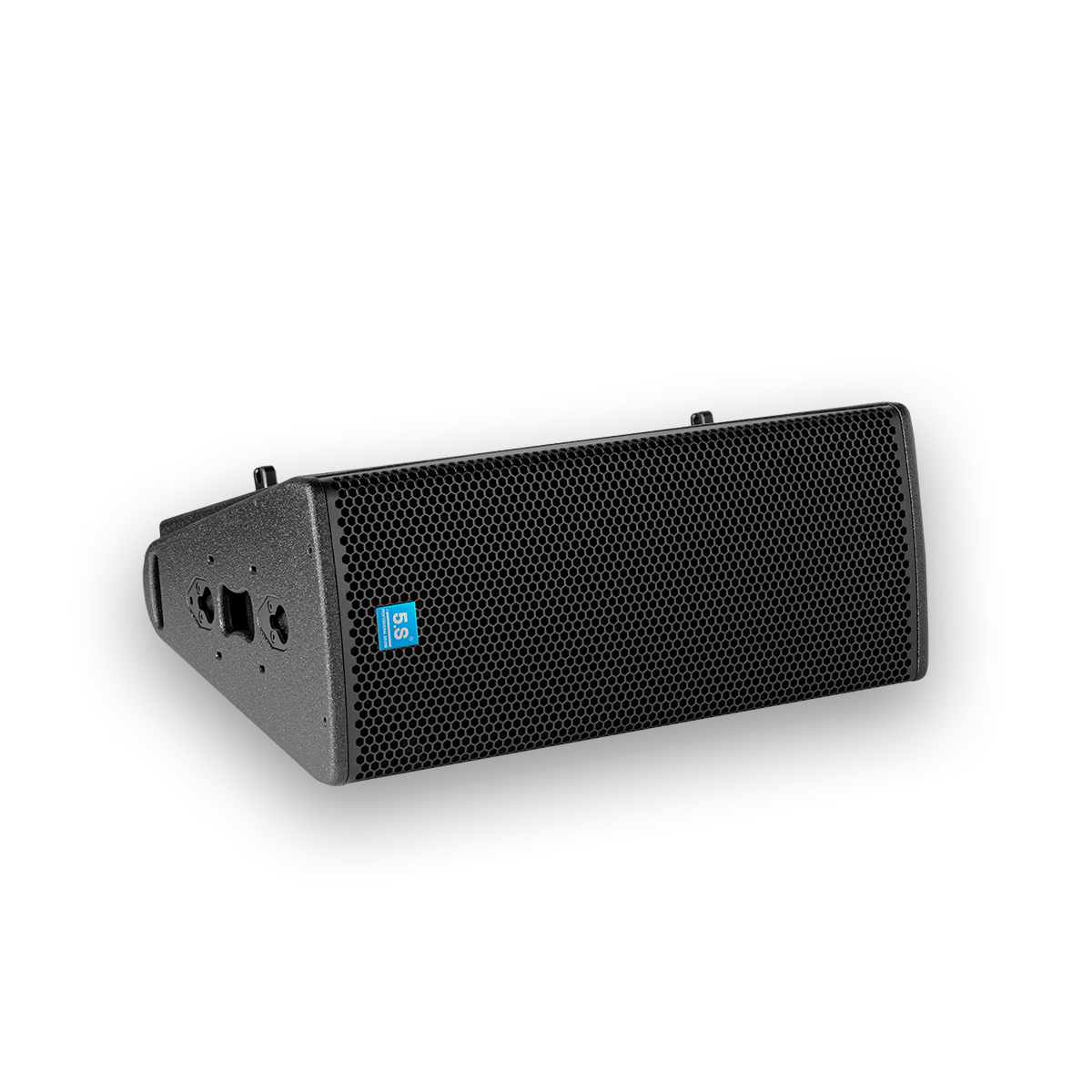

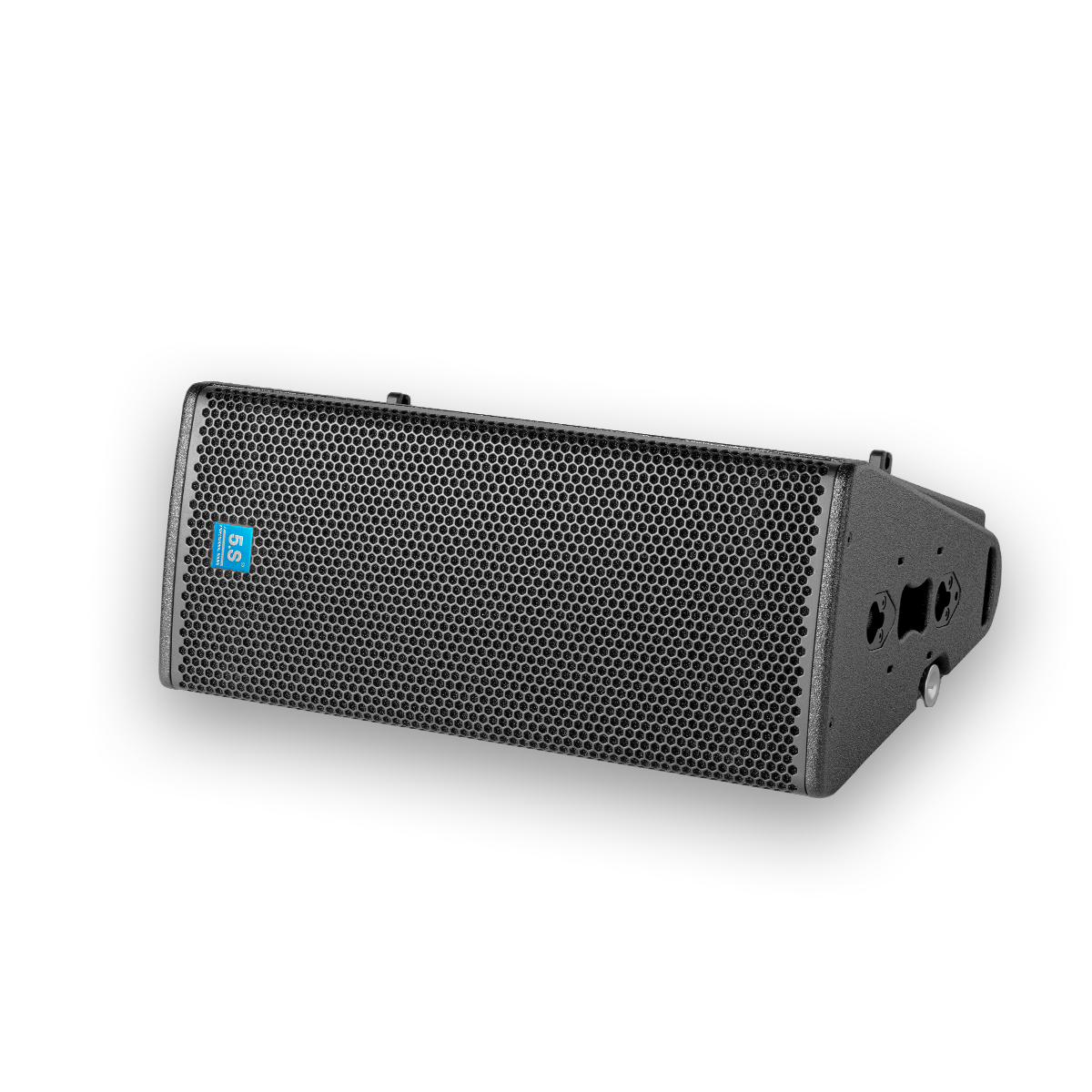

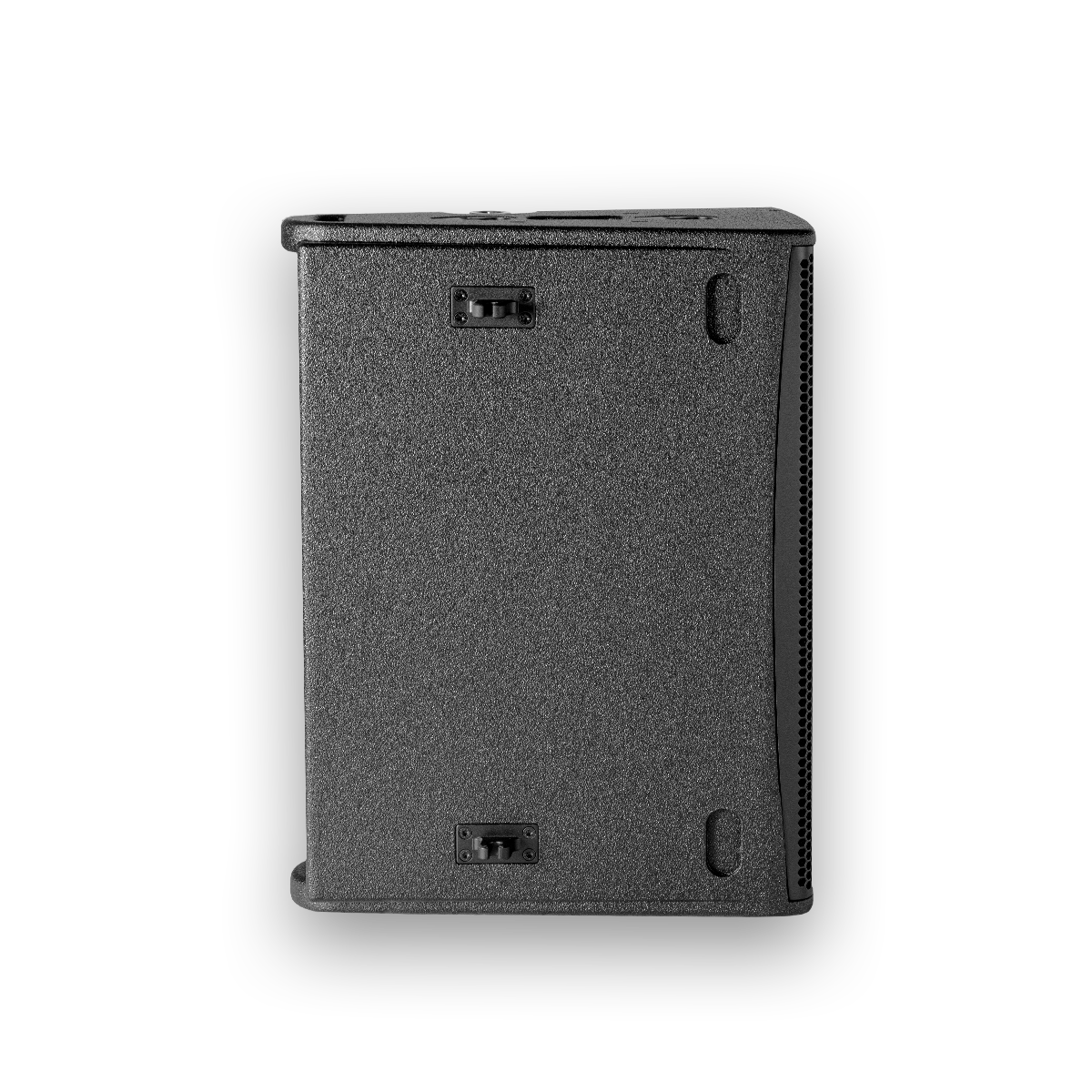

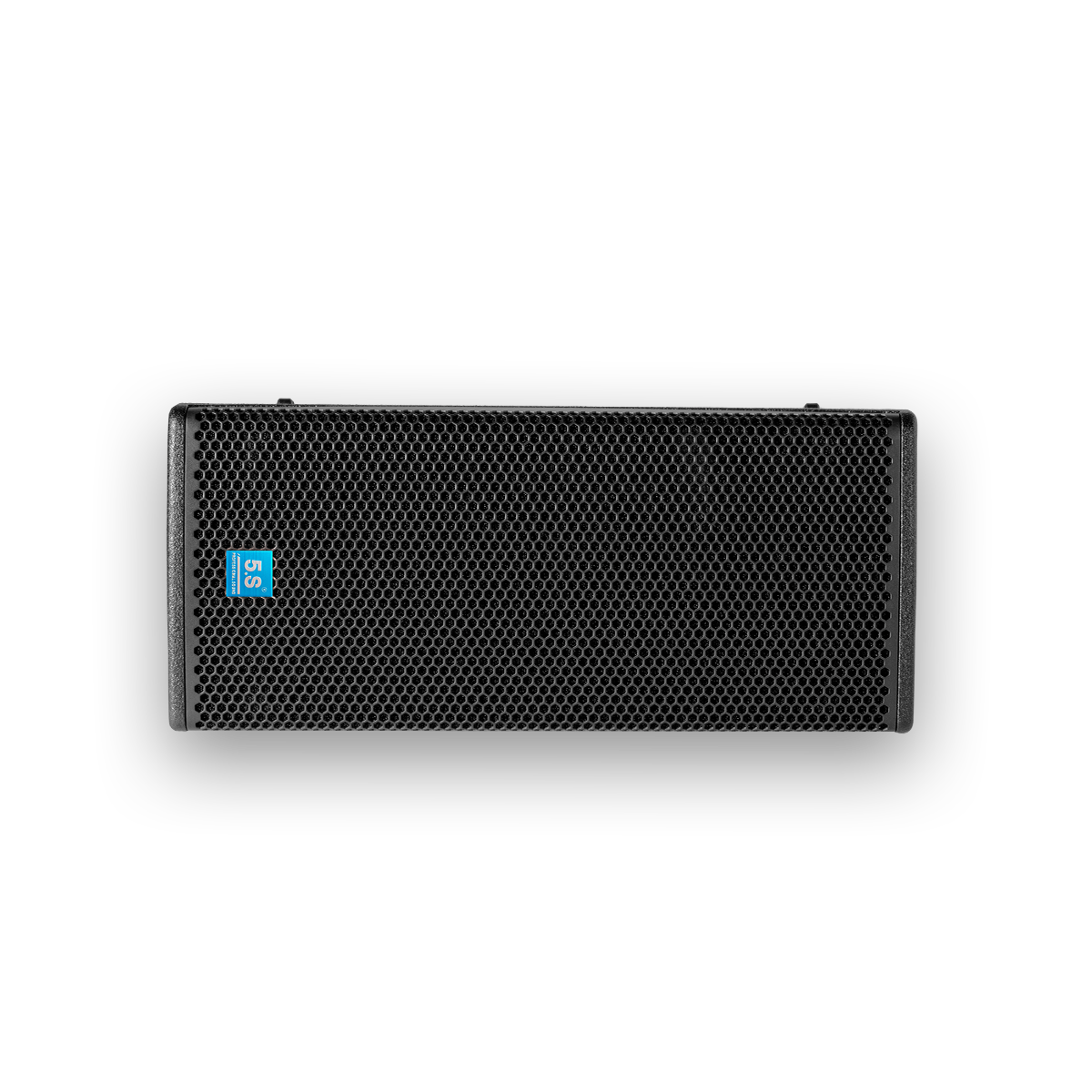

APO-210

Ultra-compact two-way array point source system

APO-210
APO-210
APO-210
APO-210
APO-210
APO-210
APO-210
APO-210
APO-210
APO-210
APO-210
APO-210
APO-210
APO-210
APO-210

Dual 10" neodymium magnet ultra-low distortion cone driver unit

  • The APO-210 is an ultra-compact dual 10" two-way array point source system that combines the versatility of point source systems with the "arrayability" of line array systems, creating a unique product category in the field of small to medium-sized venue sound reinforcement.
Contact us

Main Features

  • Rated Power: 1000W (AES)
  • Peak Power: 4000W (AES)
  • Input Connection: 2*NeutrikTM 2+2-
  • Sensitivity: 103dB
  • Maximum Sound Pressure Level: 137dB
  • Nominal Impedance: 8 Ohms
  • Dispersion: 90° Symmetrical
  • Net Weight: 27Kg
  • Dimensions: 674mm*291mm*492mm (W*D*H)

Product Description

The APO-210 is a compact dual 10” three-way array point source system that combines the ease of use of point source systems with the "arrayability" of line array systems, creating a unique product category in the field of medium-sized venue sound reinforcement.

The APO-210 is 's most flexible three-way system solution for medium-scale venue sound reinforcement, serving as a true hybrid of point source and line array.

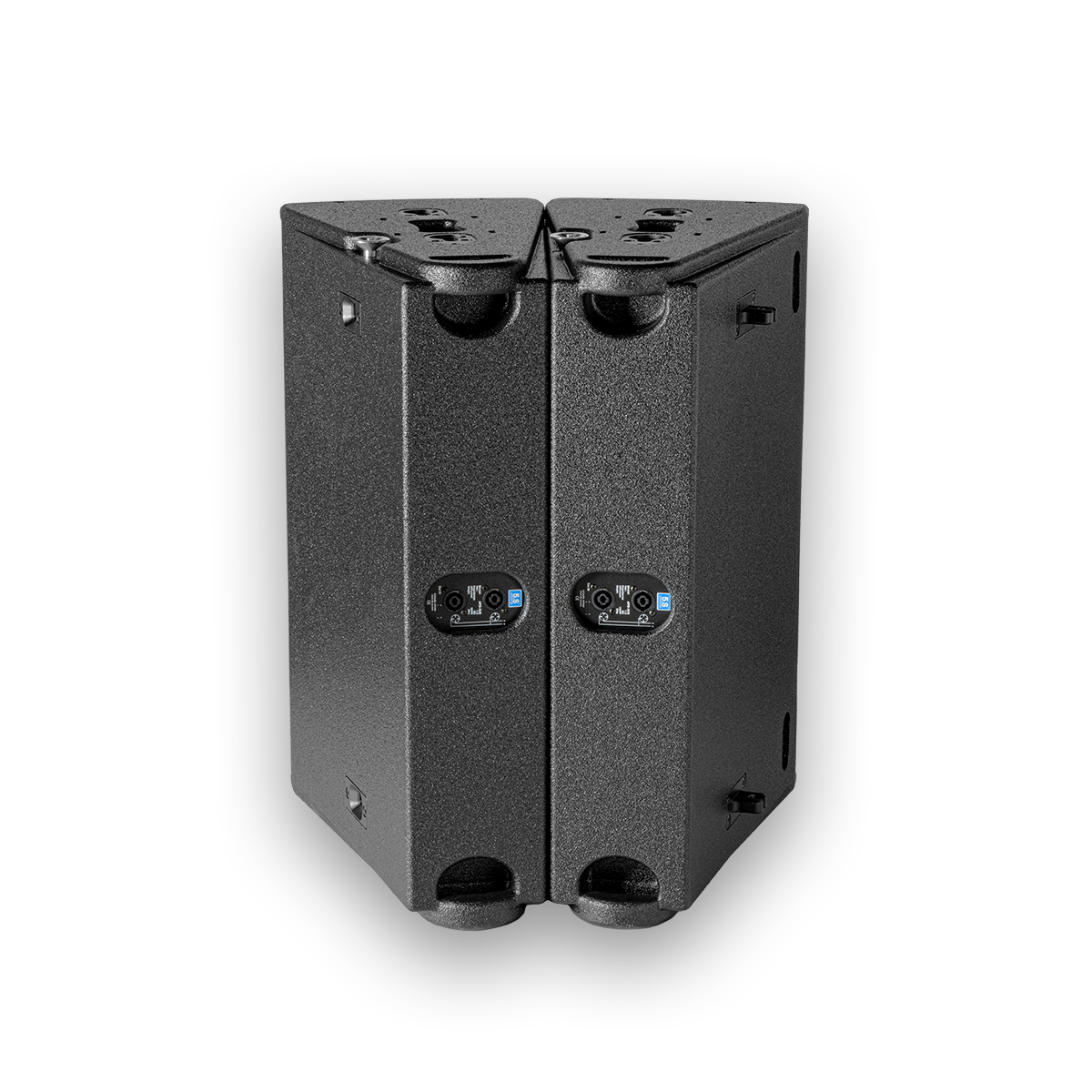

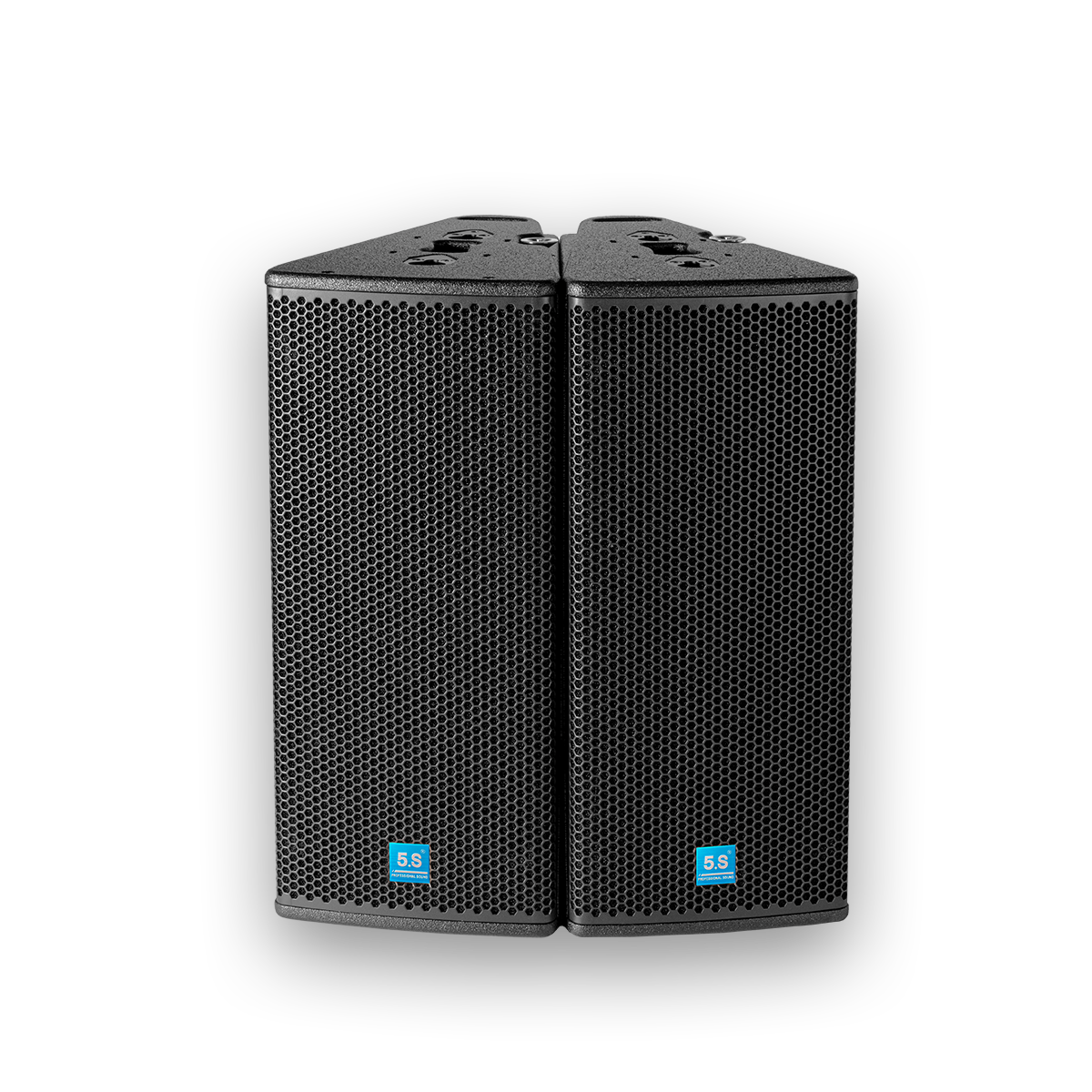

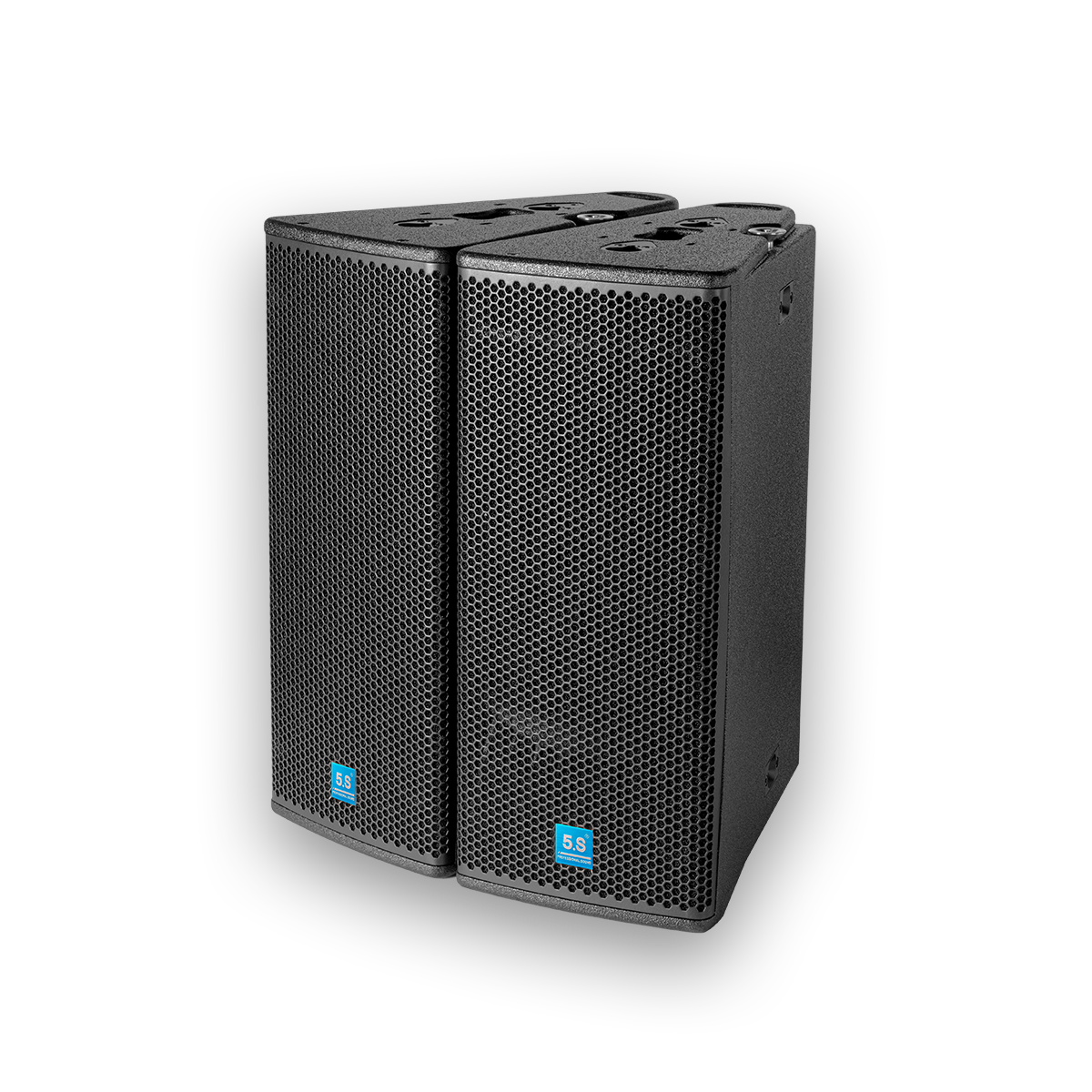

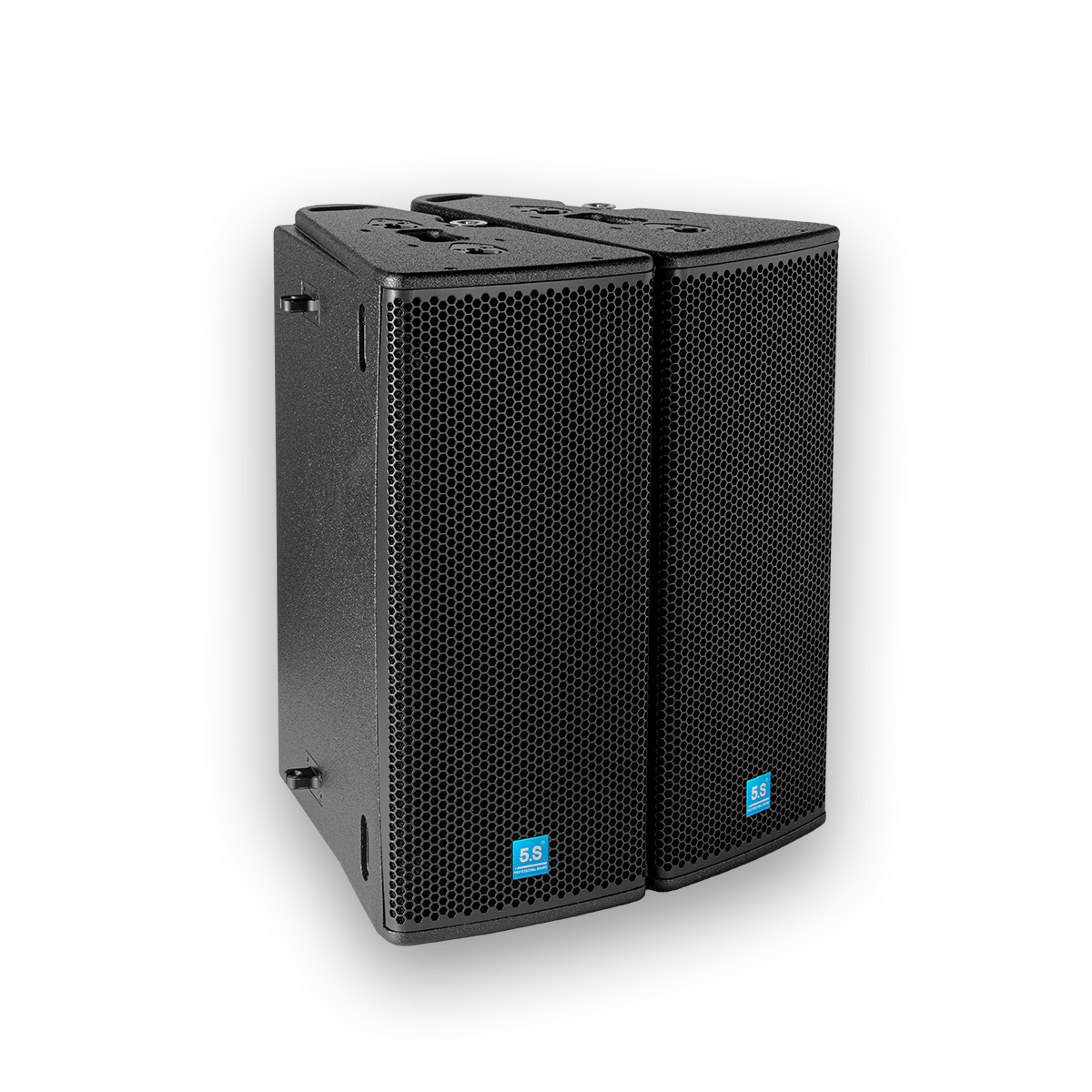

At the core of the APO-210 system lies a series of advanced technologies from Audio, among which the most prominent is perhaps the unique dual-diaphragm planar wave driver unit—similar in concept but slightly curved, with a wavefront that has a subtle arc. This ultimately translates to extremely low distortion, eliminating the need for reshaping and delivering exceptional sonic accuracy. As a result, when more APO-210 units are stacked together, they perform like a point source system without any interference.

Technical Specifications


Type: Two-way Array Point Source System
Frequency Response: 50Hz-20kHz
Power: 1000W
Peak Power: 4000W
Impedance: 8Ω
Coverage Angle: 90° Symmetrical
Sensitivity: 103dB
Maximum SPL: 137dB
Crossover Frequency: 500Hz; 6.3kHz Optional (Internal/External Crossover)
Input Connector: 2*NeutrikTM 2+2-
Low Frequency: 10"*2 Woofer with Aerospace-grade Neodymium Magnet, 3"(75mm) Voice Coil, Rated Power: 1000W (AES)
High Frequency: 1.5" Throat, Imported Neodymium Driver, 1.75"(44mm) Voice Coil, Rated Power: 80W (AES); Midrange Unit: 3.5"(90mm) 150W (AES)
Enclosure Material: Russian Birch Plywood + Integrated Aluminum Profile
Enclosure Finish: Black Polyurea Paint
Net Weight: 27Kg
Dimensions: 674mm*291mm*492mm (W*D*H)
