JG-2010

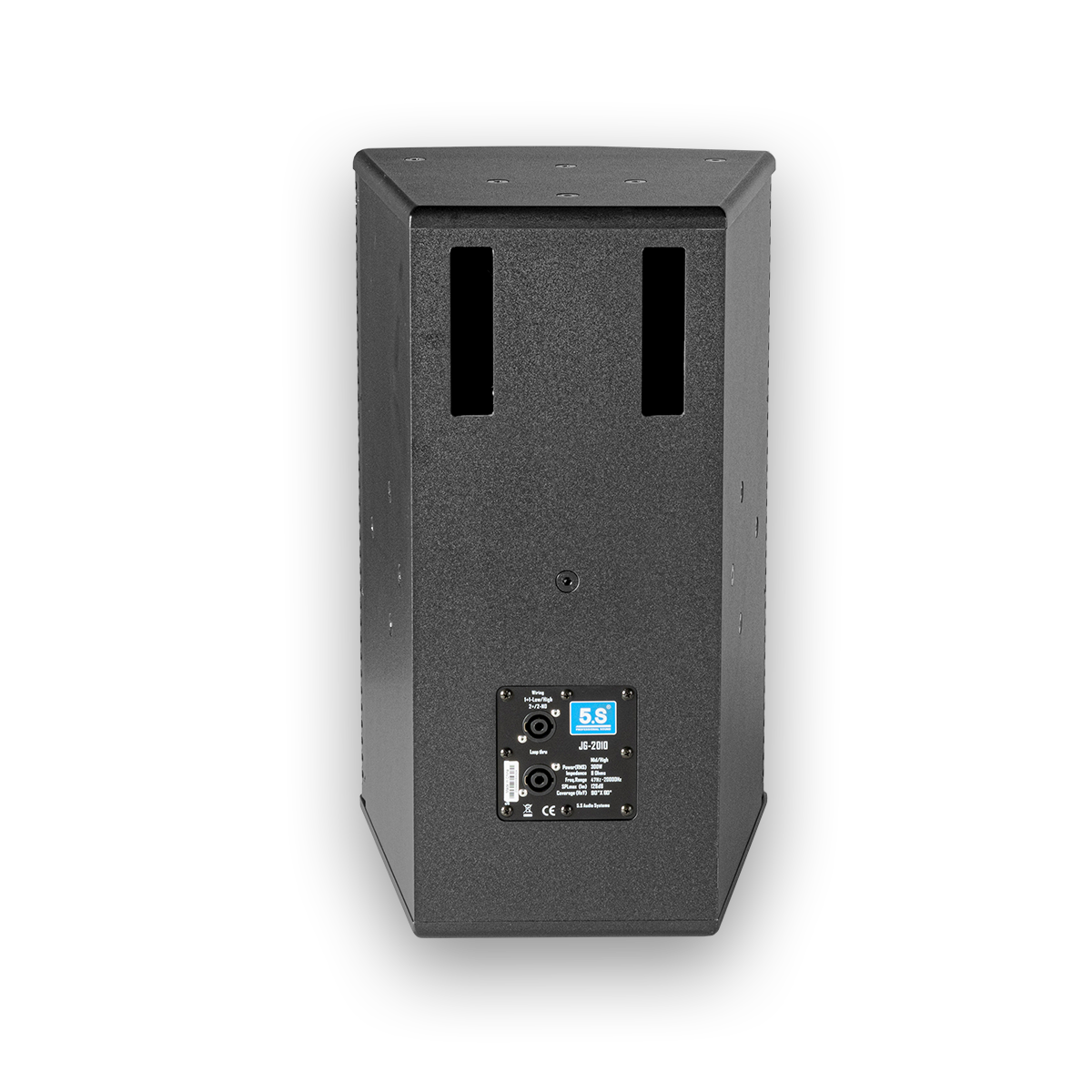

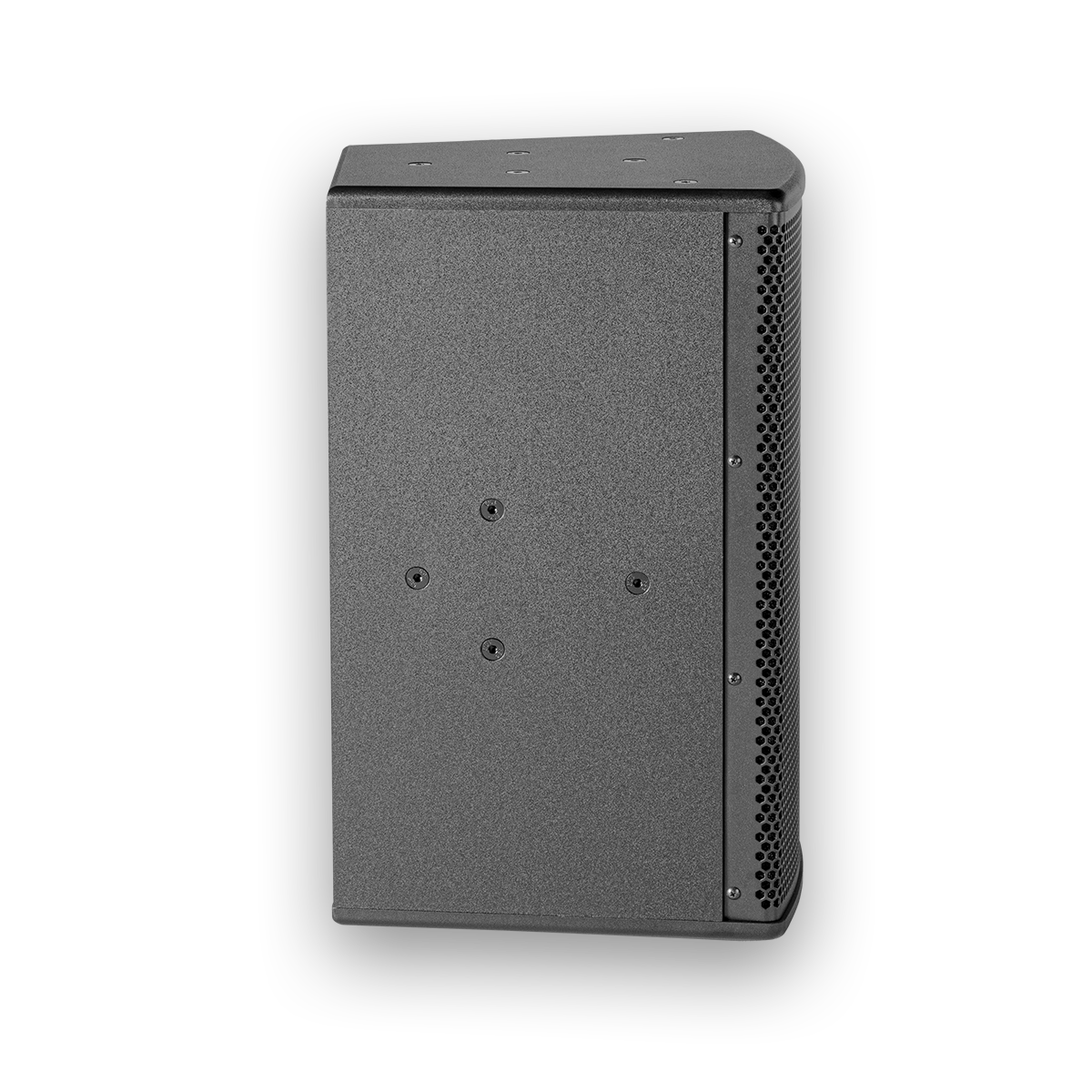

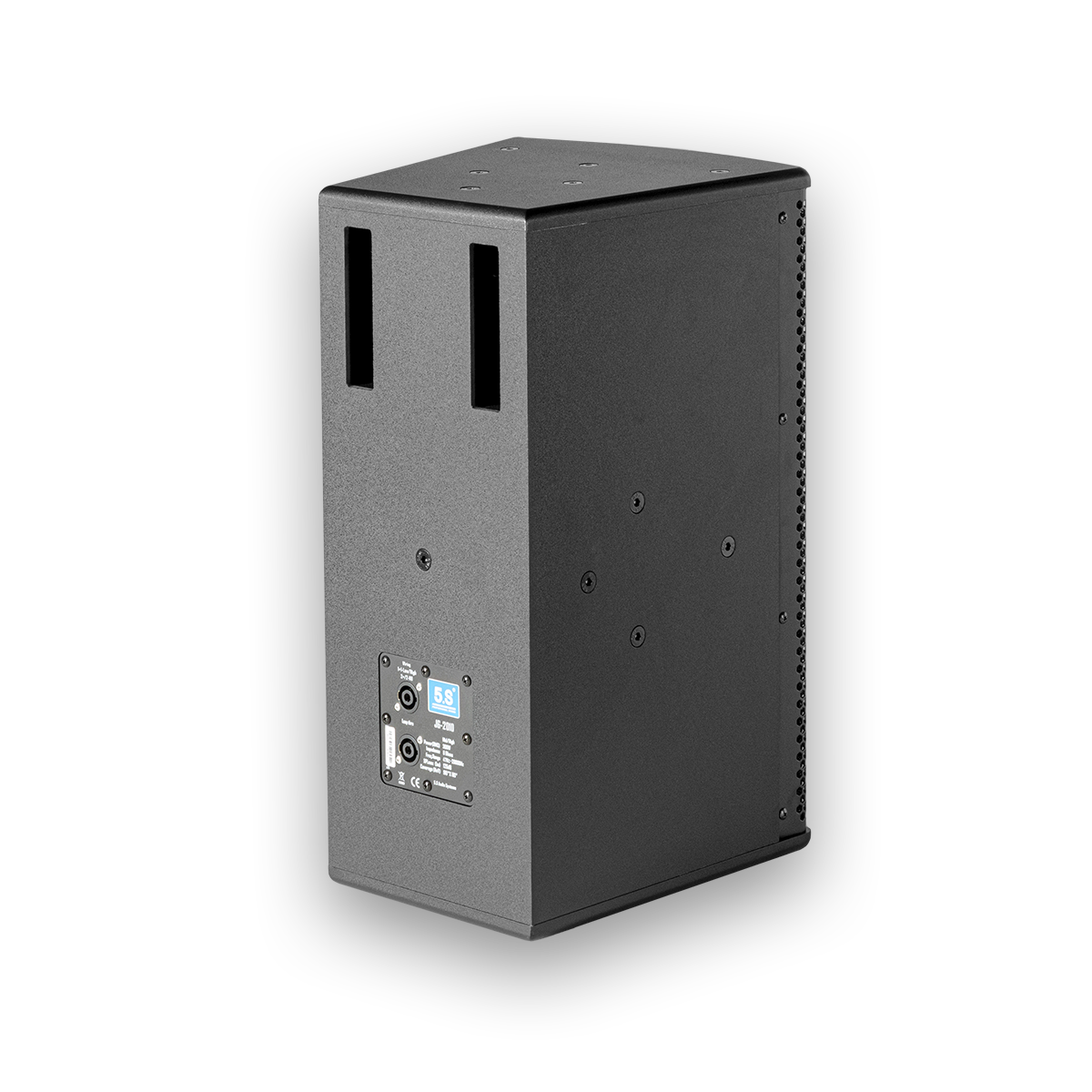

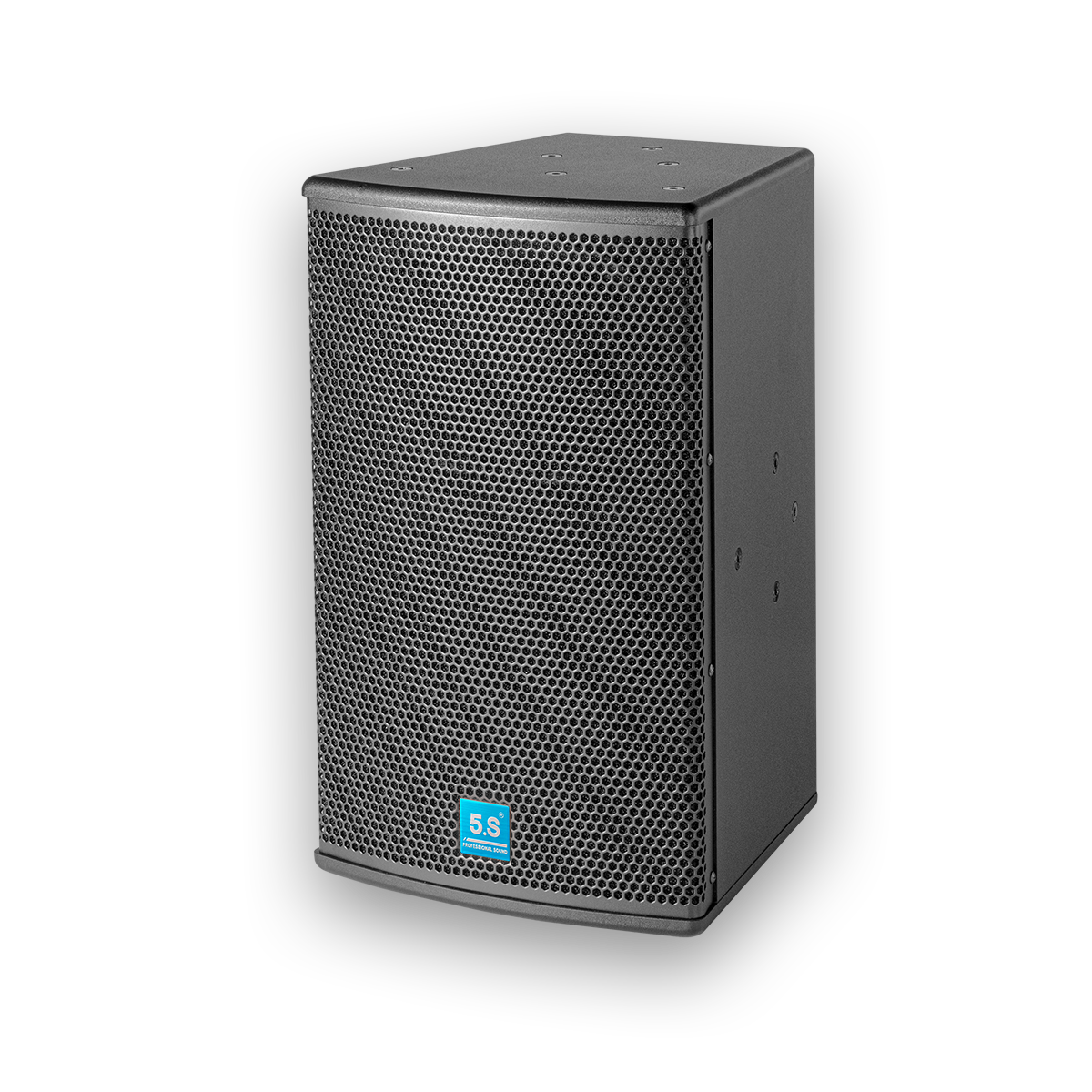

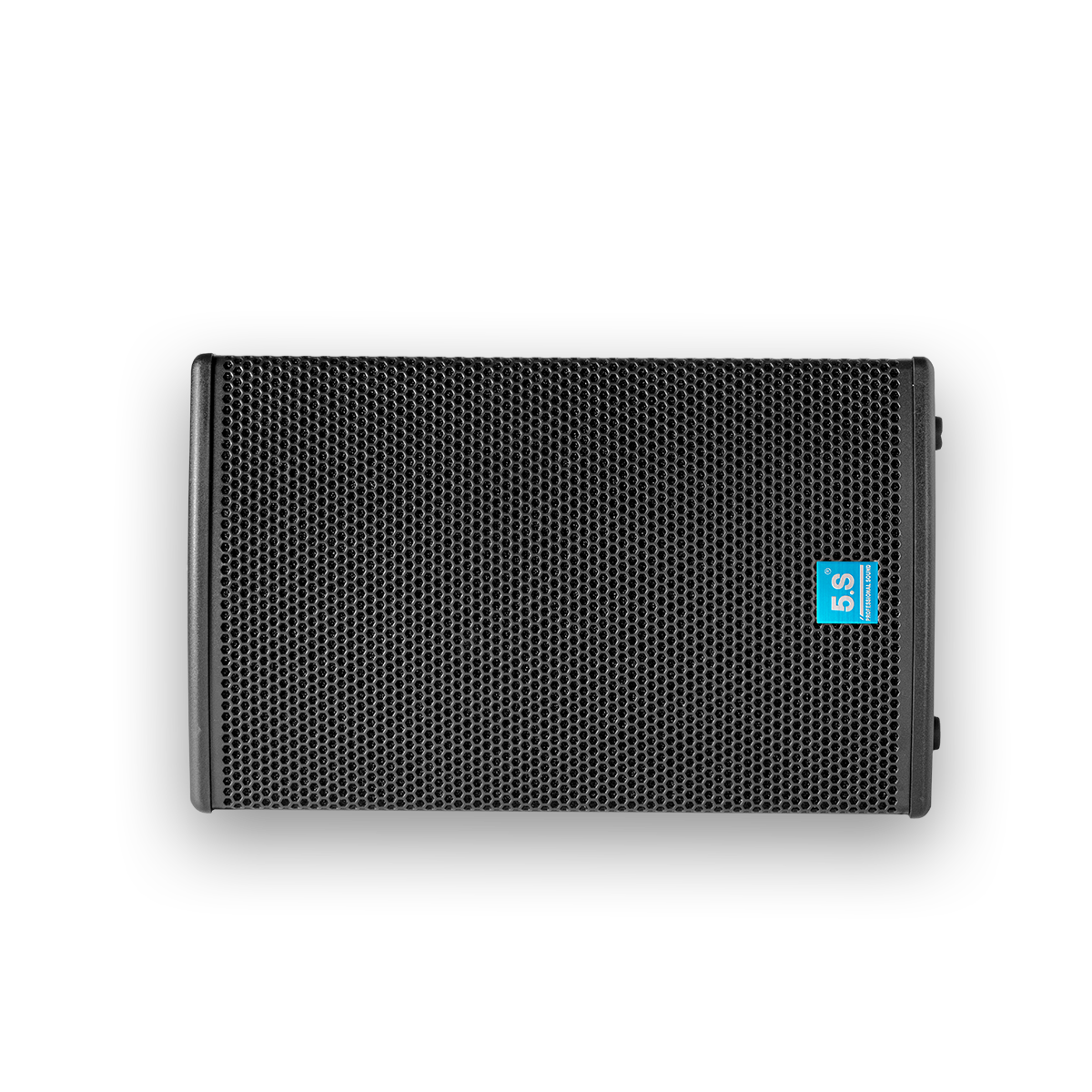

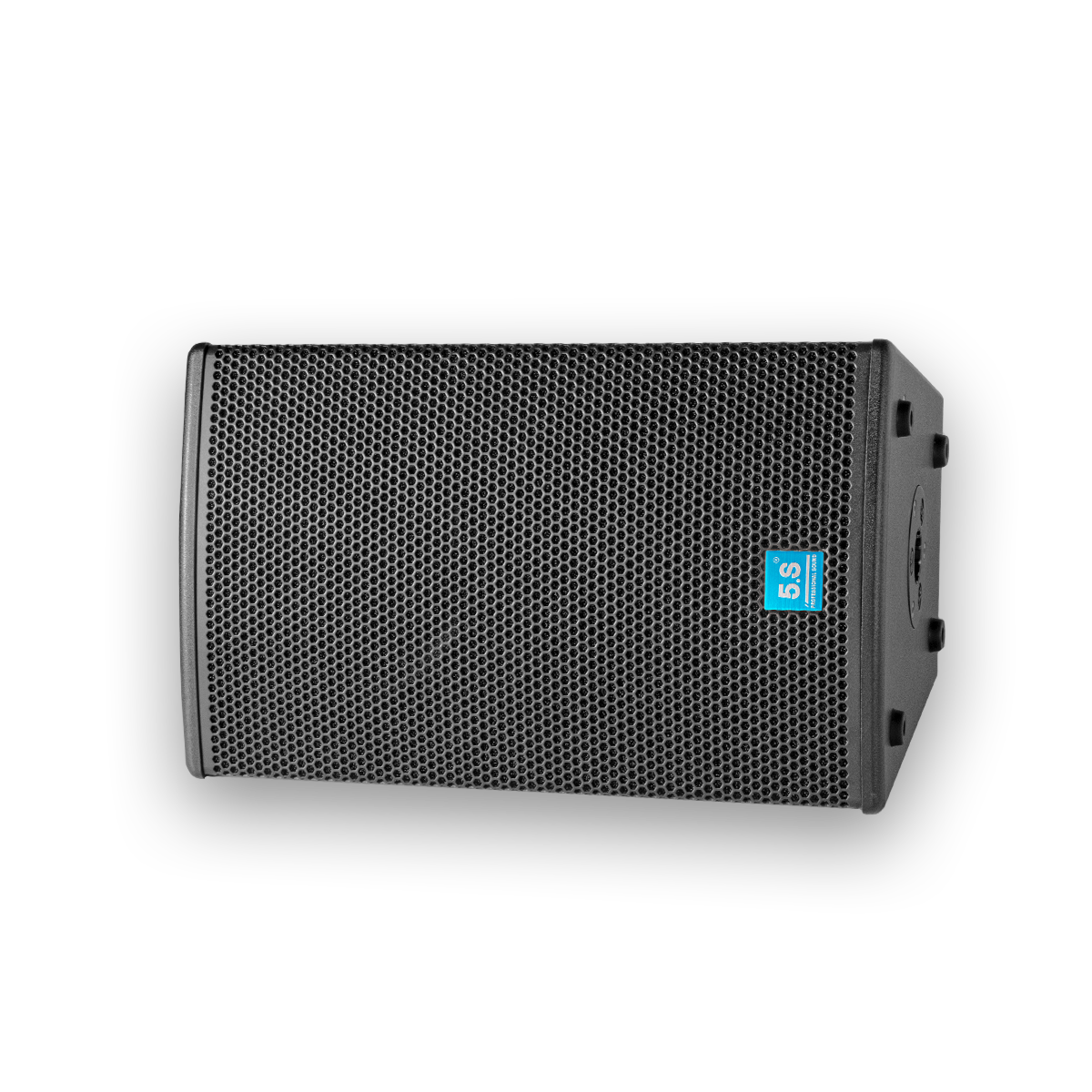

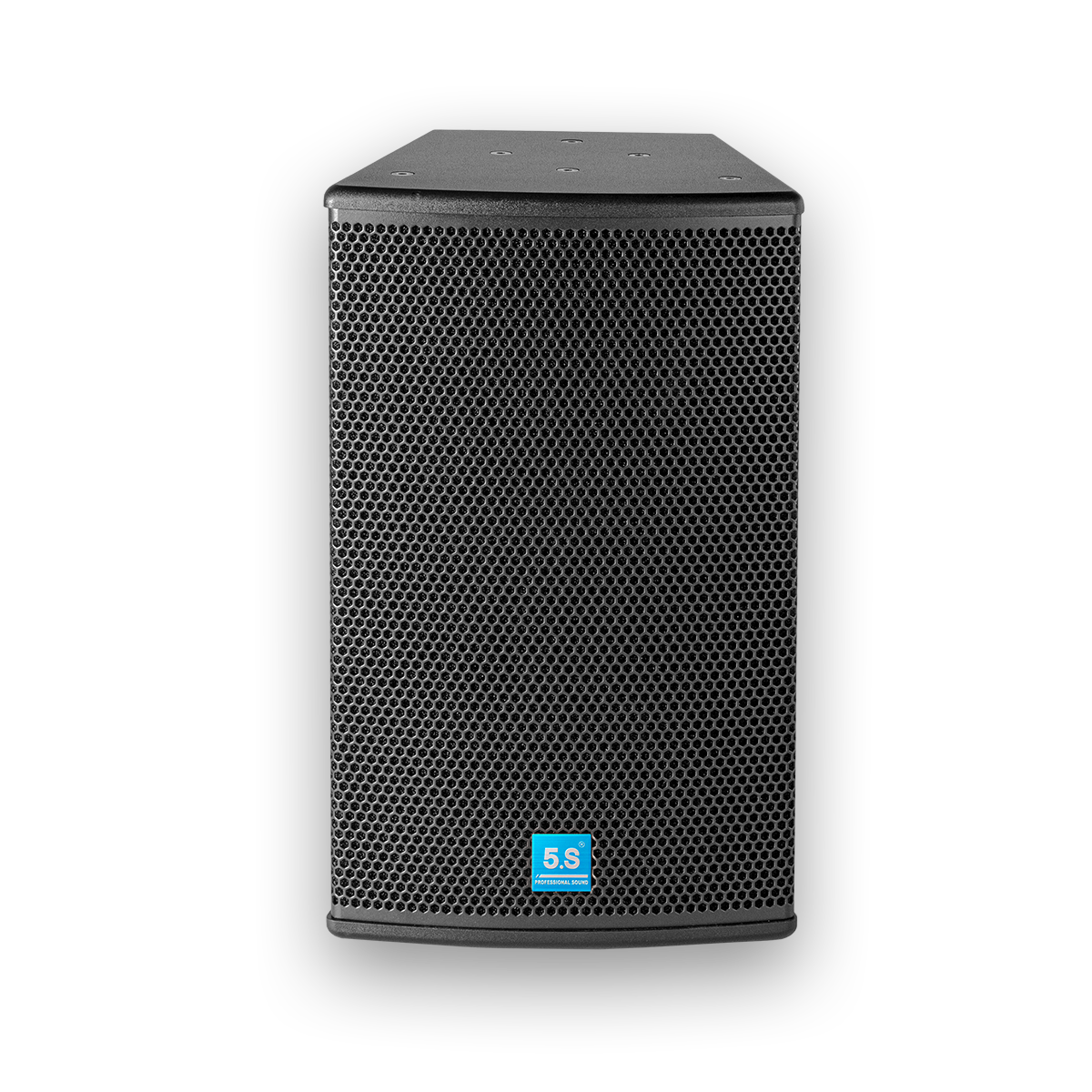

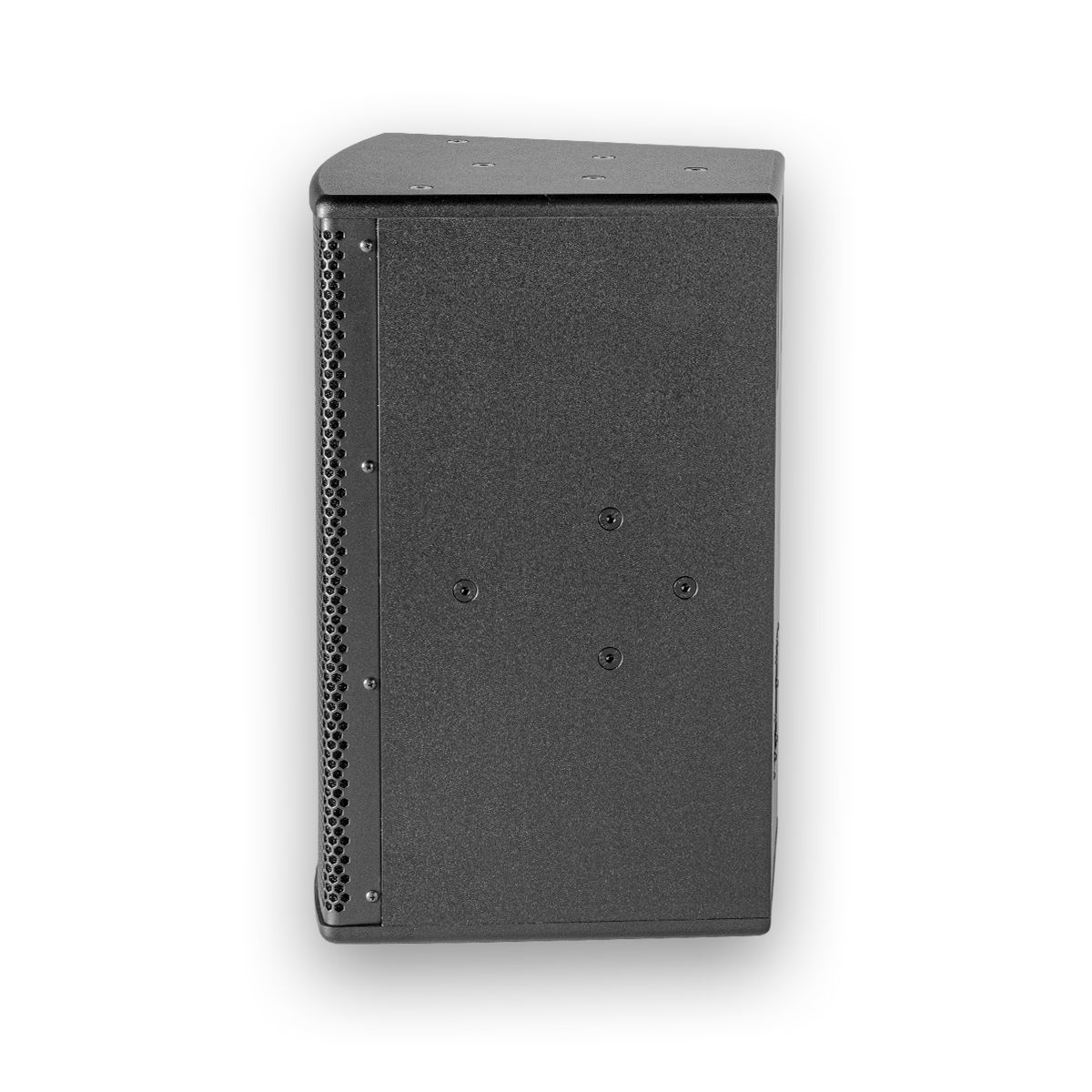

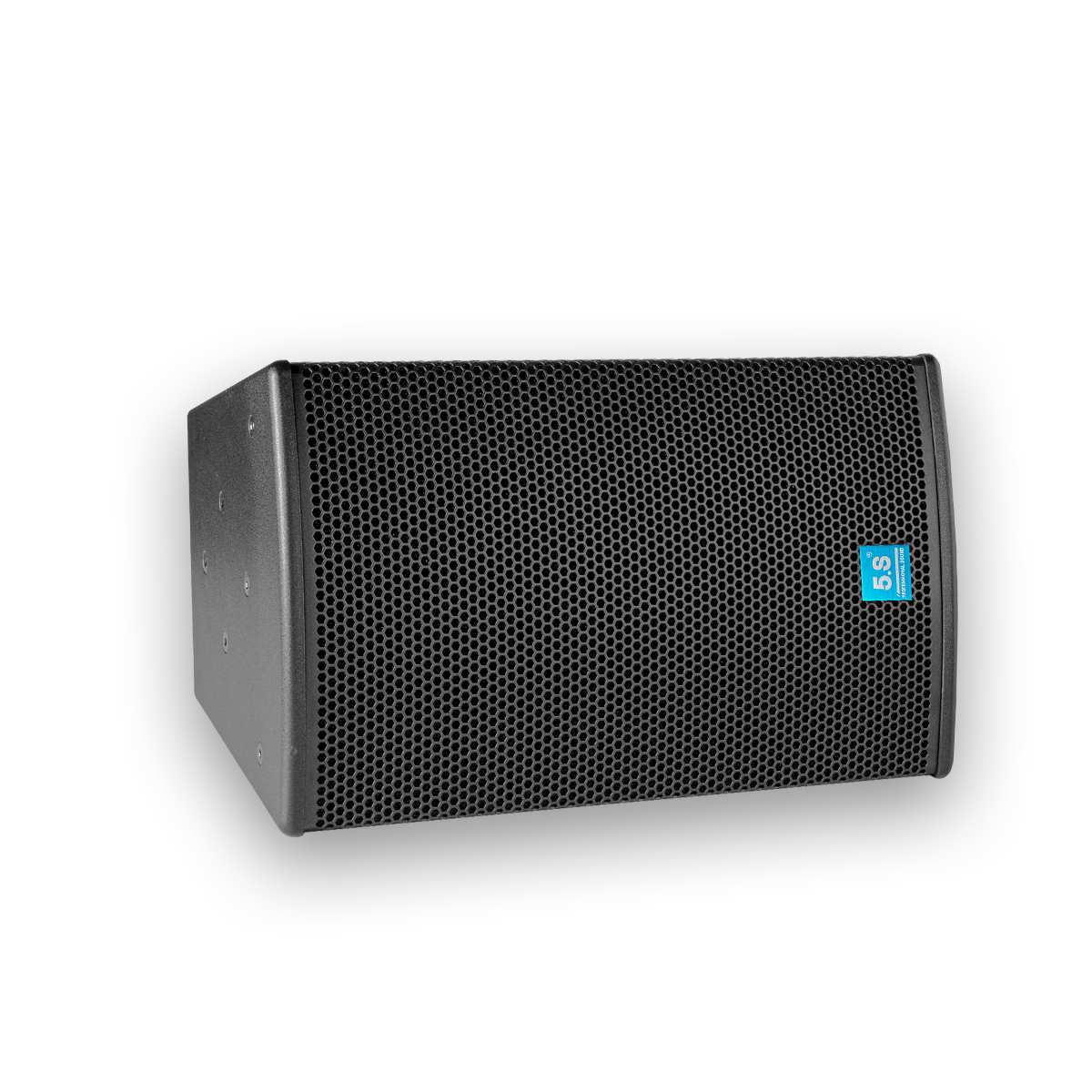

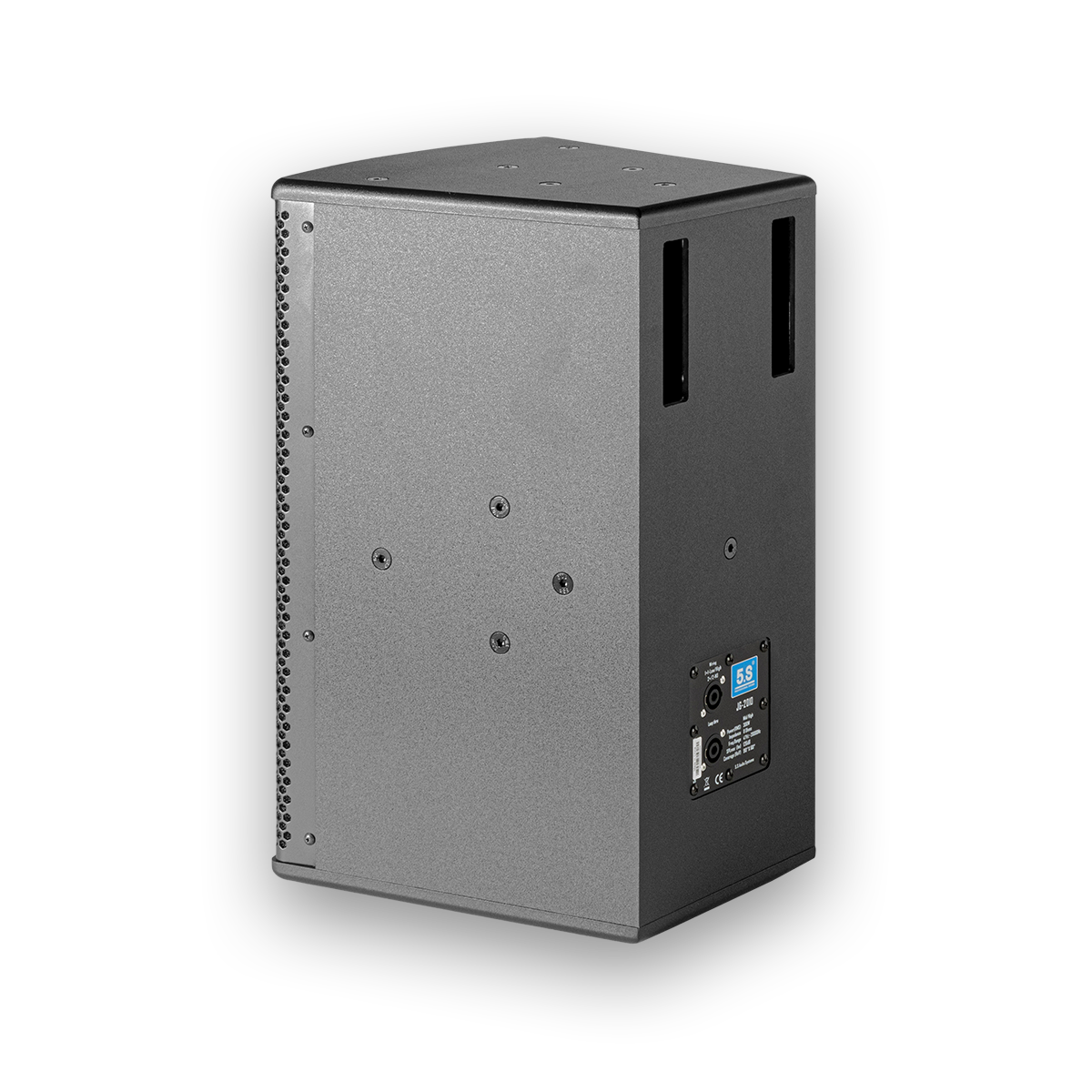

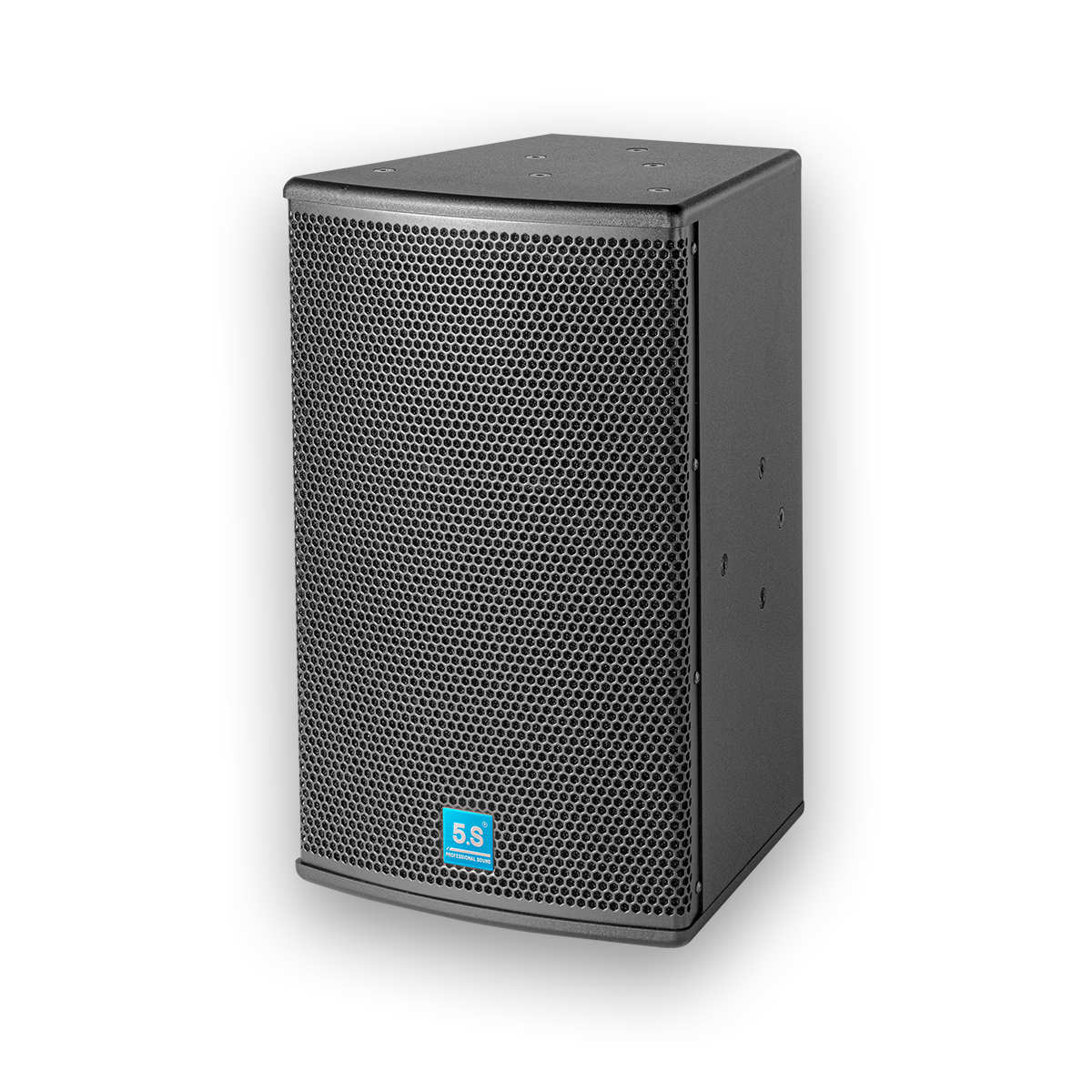

Single 10" Two-Way Multi-Purpose Full-Range Speaker

JG-2010
JG-2010
JG-2010
JG-2010
JG-2010
JG-2010
JG-2010
JG-2010
JG-2010
JG-2010
JG-2010

10" High-Power, Ultra-Low Distortion Bass

  • The Audio JG-2010 is a 2-way multi-purpose full-range speaker system with a balanced rear-ported enclosure. It features a built-in 10" high-power, ultra-low distortion woofer and a 90°x60° PU horn with a 1" throat professional tweeter driver.
Contact us

Main Features

  • Rated Power: 300W (AES)
  • Peak Power: 1200W (AES)
  • Input Connection: 1×NeutrikTM 1+ 1-
  • Sensitivity: 94dB
  • Maximum Sound Pressure Level: 123dB
  • Nominal Impedance: 8Ω
  • Coverage Angle: 90°×60°
  • Net Weight: 16.5Kg
  • Enclosure Dimensions: 325mm×535mm×320mm (W×D×H)

Product Description

Audio JG-2010 is a 2-way multi-purpose full-range speaker system featuring a balanced rear-ported enclosure, equipped with a 10" high-power, ultra-low distortion woofer and a 90°x60° PU horn with a 1" throat professional tweeter driver. As a 2-way system, the JG-2010 can be driven directly or paired with a bi-amplification system for superior high-output performance. It is ideal for fixed installations, high-end KTVs, nightclubs, mid/near-field sound reinforcement, or private clubs, providing an exceptional audio solution.

Technical Specifications


Type: 2-Way Full-Range Multi-Purpose Speaker System
Frequency Response: 44Hz–20kHz
Power: 300W
Peak Power: 1200W
Impedance: 8Ω
Coverage Angle: 90° × 60°
Sensitivity: 94dB
Maximum SPL: 123dB
Crossover Point: 1.5kHz Built-in Crossover
Input Connector: 1×NeutrikTM 1+1-
Low-Frequency: 10" Woofer unit with a custom-made bass driver from a Sino-British joint venture, 2.55" (65mm) voice coil, rated power: 300W (AES)
High-Frequency: 1" throat, compression driver with a custom-made tweeter membrane from a Sino-British joint venture, 1.75" (44mm) voice coil, rated power: 80W (AES)
Enclosure Material: 15mm High-Density MDF
Enclosure Finish: Environmentally Friendly Water-Based Paint
Net Weight: 16.5Kg
Dimensions: 325mm×535mm×320mm (W×D×H)
