Product Description

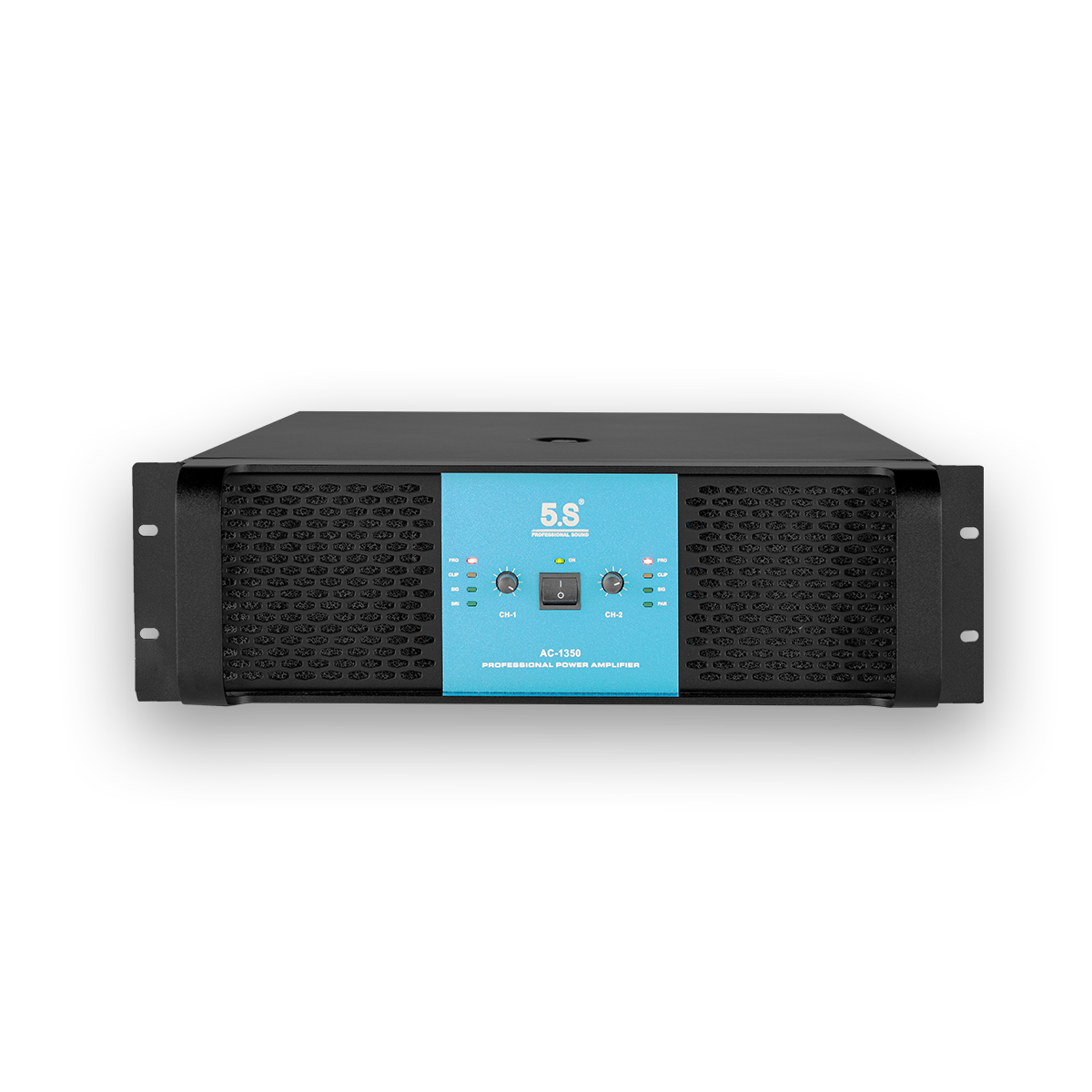

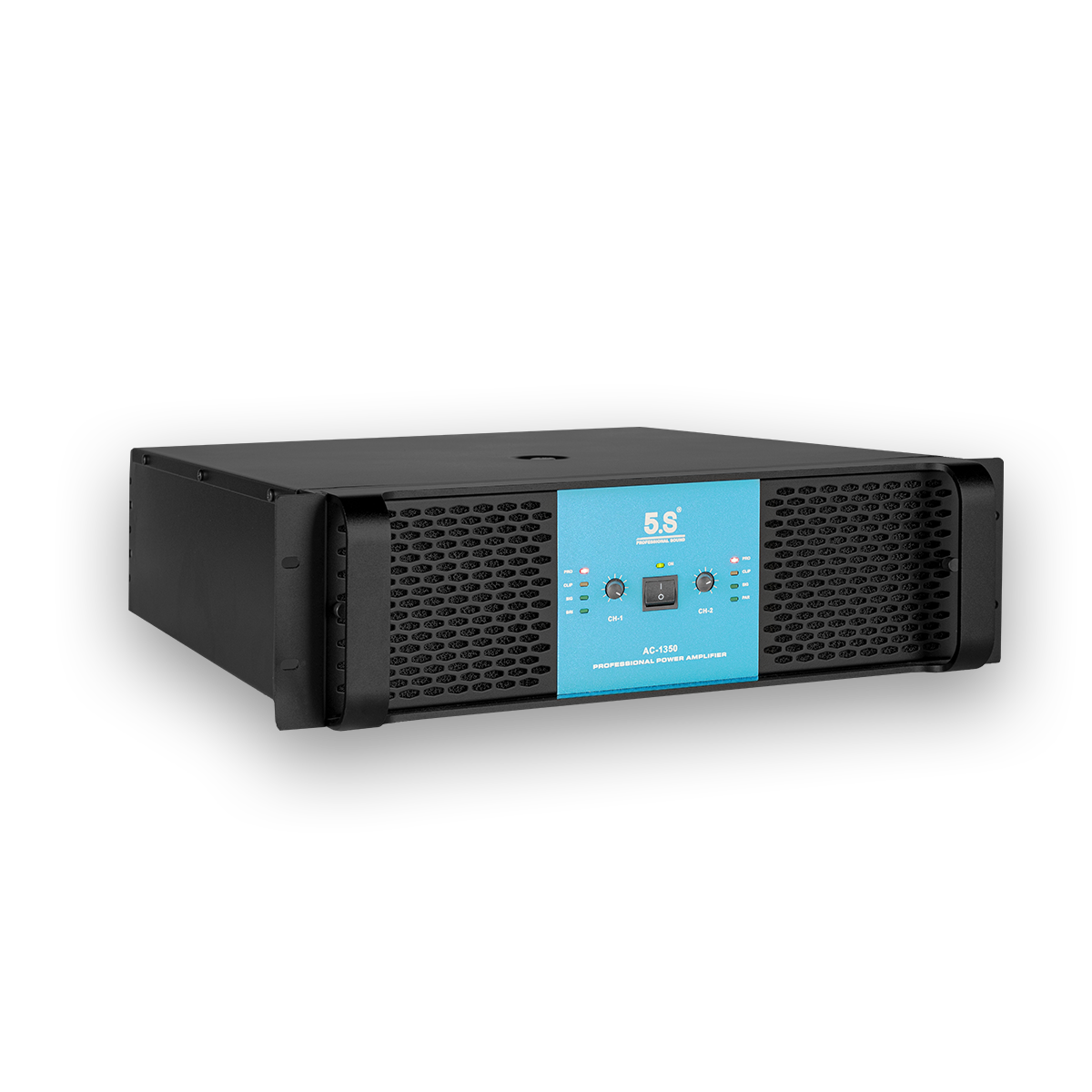

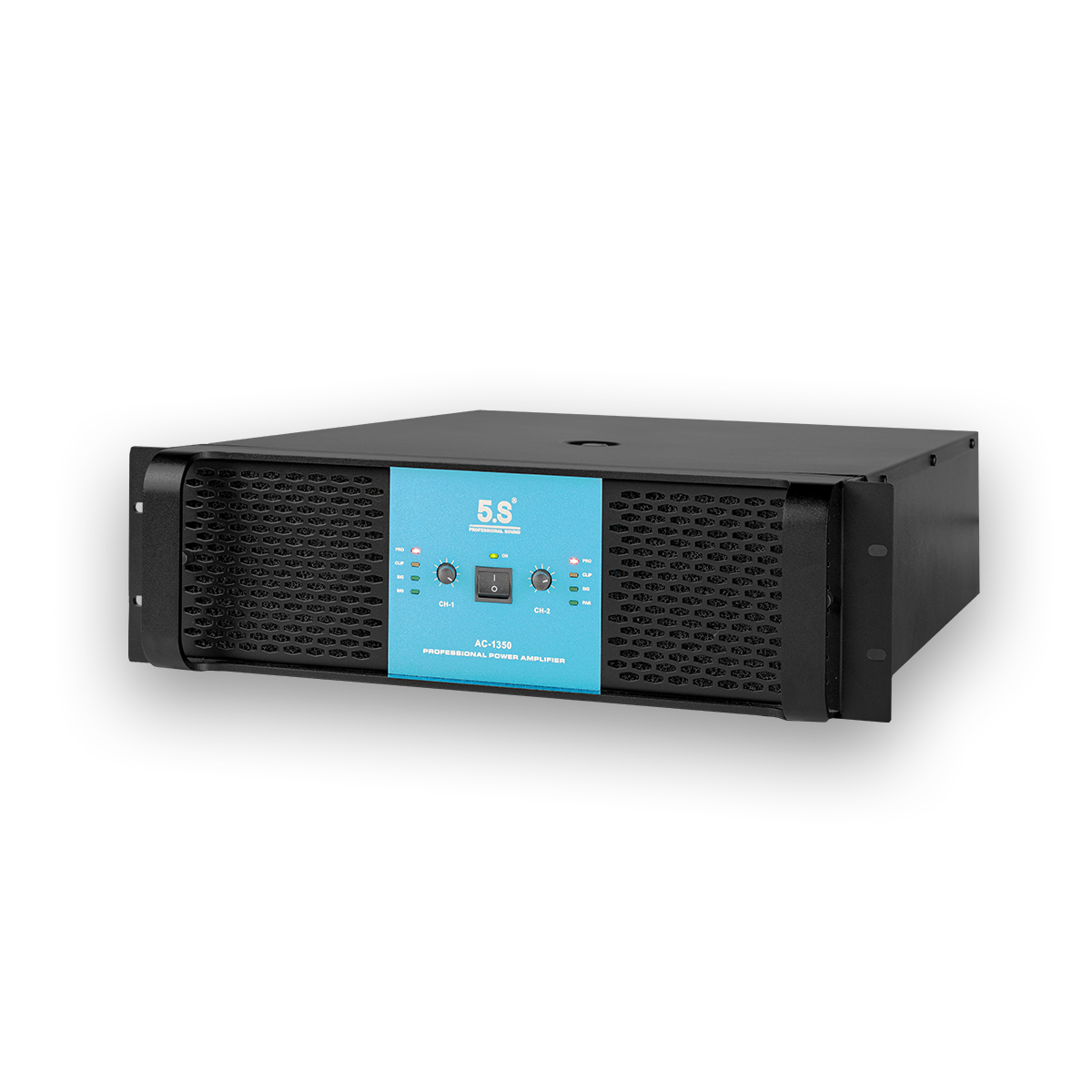

The AC1350 series power amplifier is a 3U high-performance, high-efficiency, and high-quality two-channel power amplifier. The AC series power amplifiers not only feature a unique exterior design but are also built to be durable and robust.
| Model: | AC-1350 |
| Output Power: | Stereo 8Ω: 2X1350W, 4Ω: 2X2000W, Bridged 8Ω: 4000W |
| Frequency Response: | 20Hz-20kHz, ±0.5dB |

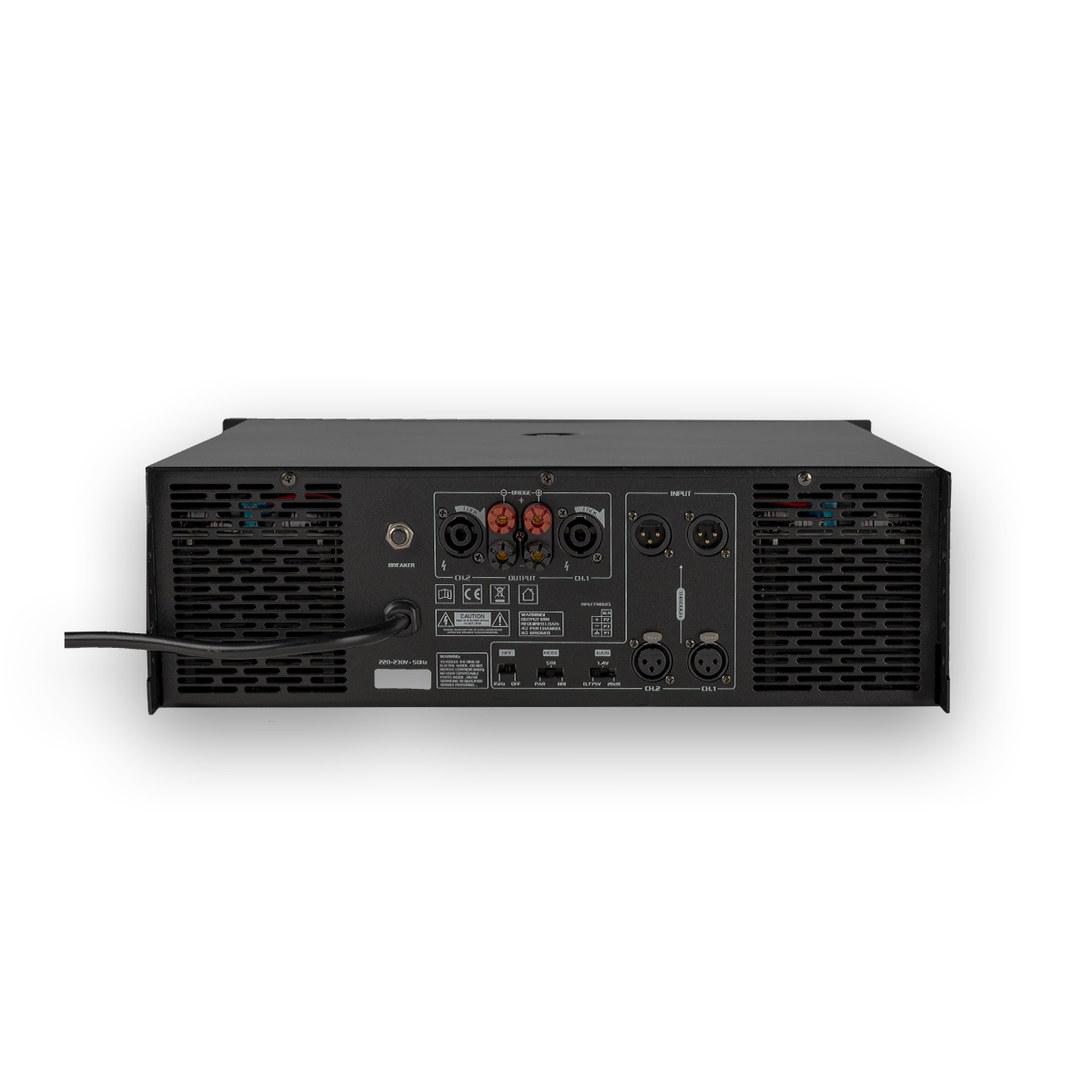

| Output Connectors: | 2 Speakon for Stereo & Bridge Output |
| Input Sensitivity: | 0.77V |
| Balanced Input Impedance: | 20kΩ/Balanced, 10kΩ/Unbalanced |
| Signal-to-Noise Ratio: | ≥95dB |
| Total Harmonic Distortion: | ≤0.03% |
| Separation at Rated Power (8Ω, 1kHz): | >70 dB |
| Slew Rate: | 15V/μS |
| Protection: | Soft Start, Short Circuit, Limiter, DC Fault, AC Line Fuse, Thermal Cut |
| Cooling System: | Dual Fans |
| Power Supply: | AC: 220-230V, 50Hz/60Hz |
| Net Weight: | 34.4Kg |
| Dimensions: | 482mm * 531.4mm * 132mm (W*D*H) |
