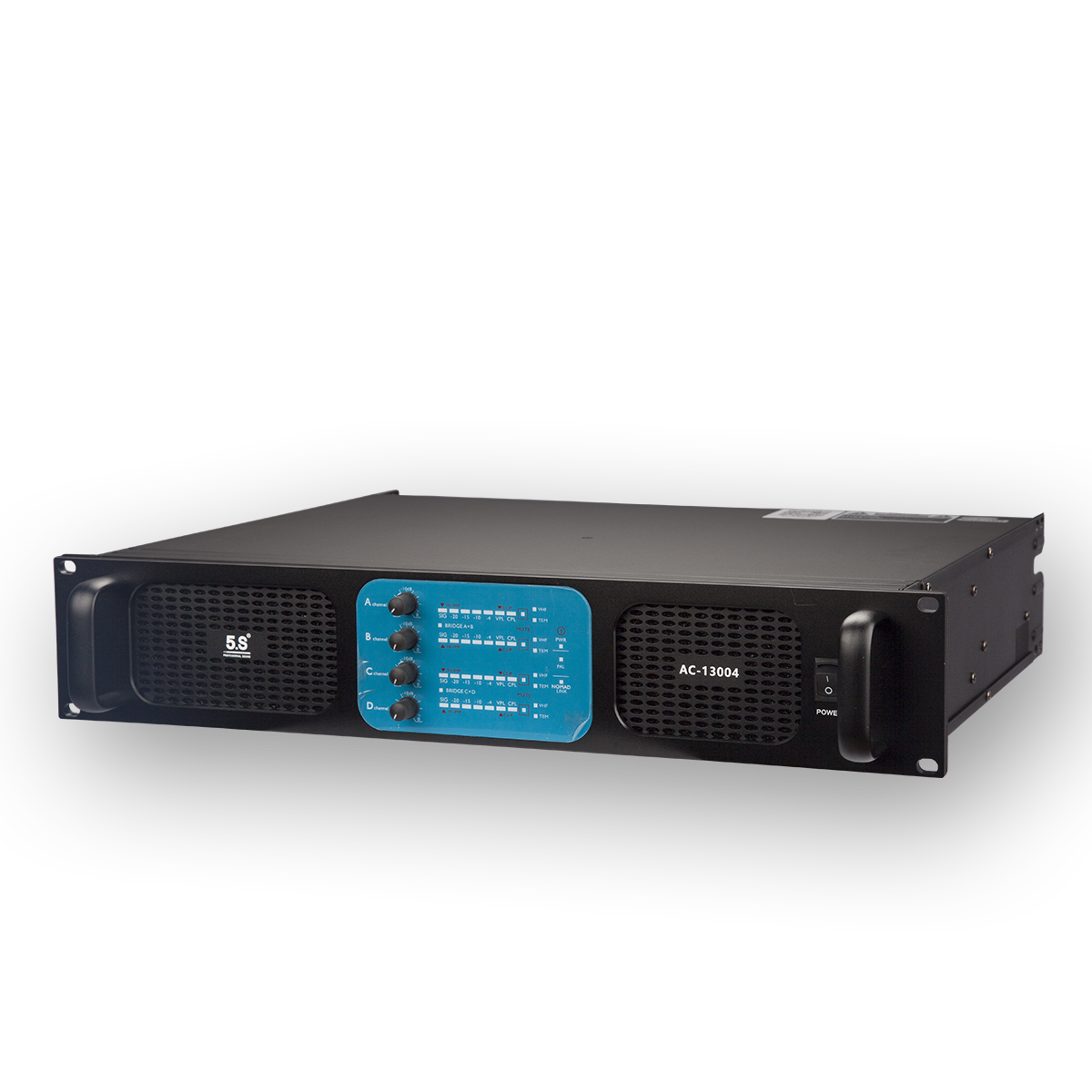

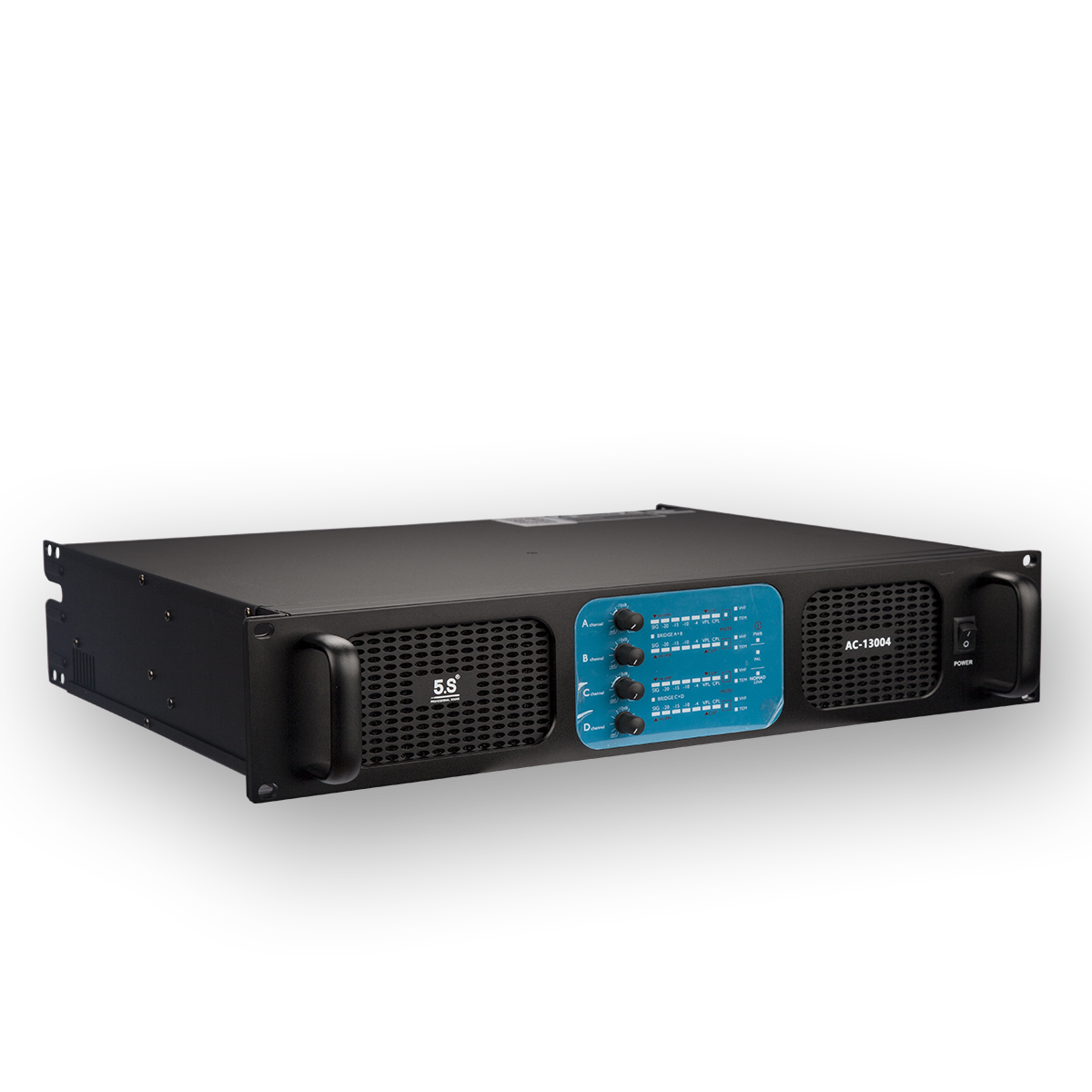

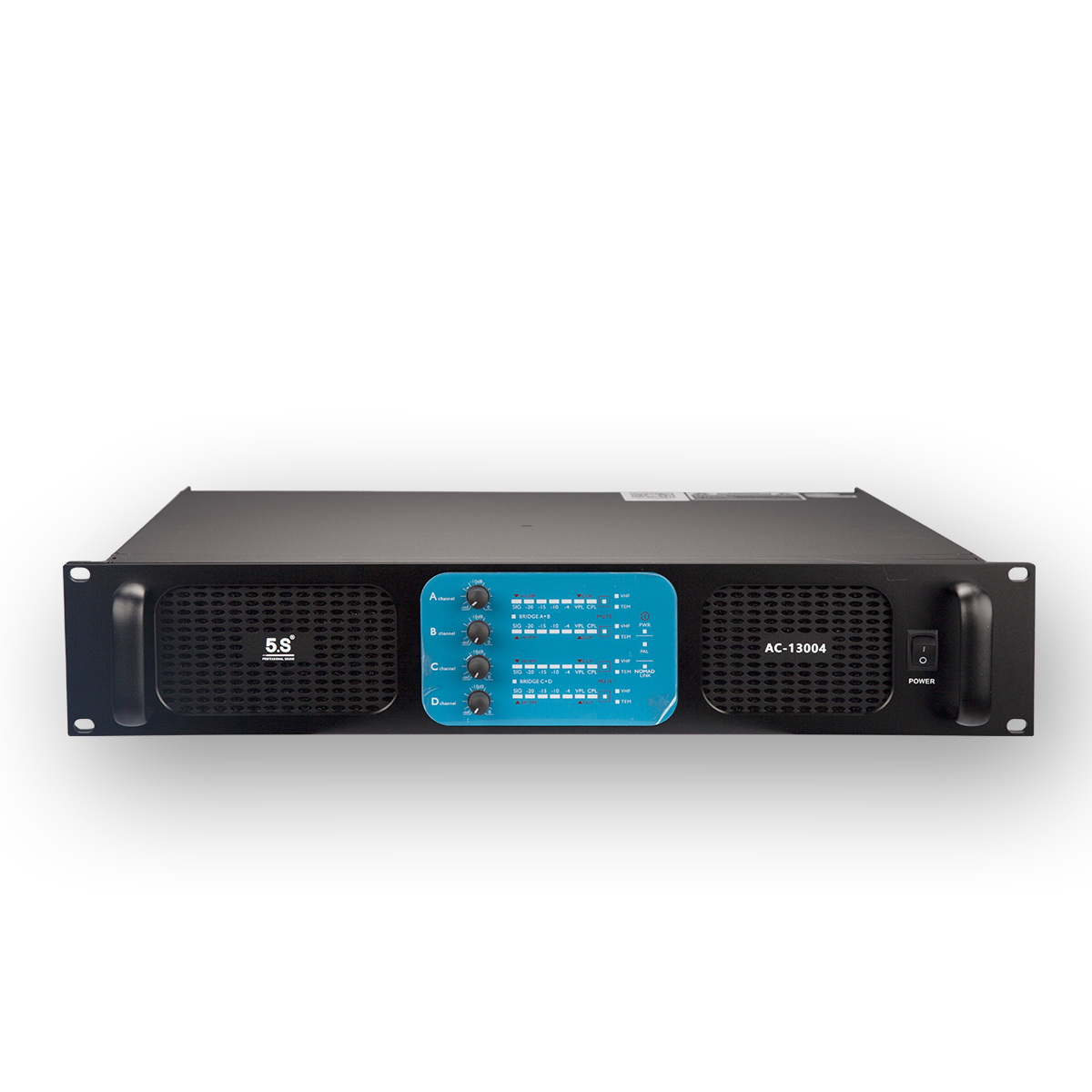

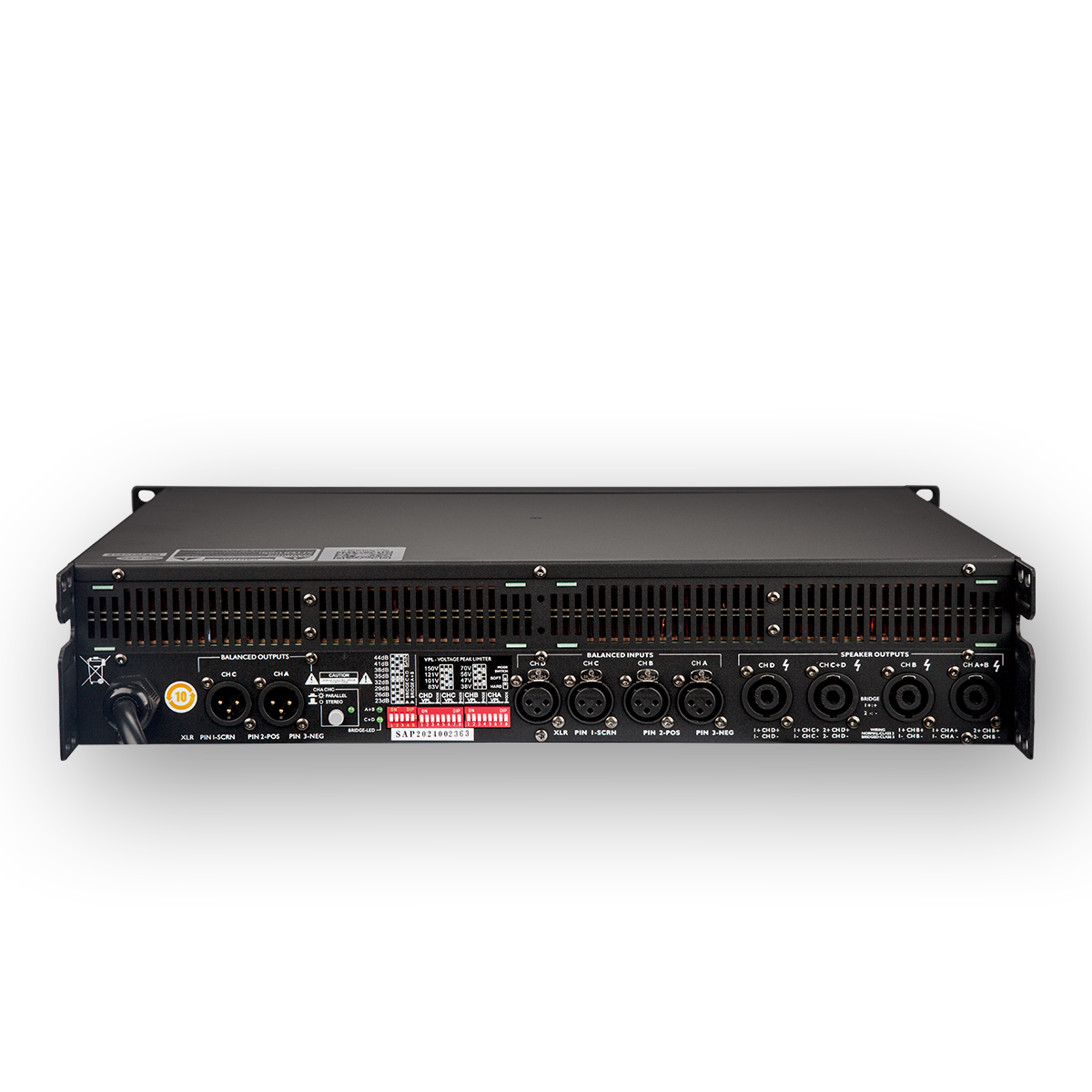

AC-13004

Four-channel power amplifier

AC-13004
AC-13004
AC-13004
AC-13004

Using original imported power tubes, filter capacitors, audio capacitors, and diodes

  • The AC series power amplifier features a unique exterior design, robust and durable construction, and low noise. It delivers outstanding performance in terms of power output, efficiency, and sound quality, making it ideally suited for high-demand fixed installations and mobile live performances.
Contact us

Main Features

  • Output Power: 8Ω: 4×1300W Stereo, 4Ω: 4×2200W, Bridged 8Ω: 2×4800W
  • Frequency Response: 6.8Hz–34kHz, +0/-1.5dB
  • Output Connector: Speakon
  • Input Sensitivity: 26dB/29dB/32dB/35dB/38dB/41dB/44dB
  • Signal-to-Noise Ratio: ≥112dBA
  • THD (Total Harmonic Distortion): <0.05%
  • Damping Factor: ≥2000
  • Input Impedance (Balanced/Unbalanced): 20KΩ
  • Output Type: FTD
  • Net Weight: 15.5kg
  • Dimensions: 483mm × 415mm × 90mm (W × D × H)

Product Description

This series of machines adopts original imported power tubes, filter capacitors, audio capacitors, diodes, etc., and features a unique imported power supply design, ensuring pure sound and powerful performance, defining the AC-13004/AC-2500.
Model: AC-13004
Output Power: Stereo 8Ω: 4×1300W | Stereo 4Ω: 4×2200W | Bridged 8Ω: 2×4800W
Frequency Response: 6.8Hz–34kHz, +0/–1.5dB
Output Connector: Speakon
Input Sensitivity:

26dB / 29dB / 32dB / 35dB / 38dB / 41dB / 44dB

Balanced Input Impedance: 20KΩ
Signal-to-Noise Ratio: ≥112dBA
THD: ≤0.05%
Damping Factor: ≥2000
Slew Rate: 15V/μs
Protection: Soft Start, Short Circuit, Limiter, DC Fault, AC Line Fuse, Thermal Cut
Power Supply: AC: 220–230V, 50Hz/60Hz
Gross Weight: 15.5kg
Dimensions: 483mm × 415mm × 90mm (W × D × H)
