BL-6010

Single 10" Two-Way Multi-Purpose Full-Range Speaker

BL-6010
BL-6010
BL-6010
BL-6010
BL-6010
BL-6010
BL-6010
BL-6010
BL-6010
BL-6010
BL-6010

10" High-Power, Ultra-Low Distortion Bass

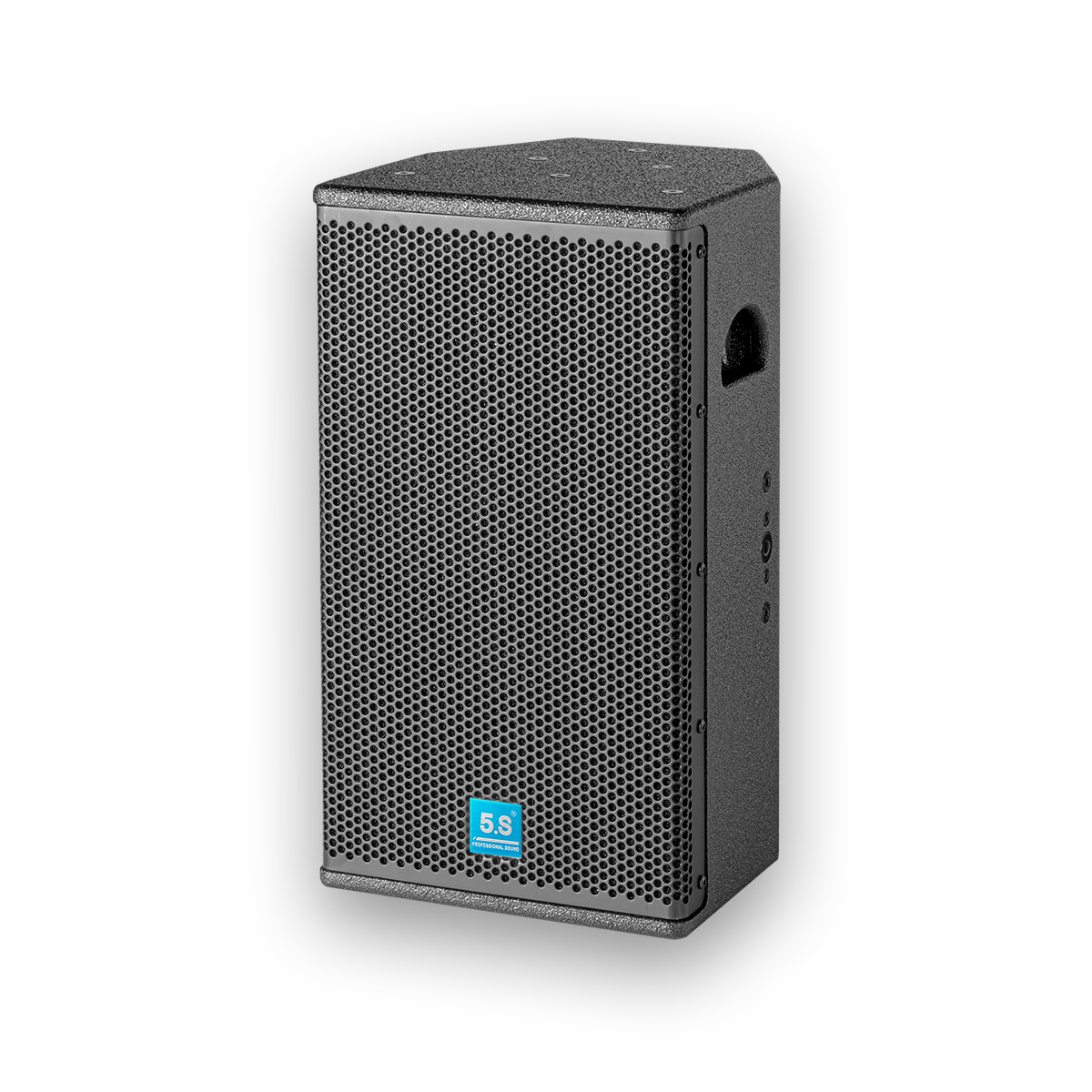

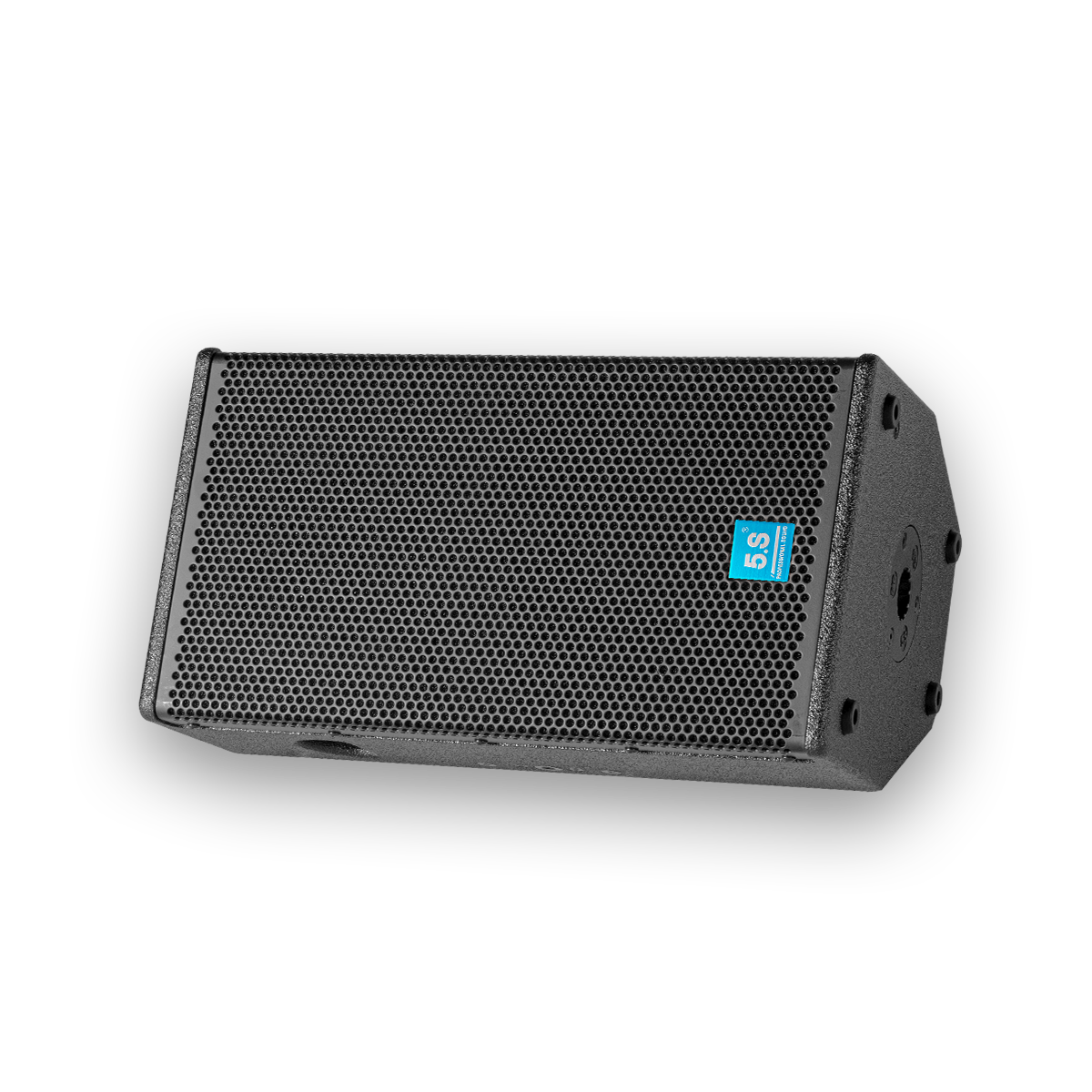

  • The Audio BL-6010 is a balanced rear-ported enclosure with a sturdy 2.0 thick steel grille for protection, covered with high-transmission acoustic mesh fabric. It features a built-in 10" high-power ultra-low distortion woofer and a 90°x60° rotatable square fiber-reinforced composite horn.


Main Features

  • Rated Power: 300W (AES)
  • Peak Power: 1200W (AES)
  • Input Connector: 1*NeutrikTM 1+ 1-
  • Sensitivity: 94dB
  • Maximum SPL: 123dB
  • Nominal Impedance: 8Ω
  • Dispersion Angle: 90°X60°
  • Net Weight: 17.3Kg
  • Enclosure Dimensions: 294mm*540mm*324mm (W*D*H)

Product Description

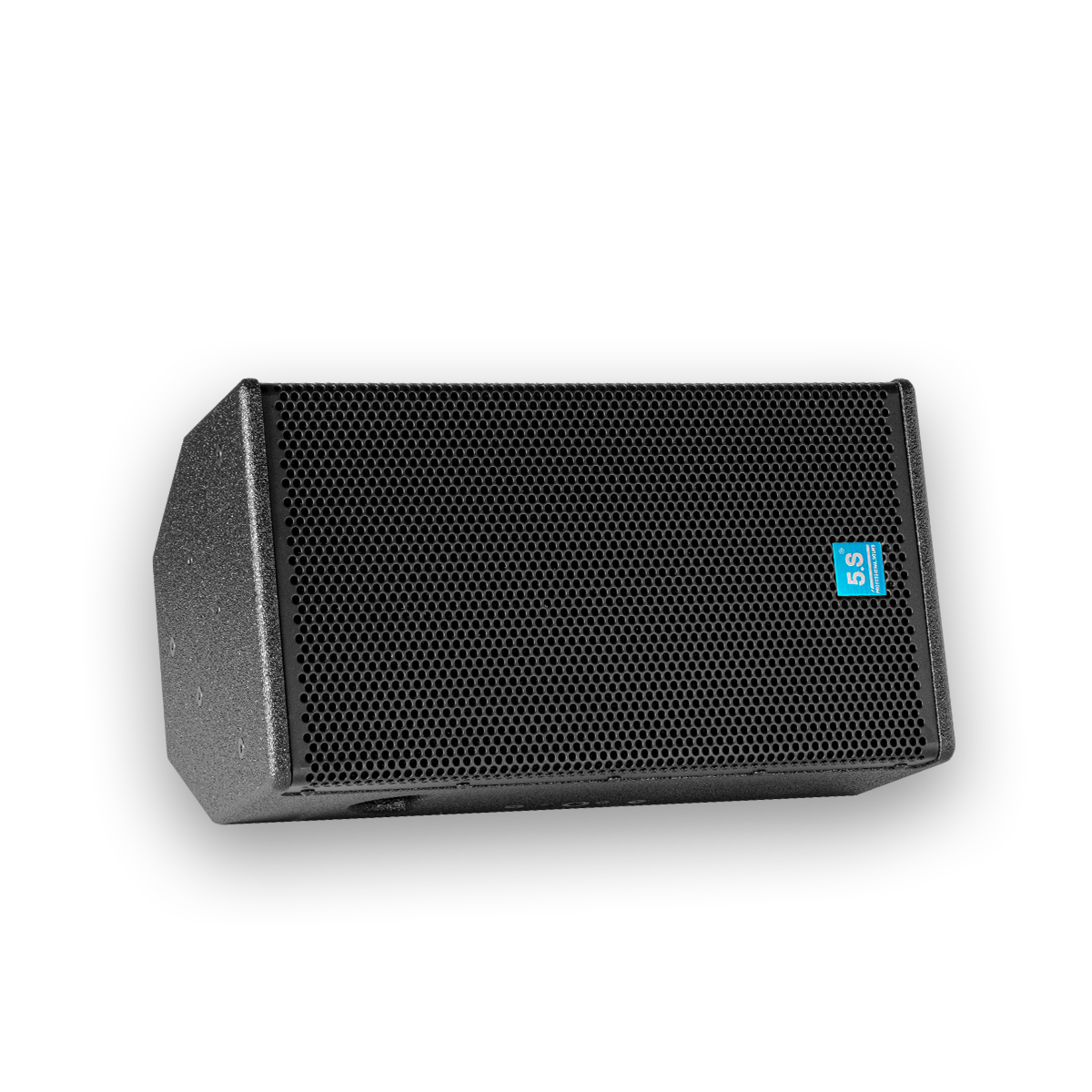

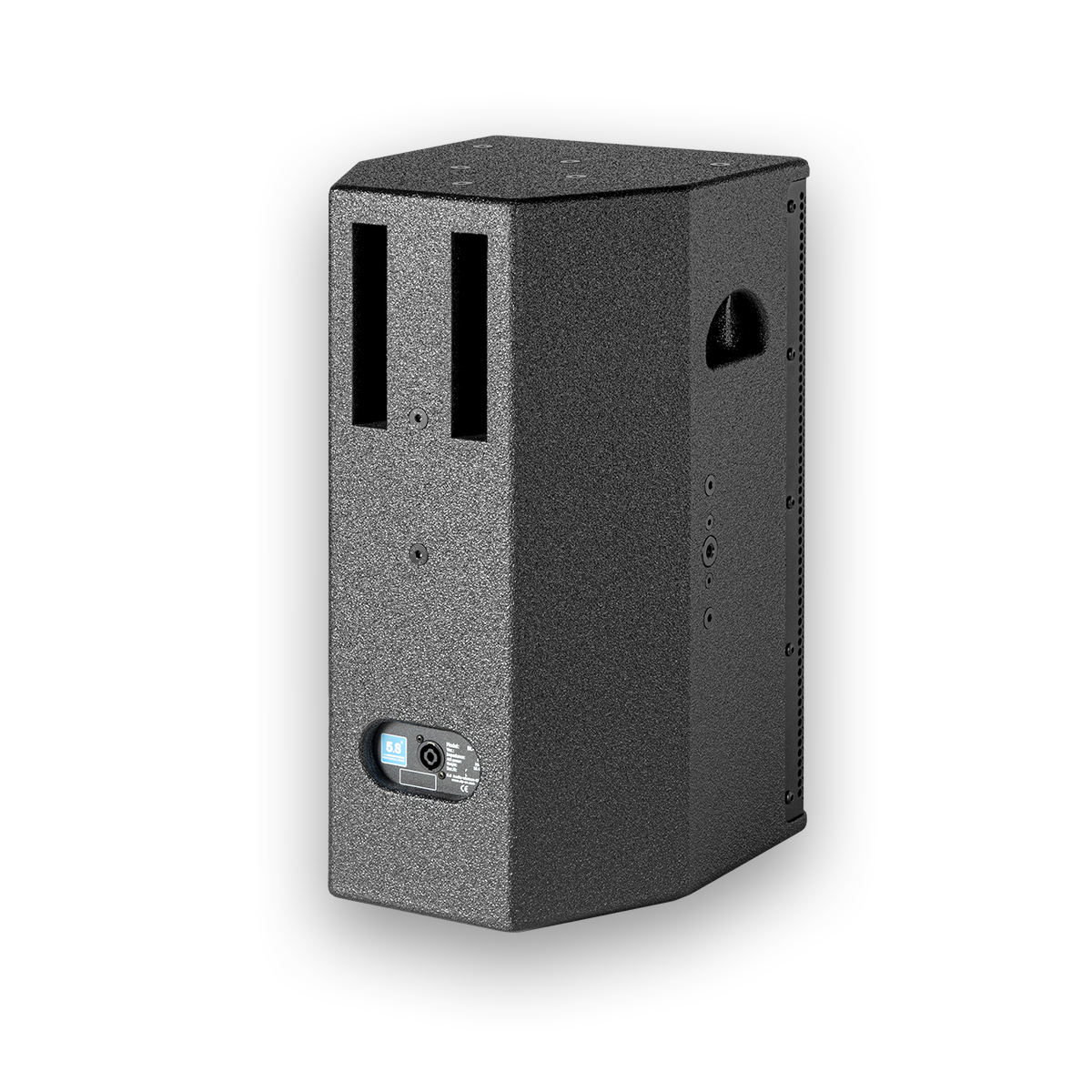

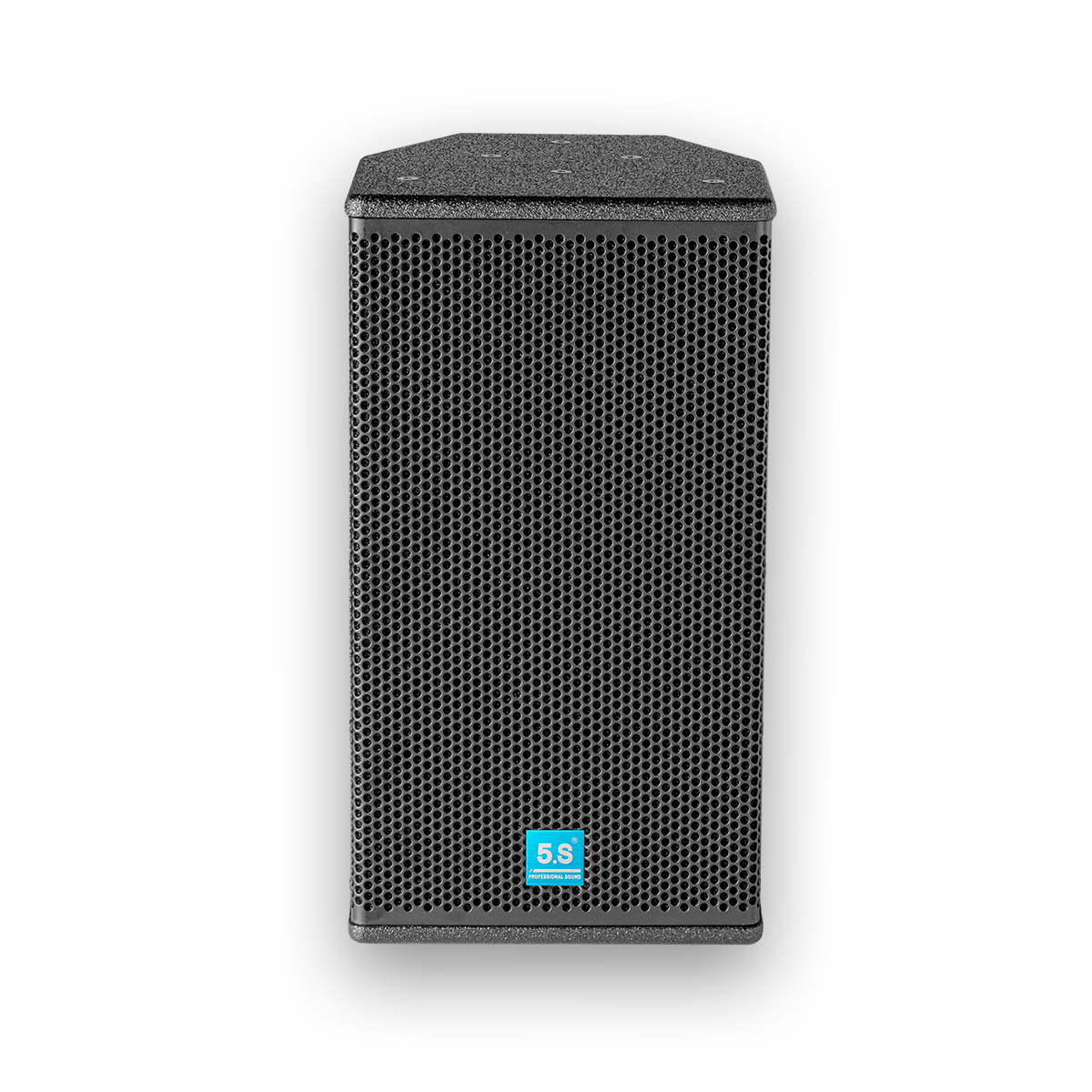

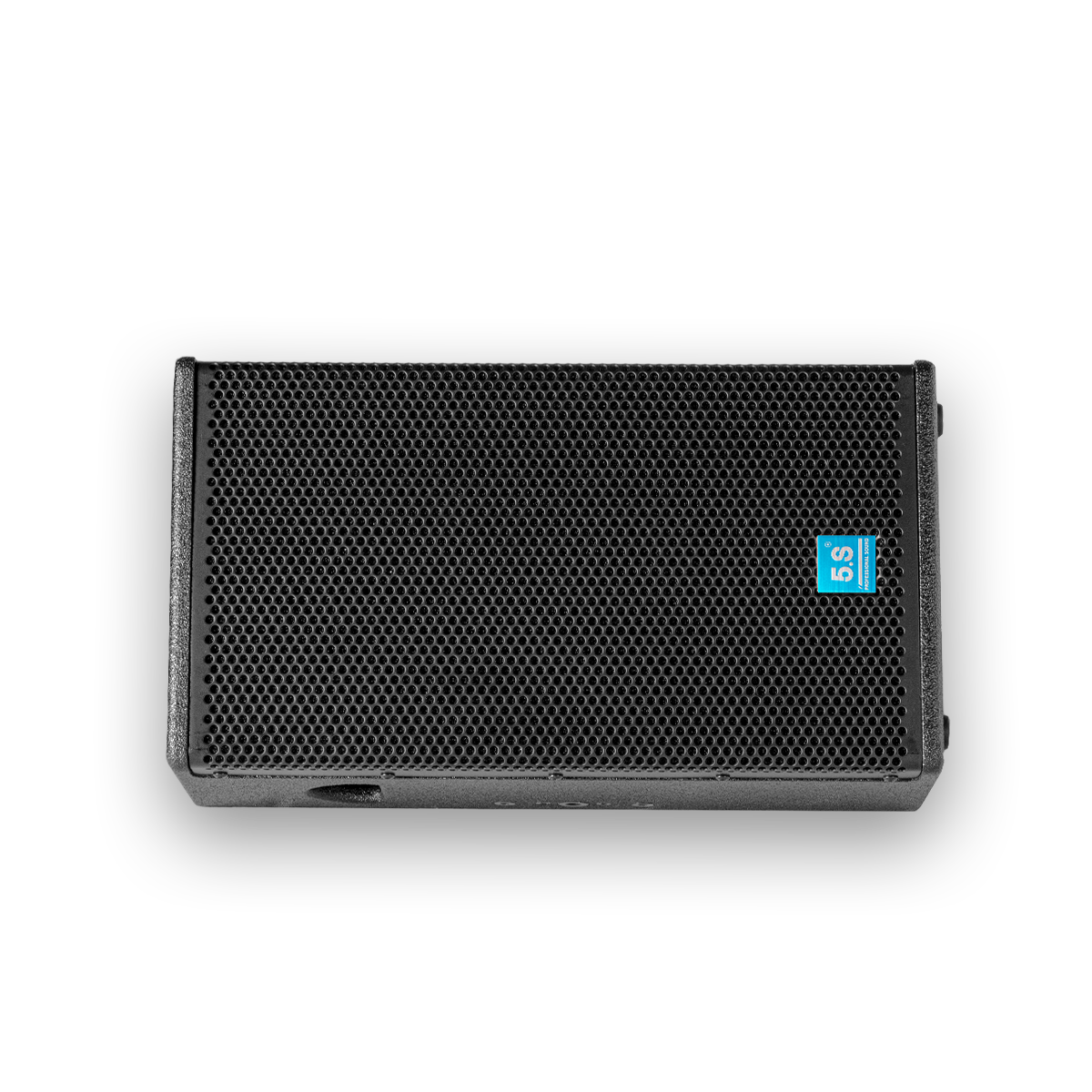

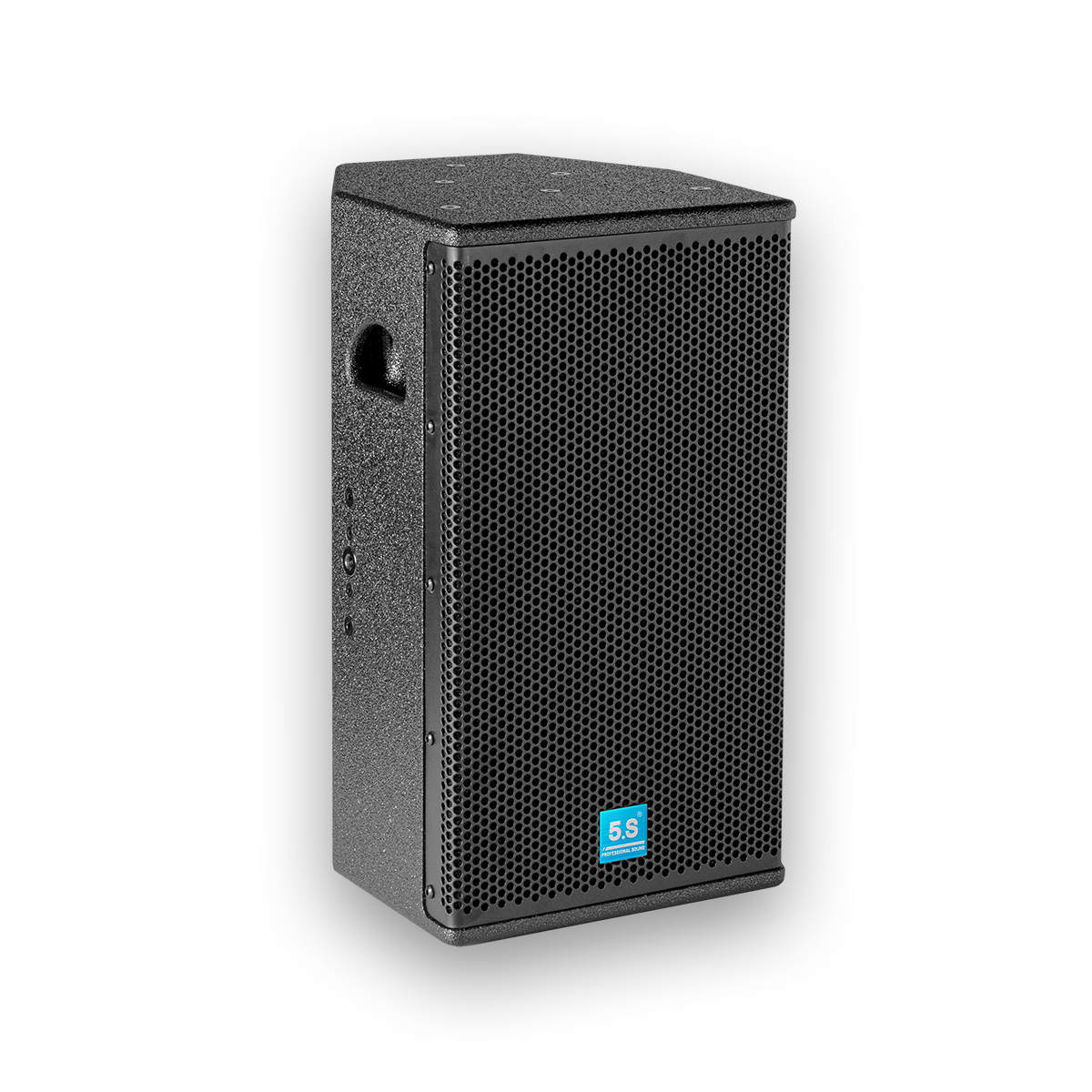

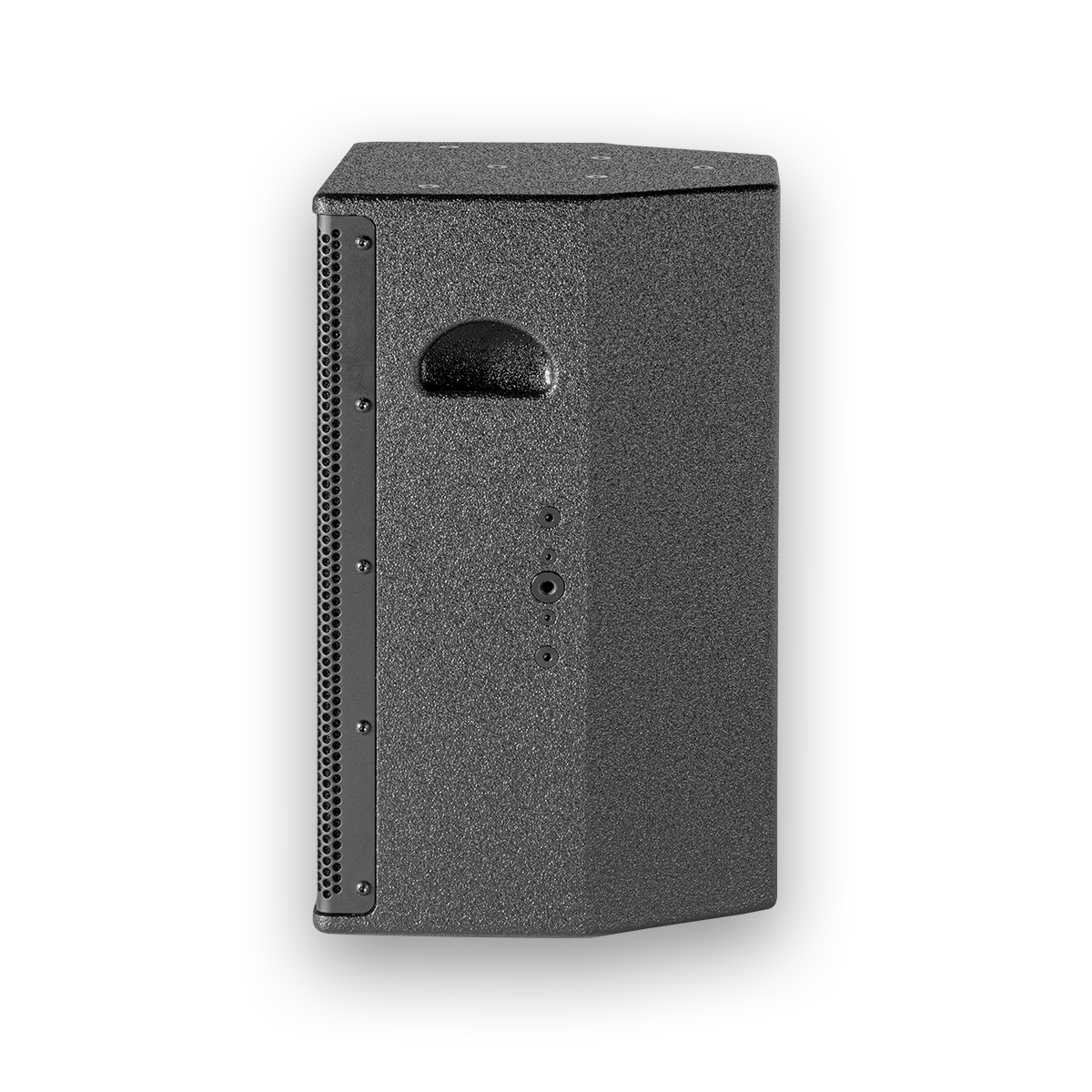

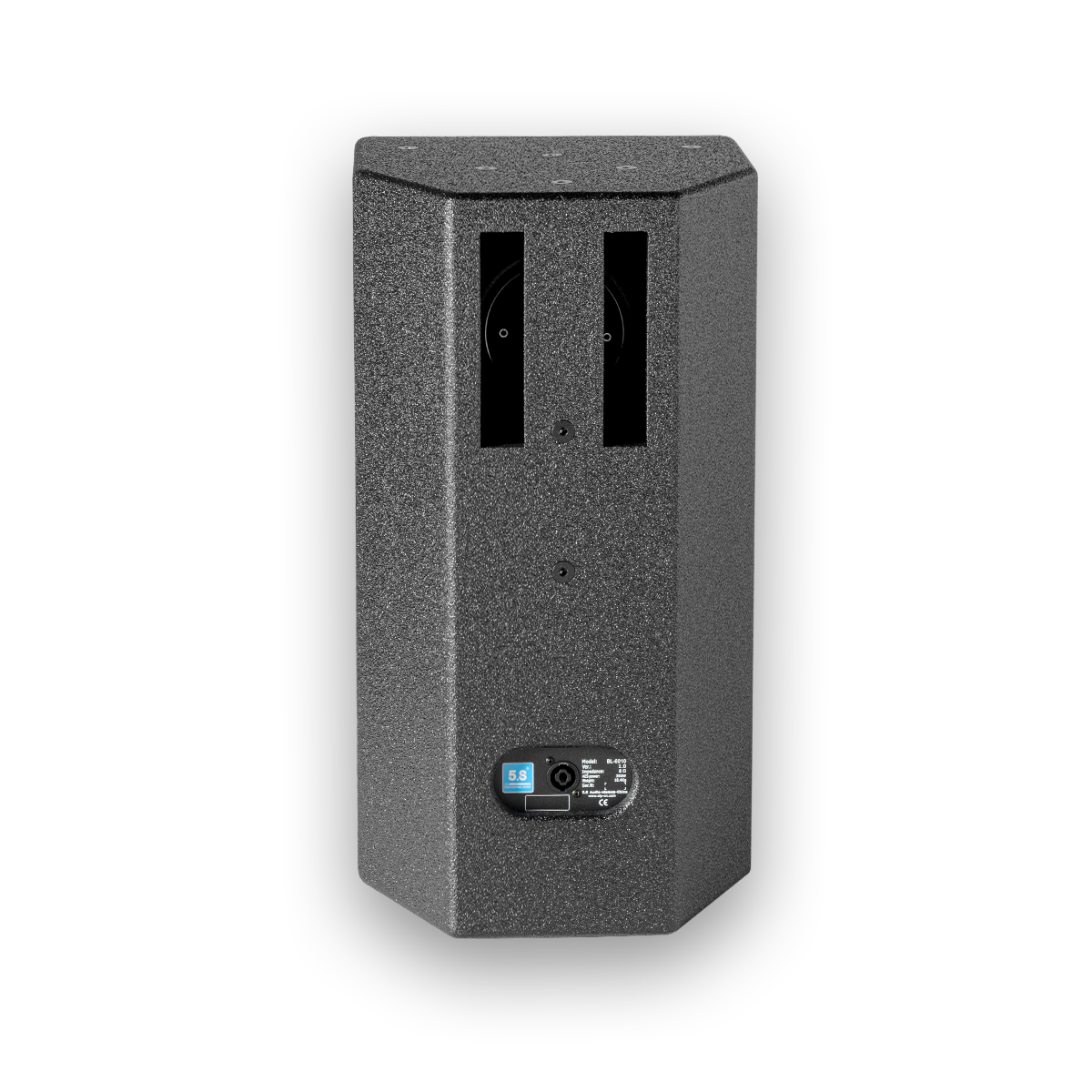

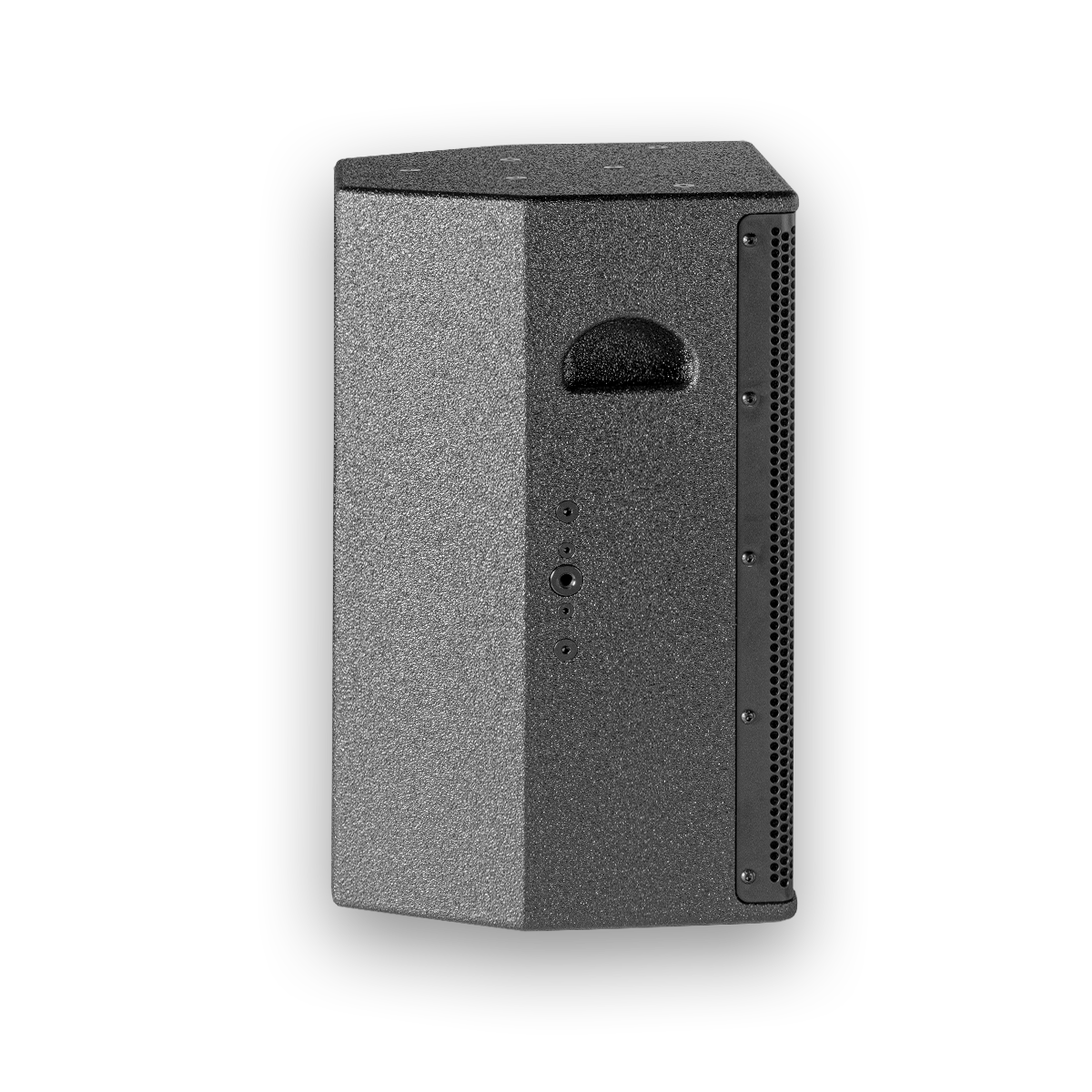

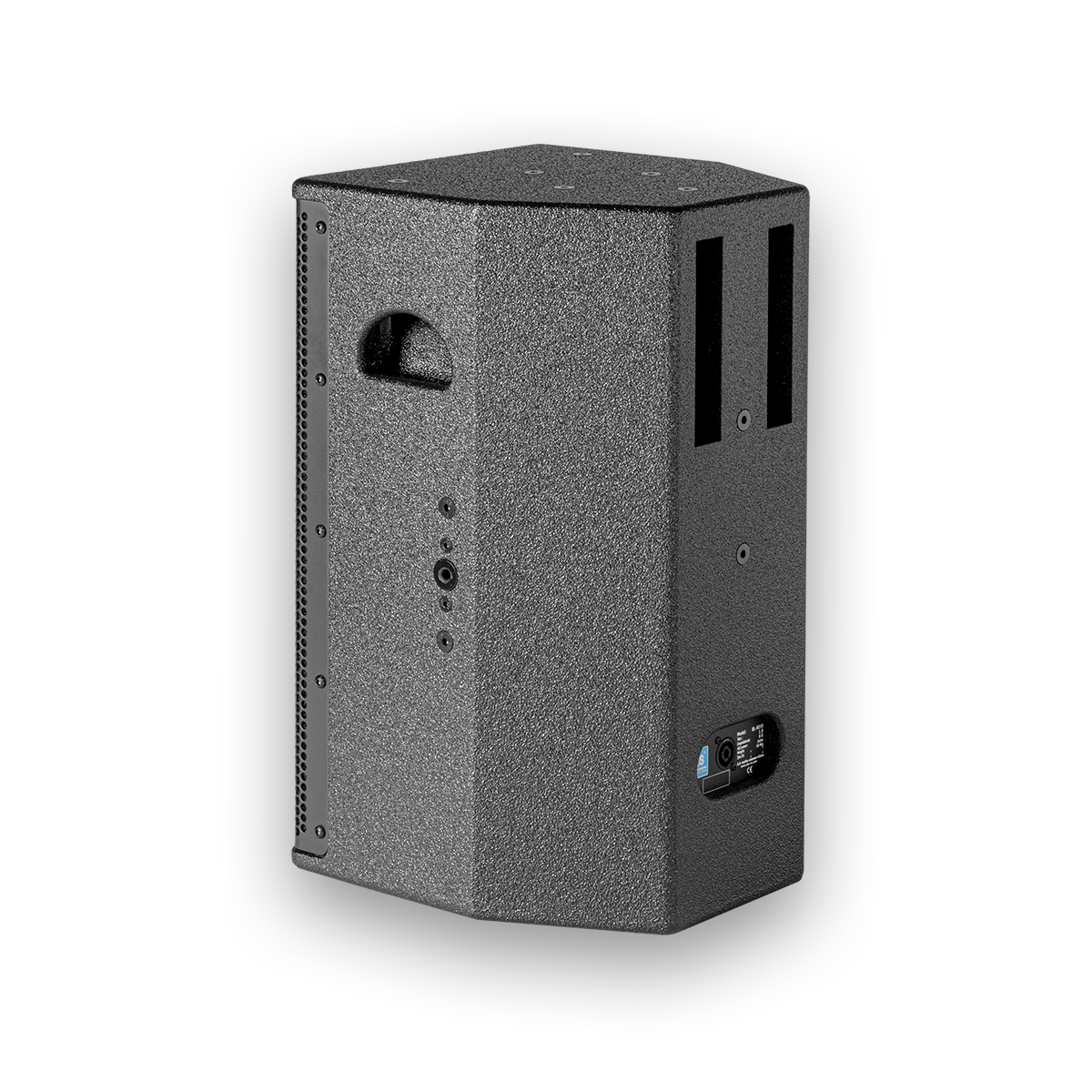

The Audio BL-6010 is a balanced rear-ported enclosure with a sturdy 2.0 thick steel grille for protection, covered with high-transmission acoustic mesh fabric. It features a built-in 10" high-power ultra-low distortion woofer and a 90°x60° rotatable square fiber-reinforced composite horn, along with a 1" throat aerospace-grade magnet professional tweeter driver, forming a 2-way multi-purpose full-range speaker system. As a 2-way system, the BL-6010 can be paired with a dual-channel amplifier system for high output performance. The Audio BL-6010 is suitable for fixed installations, high-end KTV, nightclubs, mid/near-field sound reinforcement, or private clubs, providing an audio solution for such venues.

Technical Specifications

Type: 2-way Full-range Multi-purpose Speaker System
Frequency Response: 44Hz-20kHz
Power: 300W
Peak Power: 1200W
Impedance:
Dispersion Angle: 90° X 60°
Sensitivity: 94dB
Maximum SPL: 123dB
Crossover Point: 1.5kHz Built-in Crossover
Input Connector: 1*NeutrikTM 1+1-
Low-frequency: 10" woofer with European custom-made bass unit, 2.5" (63mm) voice coil, rated power: 300W (AES)
High-frequency: 1" throat, European custom-made compression driver, 1.75" (44mm) voice coil, rated power: 80W (AES)
Enclosure Material: 15mm+18mm marine-grade birch plywood
Enclosure Finish: Black polyurea paint
Net Weight: 17.3Kg
Dimensions: 294mm*540mm*324mm (W*D*H)
