Product Description

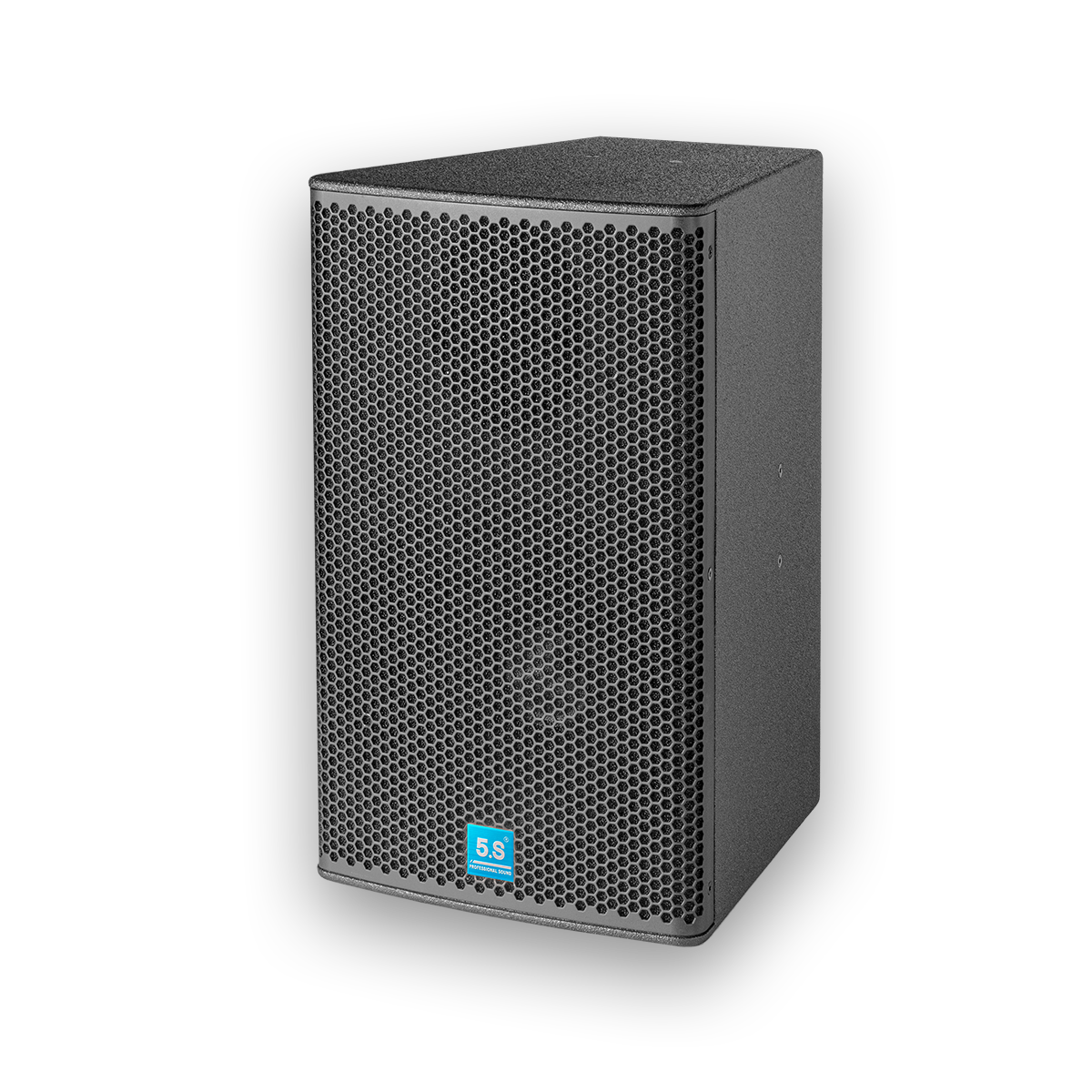

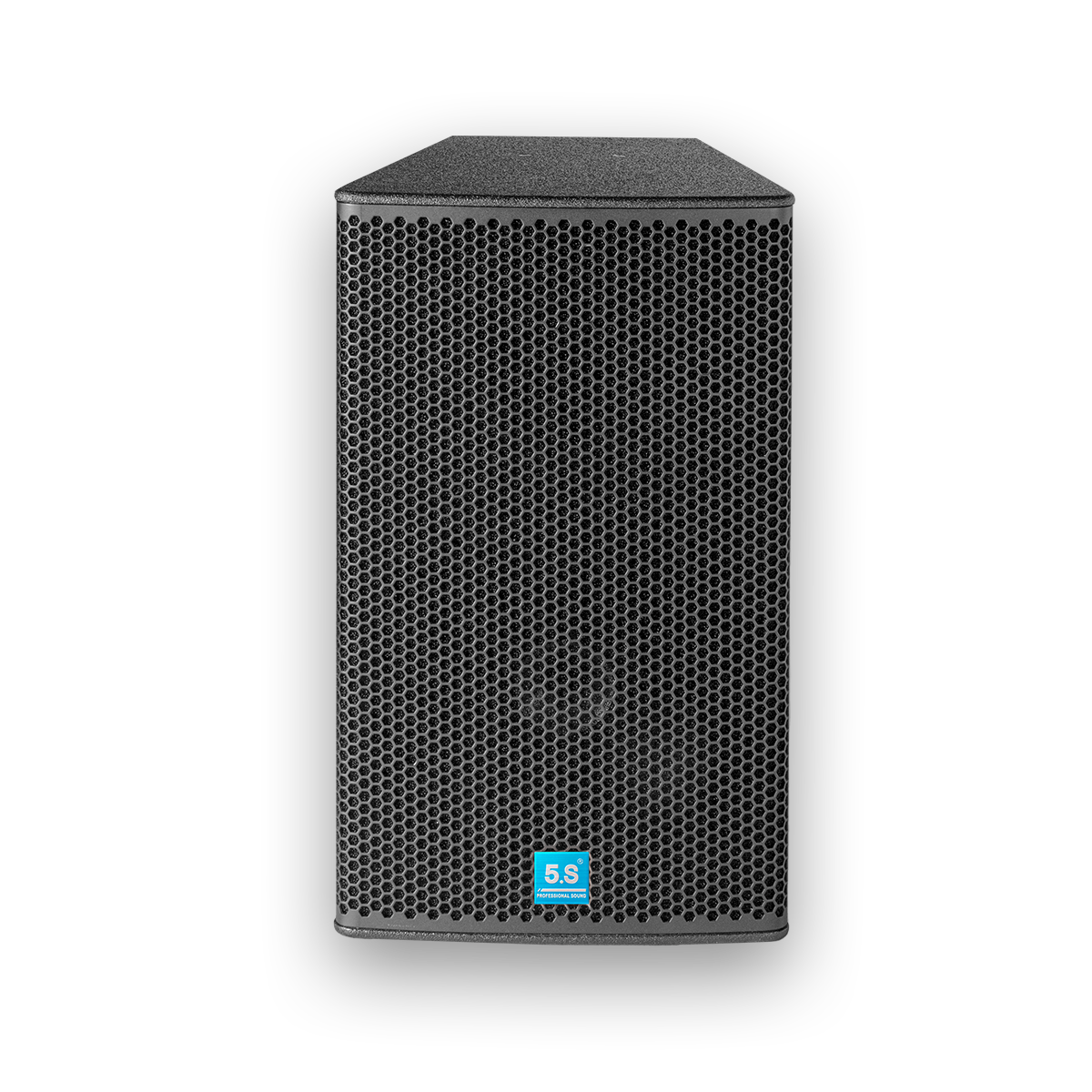

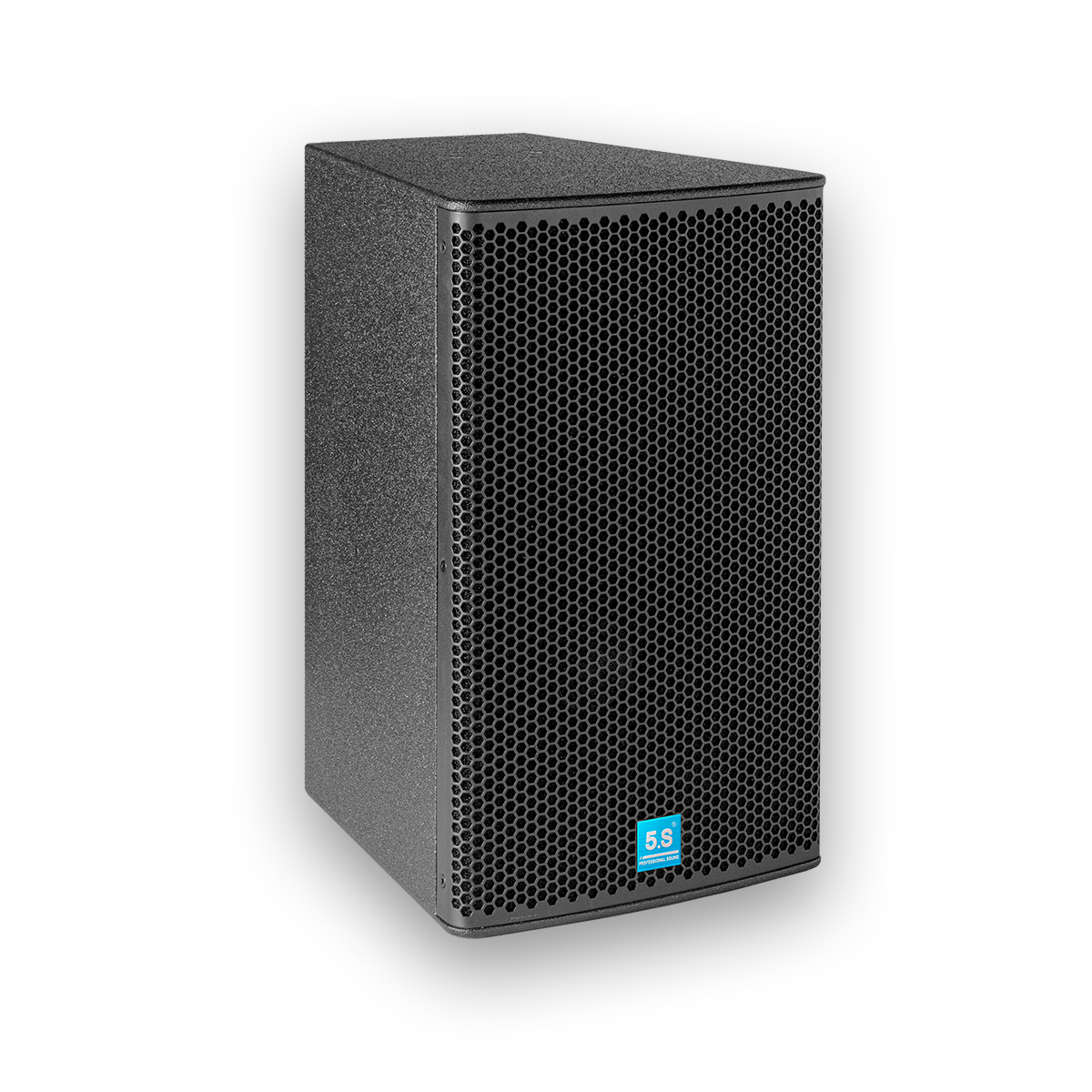

The BL-6012D is a passive 2-way full-range point source speaker, ideally suited for high-end entertainment venues that require excellent low-frequency elasticity, rich midrange, and delicate high frequencies.
With its superior coverage angle and outstanding full-range sound performance, the BL-6012D delivers high-fidelity audio, making it perfect for fixed installations.
The BL-6012D cabinet is equipped with a high-power, long-excursion 12-inch woofer, while a 1.75-inch annular diaphragm high-frequency compression driver is mounted on the back of the woofer. This design creates a truly unique point source with smooth and coherent wavefronts, ensuring precise directivity and flat coverage while maintaining phase alignment between the high and low frequencies.
The BL-6012D is suitable for high-end entertainment venues, nightclubs, private party rooms, and more.
Technical Specifications
| Type: | 2-Way Full-Range Multi-Purpose Loudspeaker System |
| Frequency Response: | 40Hz–20kHz |
| Power Handling: | 700W |
| Peak Power: | 2800W |
| Impedance: | 4Ω |
| Coverage Angle: | 90° Conical |
| Sensitivity: | 95dB |
| Maximum SPL: | 128dB |
| Crossover Frequency: | 1kHz Built-in |
| Input Connector: | 1×NeutrikTM 1+1- |
| Low-Frequency: | 12" Woofer with Aerospace-Grade Ferrite Magnet, 3" (75mm) Voice Coil, Rated Power: 700W (AES) |
| High-Frequency: | 1" Throat, Aerospace-Grade Ferrite Driver, 1.75" (44mm) Voice Coil, Rated Power: 80W (AES) |
| Cabinet Material: | 12mm Marine-Grade Birch Plywood |
| Cabinet Finish: | Black Polyurea Paint |
| Net Weight: | 19Kg |
| Dimensions: | 284mm×480mm×336mm (W×D×H) |
