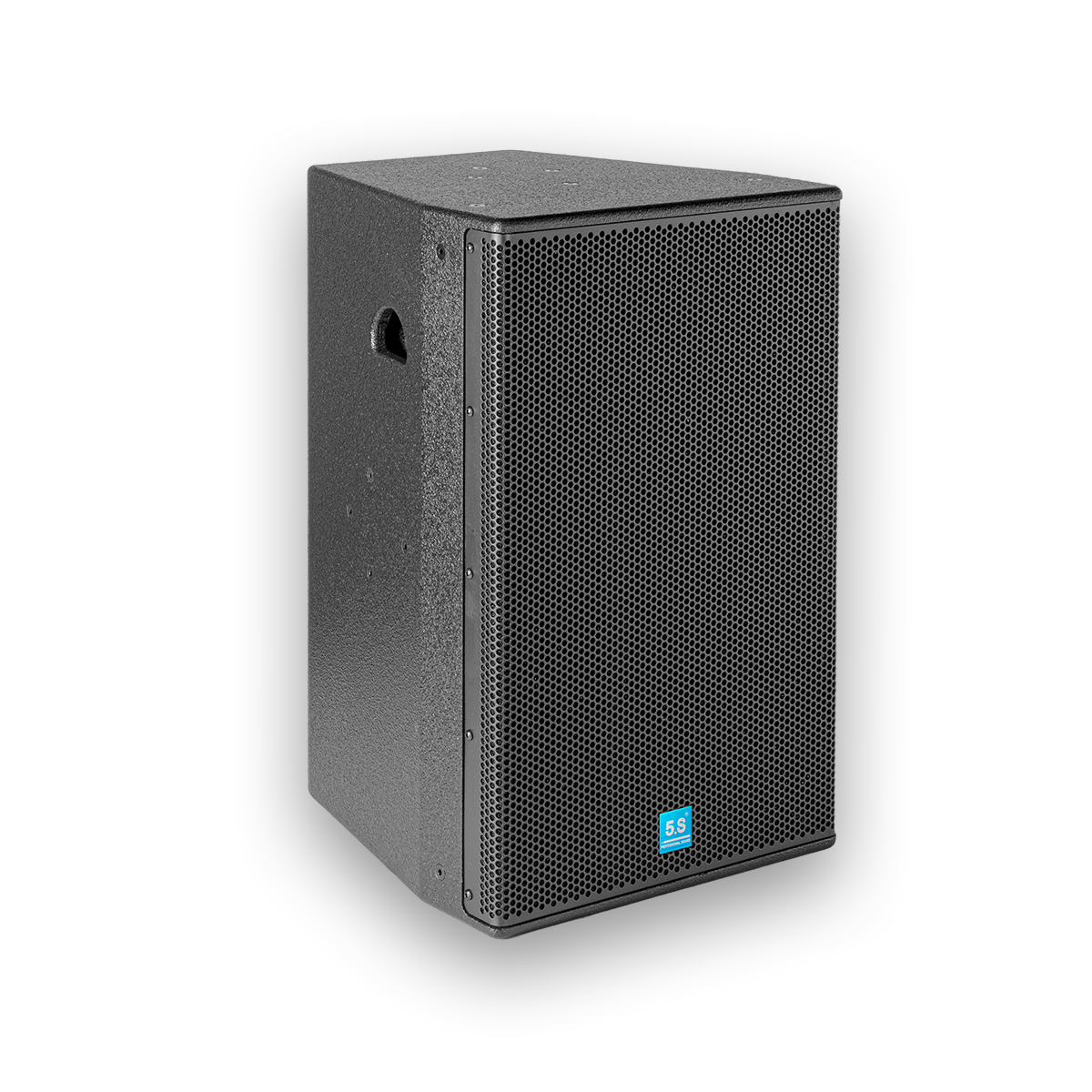

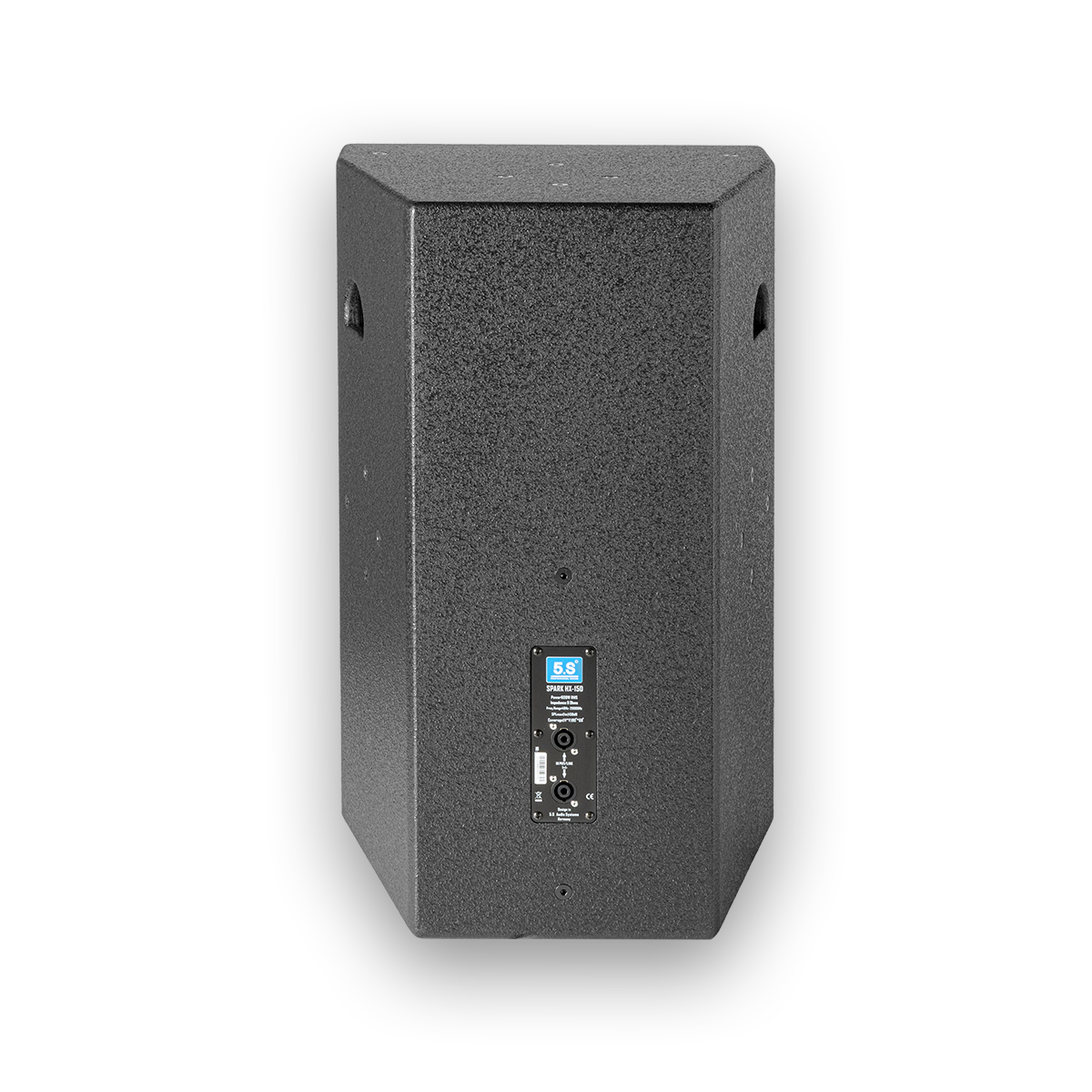

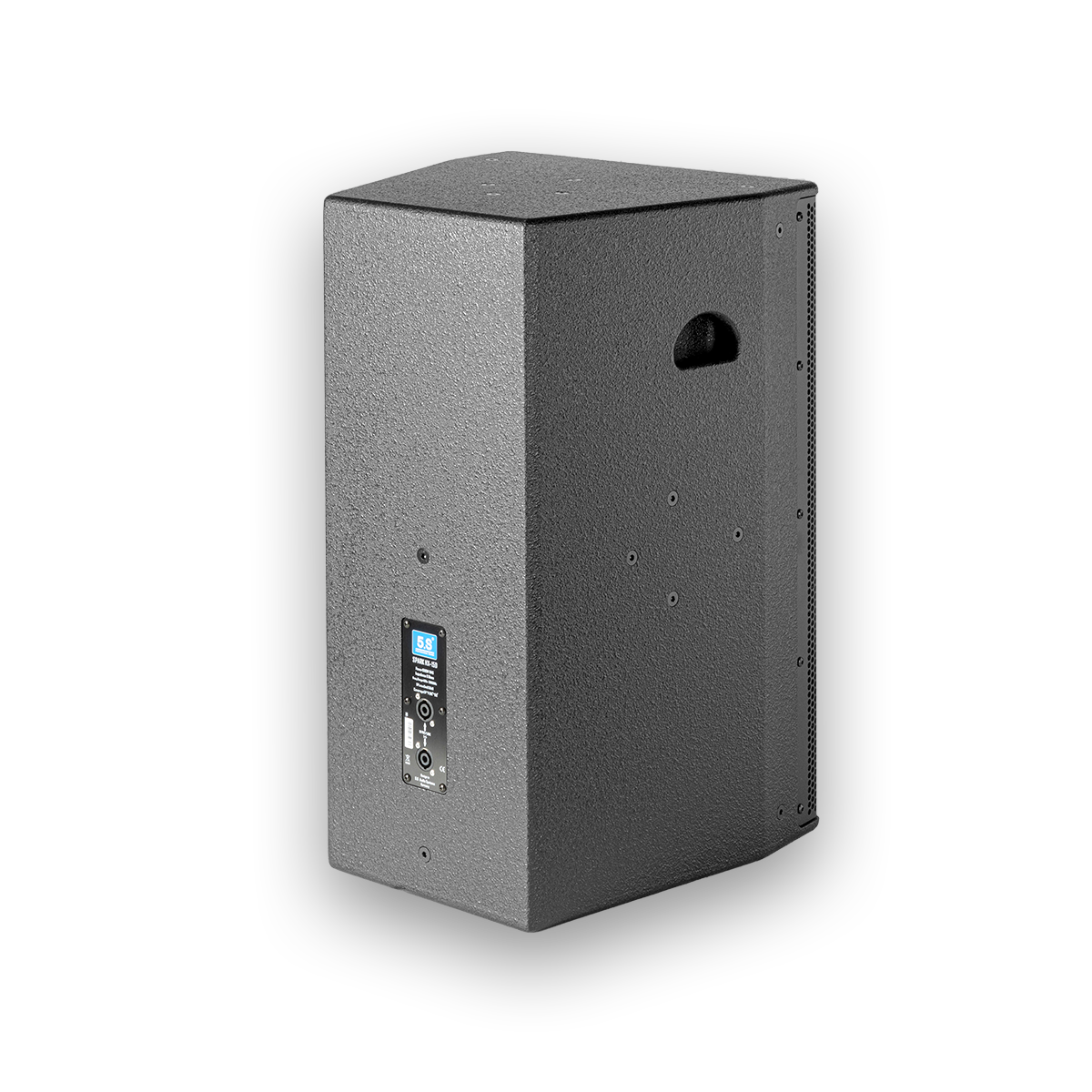

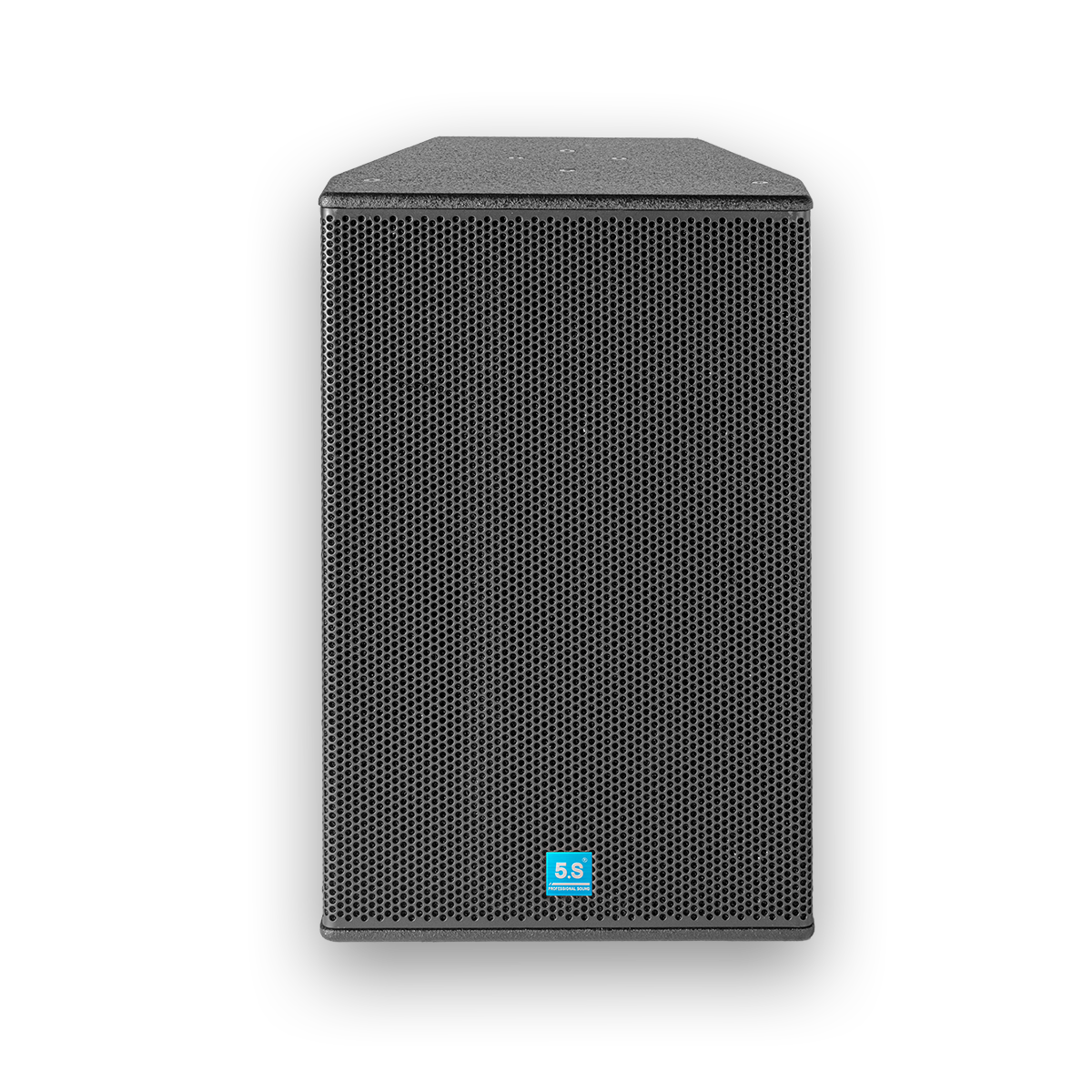

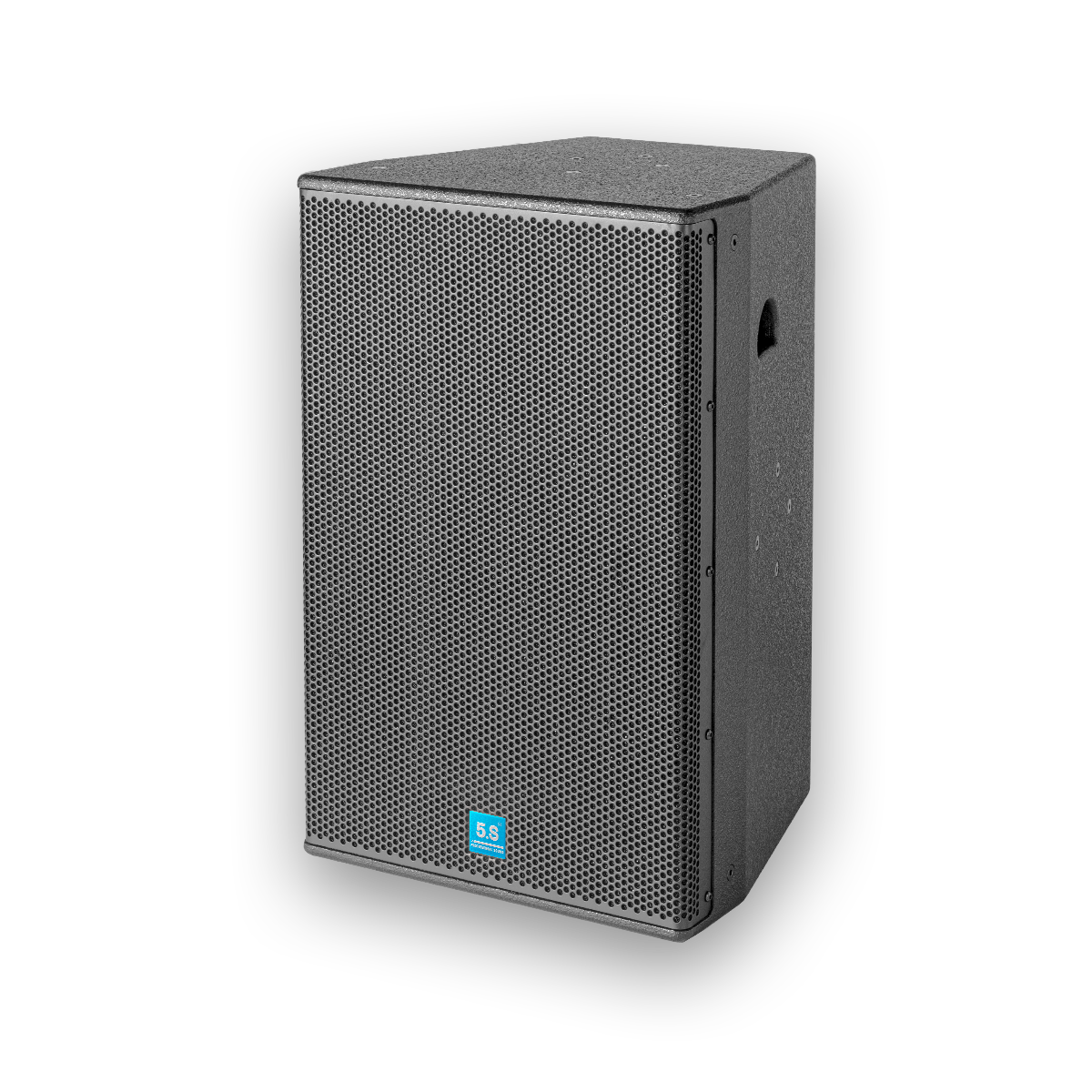

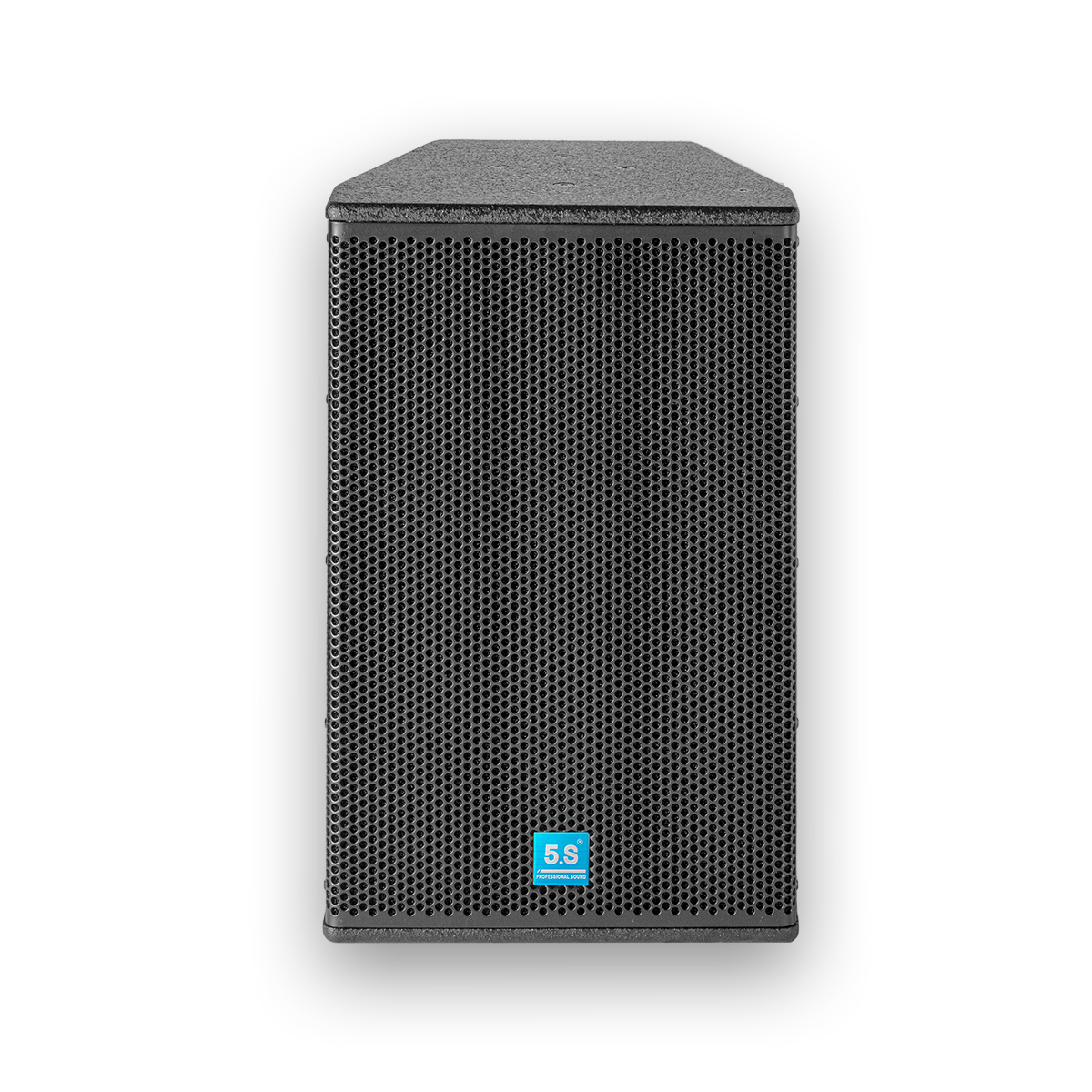

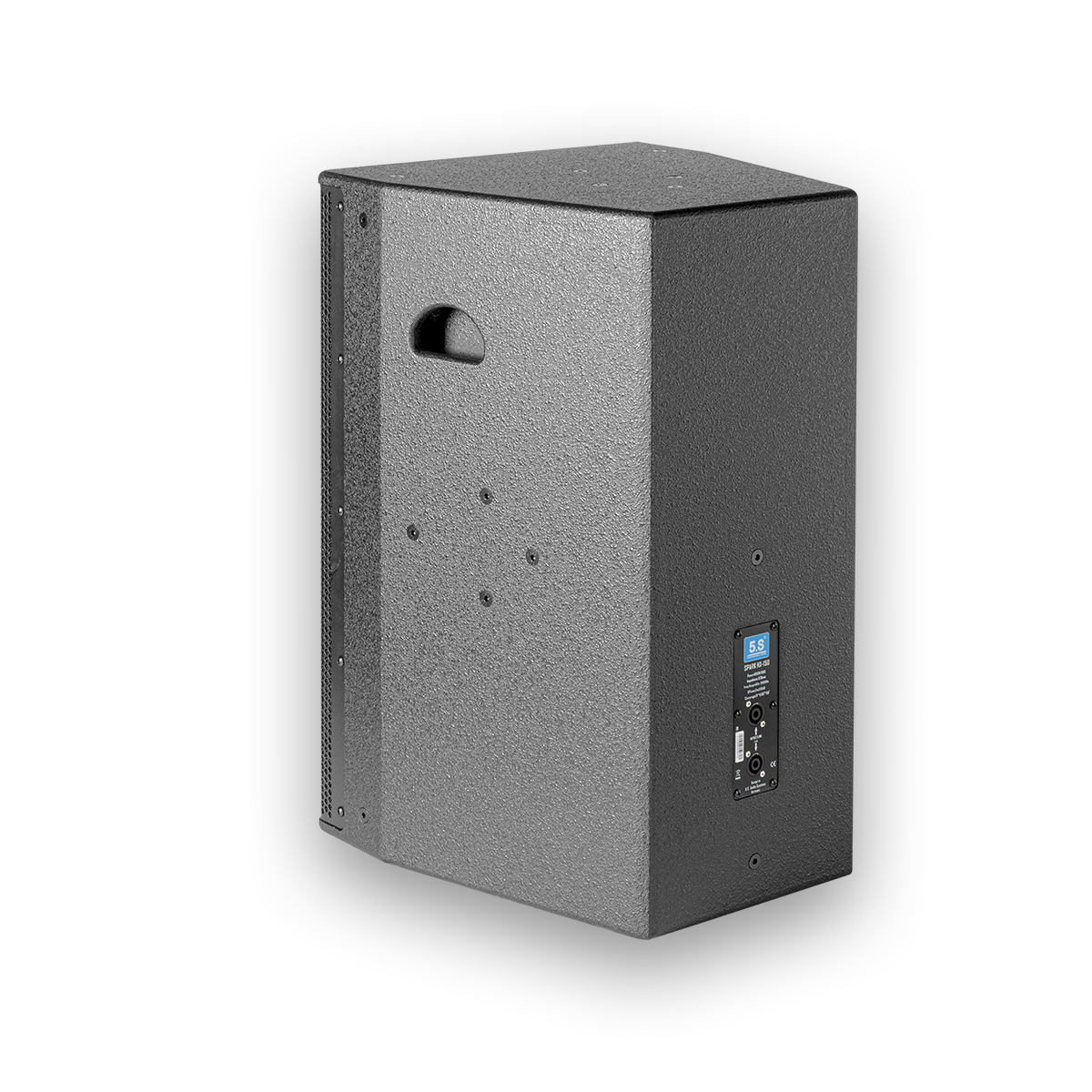

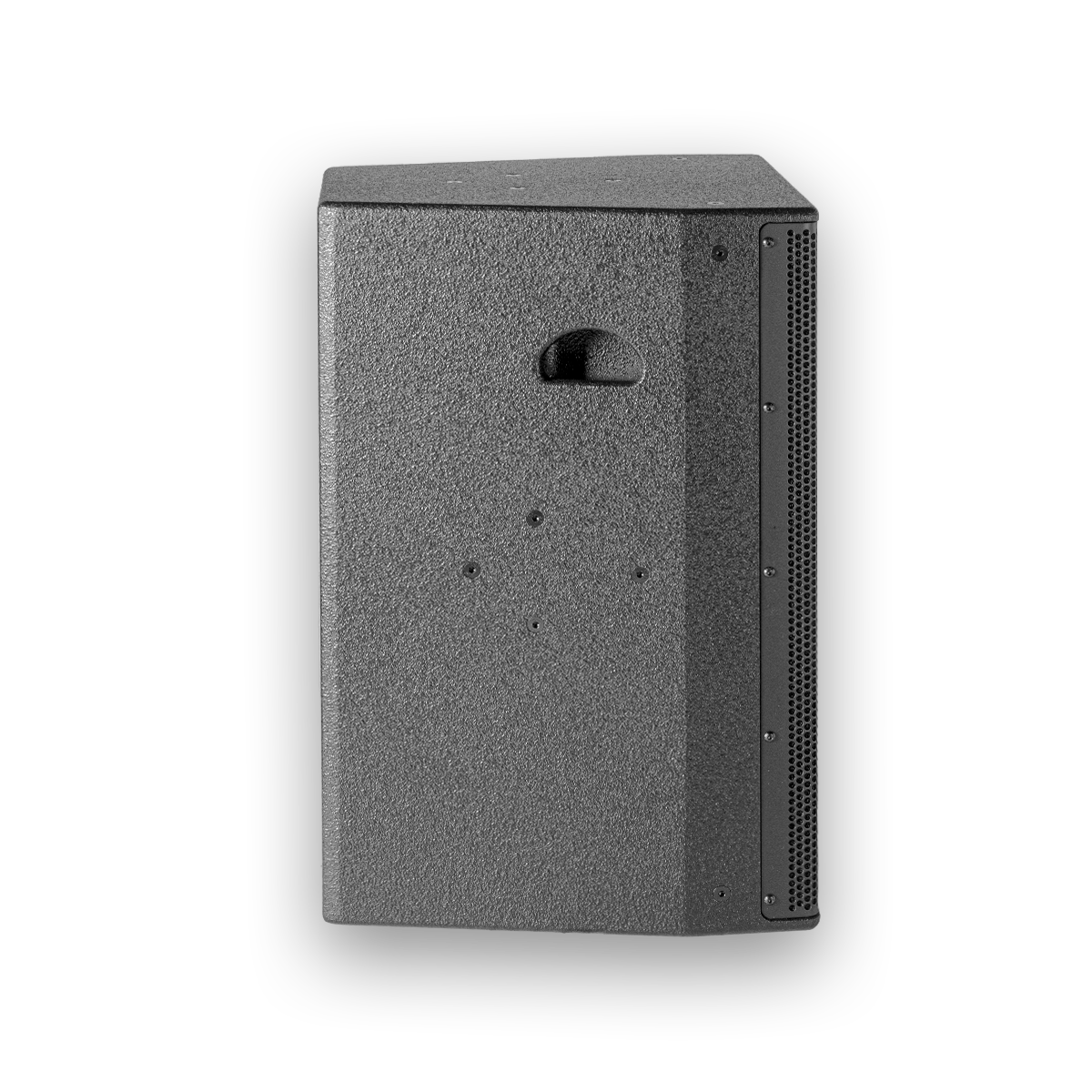

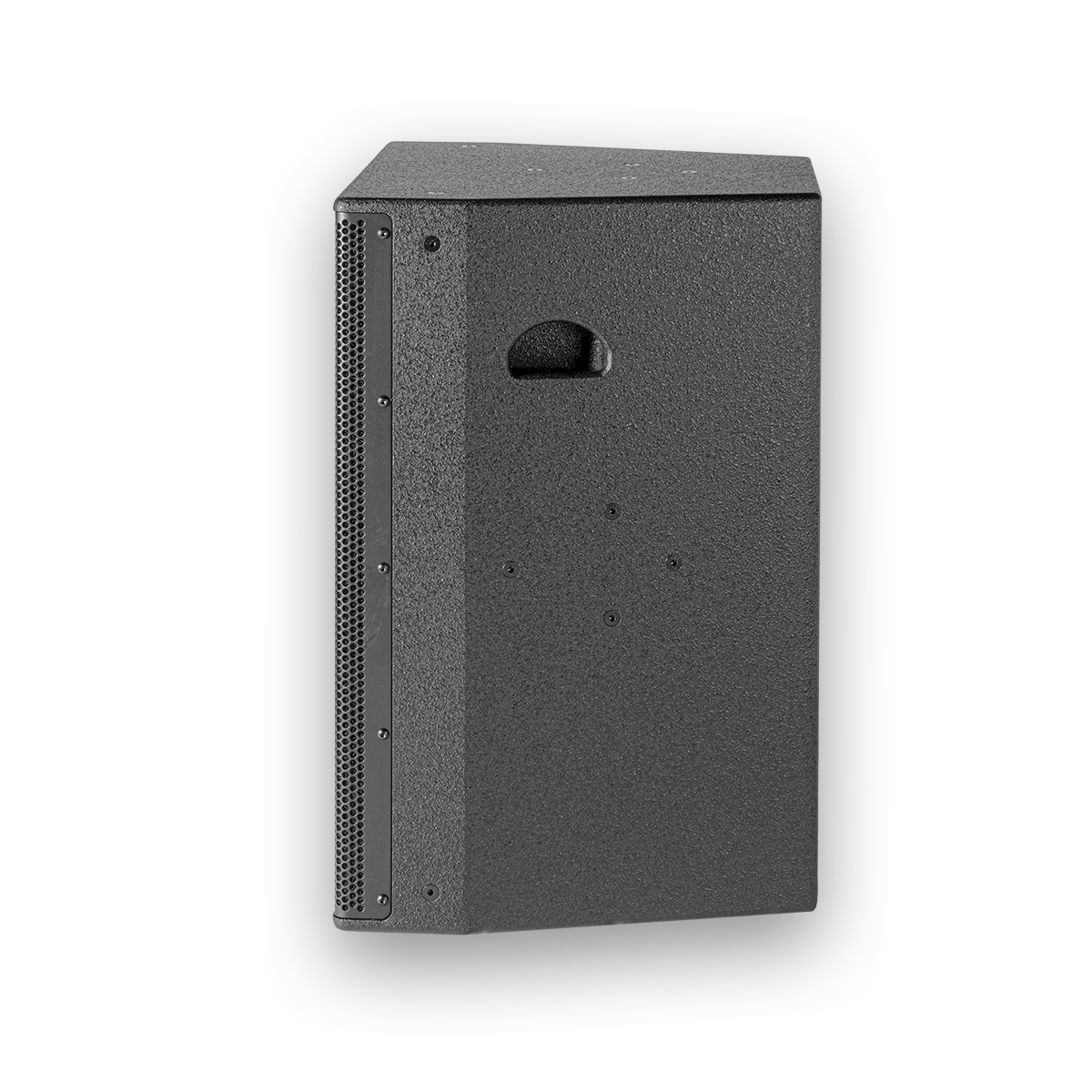

HX-15D

Single 15" Two-Way Multi-Purpose Full-Range Speaker

HX-15D
HX-15D
HX-15D
HX-15D
HX-15D
HX-15D
HX-15D
HX-15D

15" High-Power, Ultra-Low Distortion Bass

  • The Audio HX-15D speaker is equipped with a 15" high-power, ultra-low distortion woofer and a rotatable 80°x60° square fiberglass horn.


Main Features

  • Rated Power: 500W (AES)
  • Peak Power: 2000W (AES)
  • Input Connector: 1×NeutrikTM 1+1-
  • Sensitivity: 98dB
  • Maximum SPL: 130dB
  • Nominal Impedance: 8Ω
  • Dispersion: 90°×60°
  • Net Weight: 36.2Kg
  • Dimensions: 439mm×705mm×440mm (W×D×H)

Product Description

Audio HX-15D speaker features a built-in 15" high-power, ultra-low distortion woofer and a rotatable 80°x60° square fiber-reinforced plastic horn with a 1.5" throat professional tweeter, forming a 2-way versatile full-range speaker system. As a 2-way system, the HX-15D can be paired with a dual-channel amplifier system to achieve high output performance.
The Audio HX-15D is suitable for fixed installations, entertainment venues, banquet halls, conference rooms, bars, lounges (near/mid-field sound reinforcement), or private clubs, providing an audio solution for various applications.

Technical Specifications


Type: 2-Way Full-Range Multi-Purpose Speaker System
Frequency Response: 45Hz-18kHz
Power: 500W
Peak Power: 2000W
Impedance:
Dispersion: 90° × 60°
Sensitivity: 98dB
Maximum SPL: 130dB
Crossover Frequency: 1.5kHz Built-in Crossover
Input Connector: 1×NeutrikTM 1+1-
Low-Frequency: 15" Woofer with European custom-designed bass driver, 3" (75mm) voice coil, rated power: 500W (AES)
High-Frequency: 1" Throat, European custom-designed compression driver, 2.35" (61mm) voice coil, rated power: 100W (AES)
Enclosure Material: 15mm Marine-Grade Birch Plywood
Enclosure Finish: Black Water-Based Paint
Net Weight: 36.2Kg
Dimensions: 439mm×705mm×440mm (W×D×H)
