5.S Professional audio expertise with 20+ years in the industry

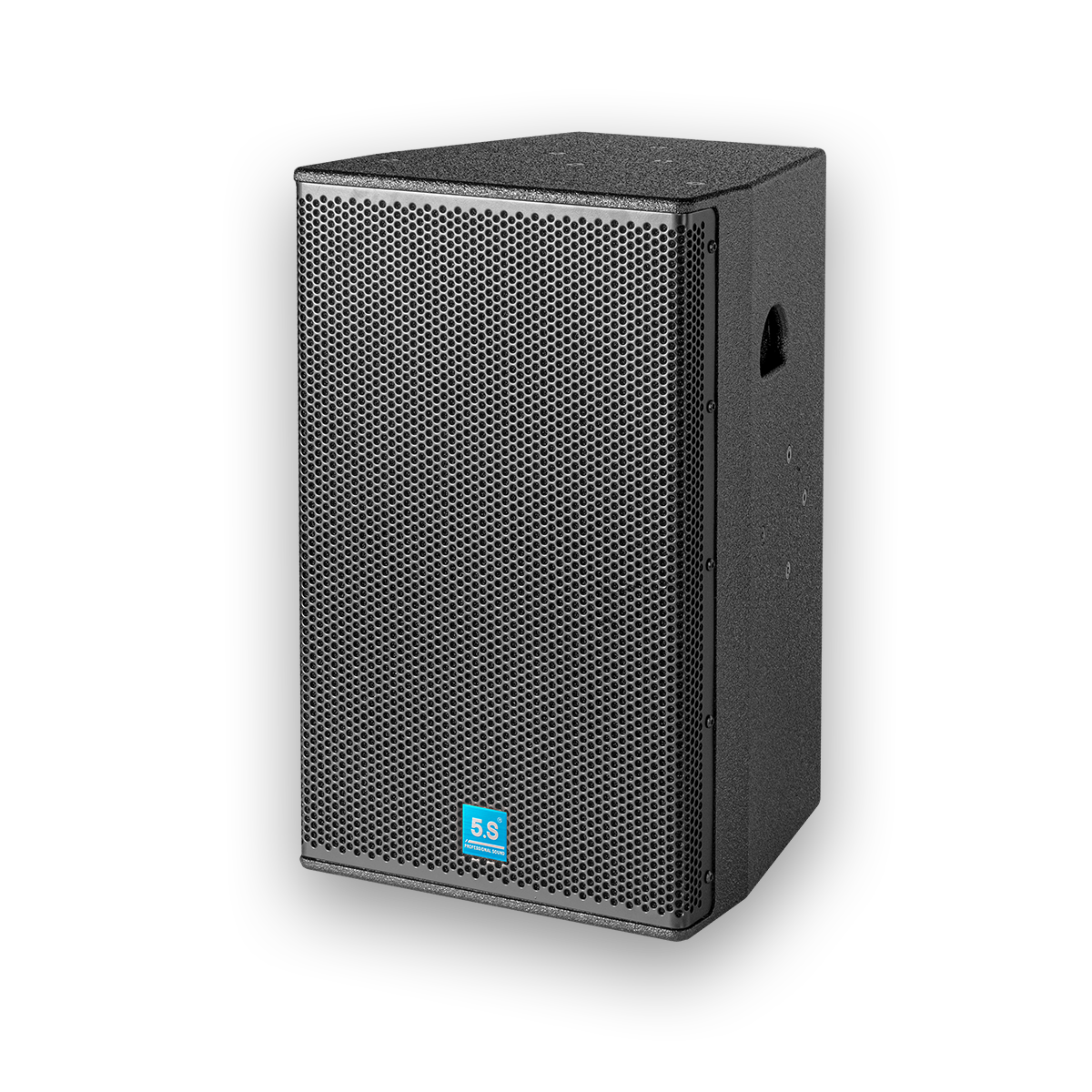

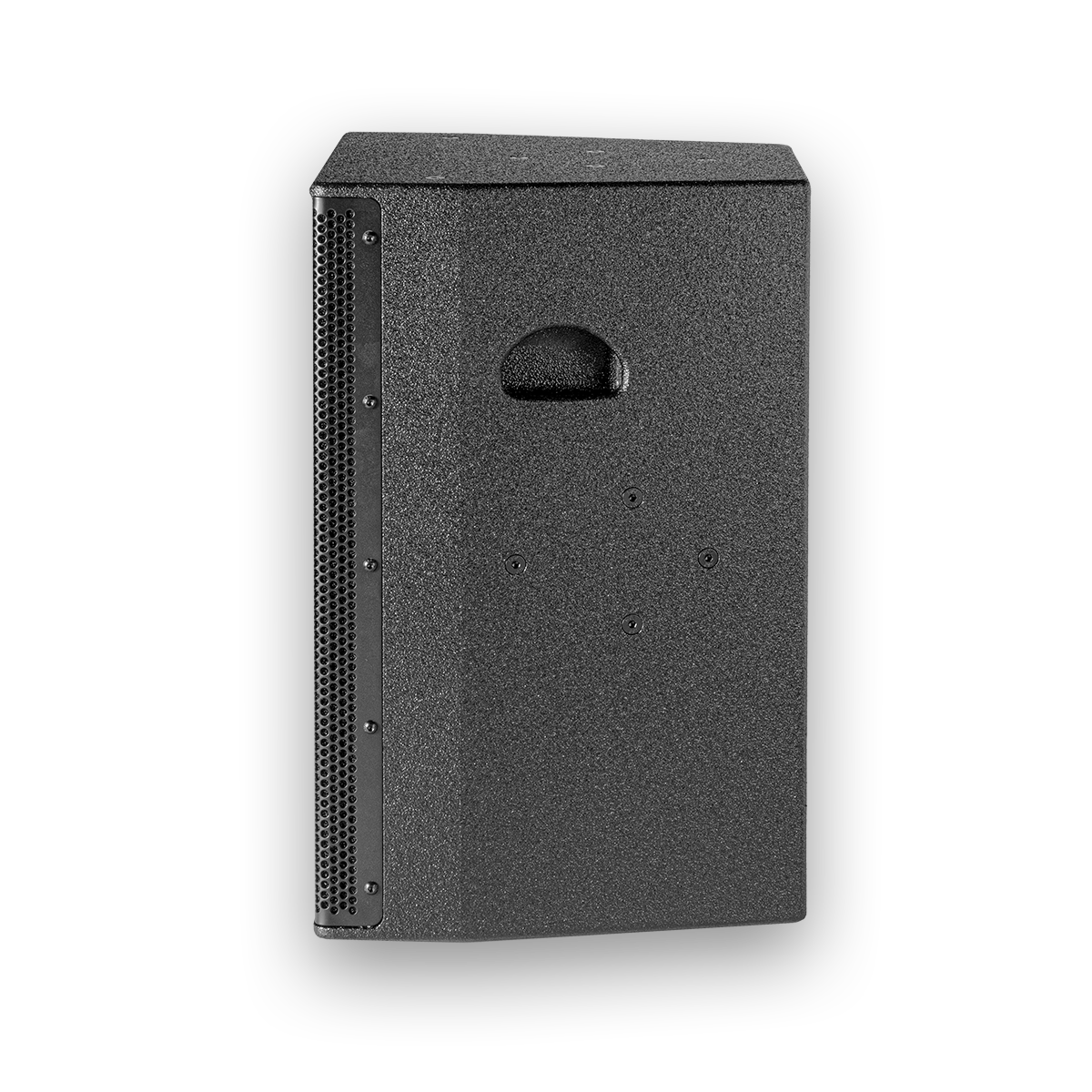

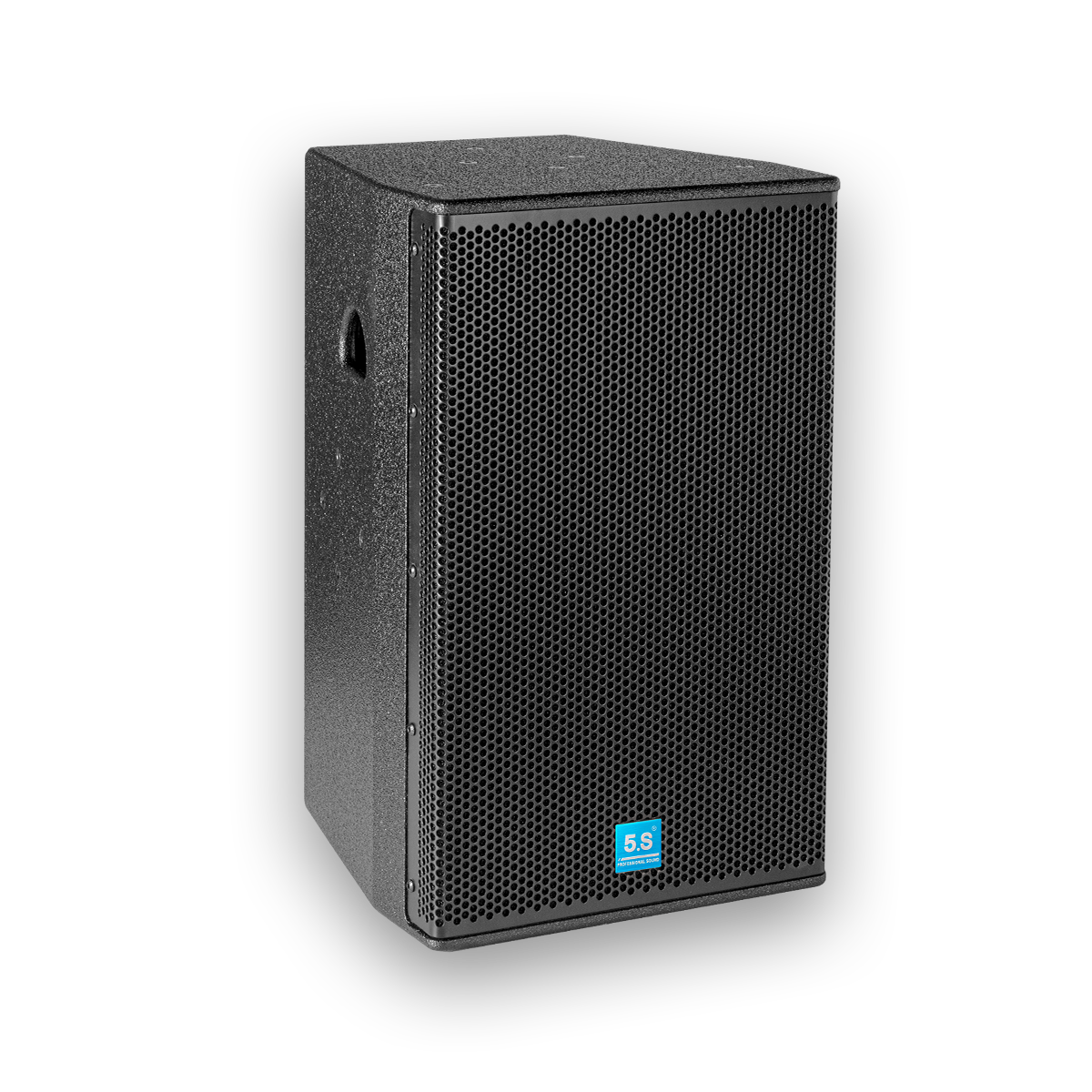

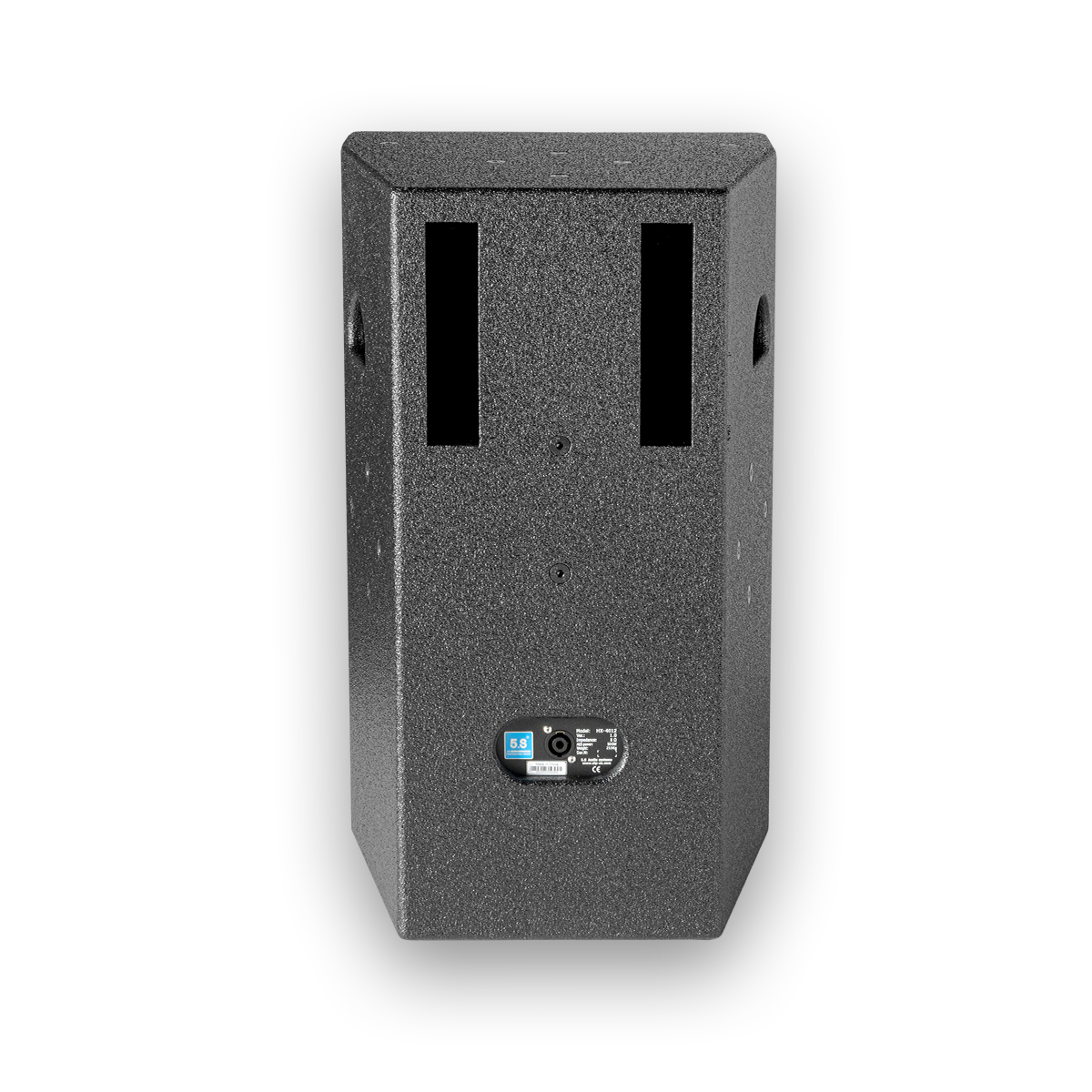

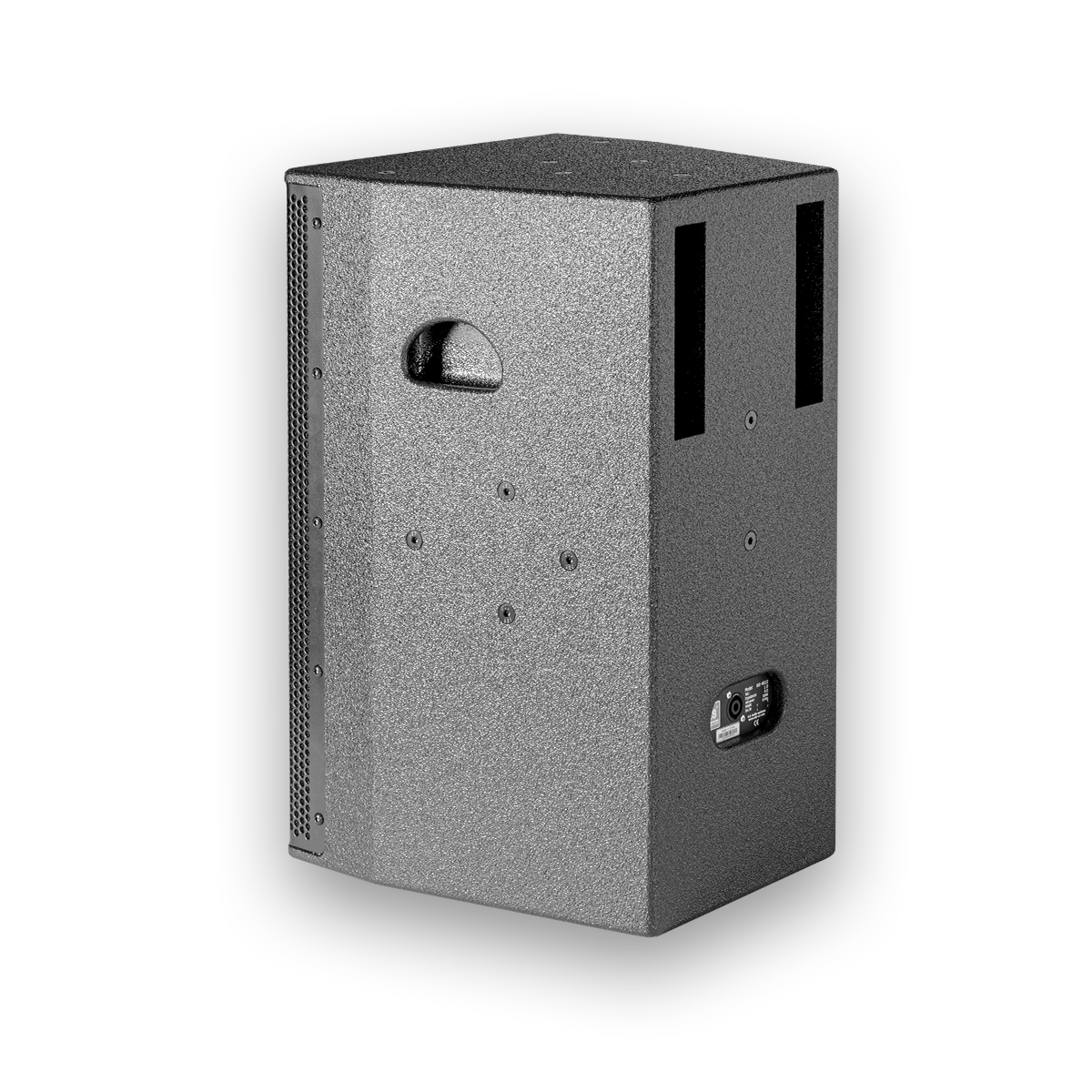

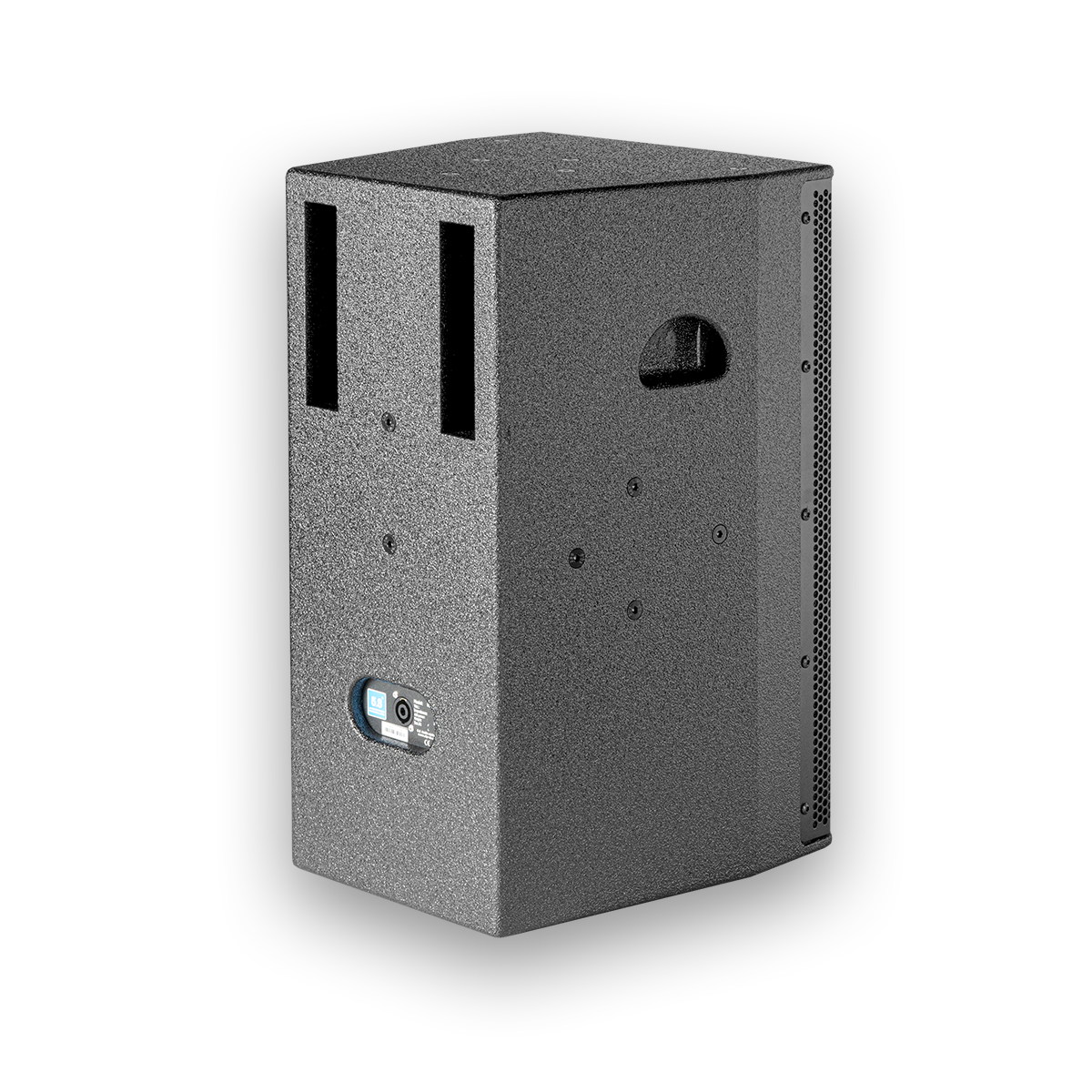

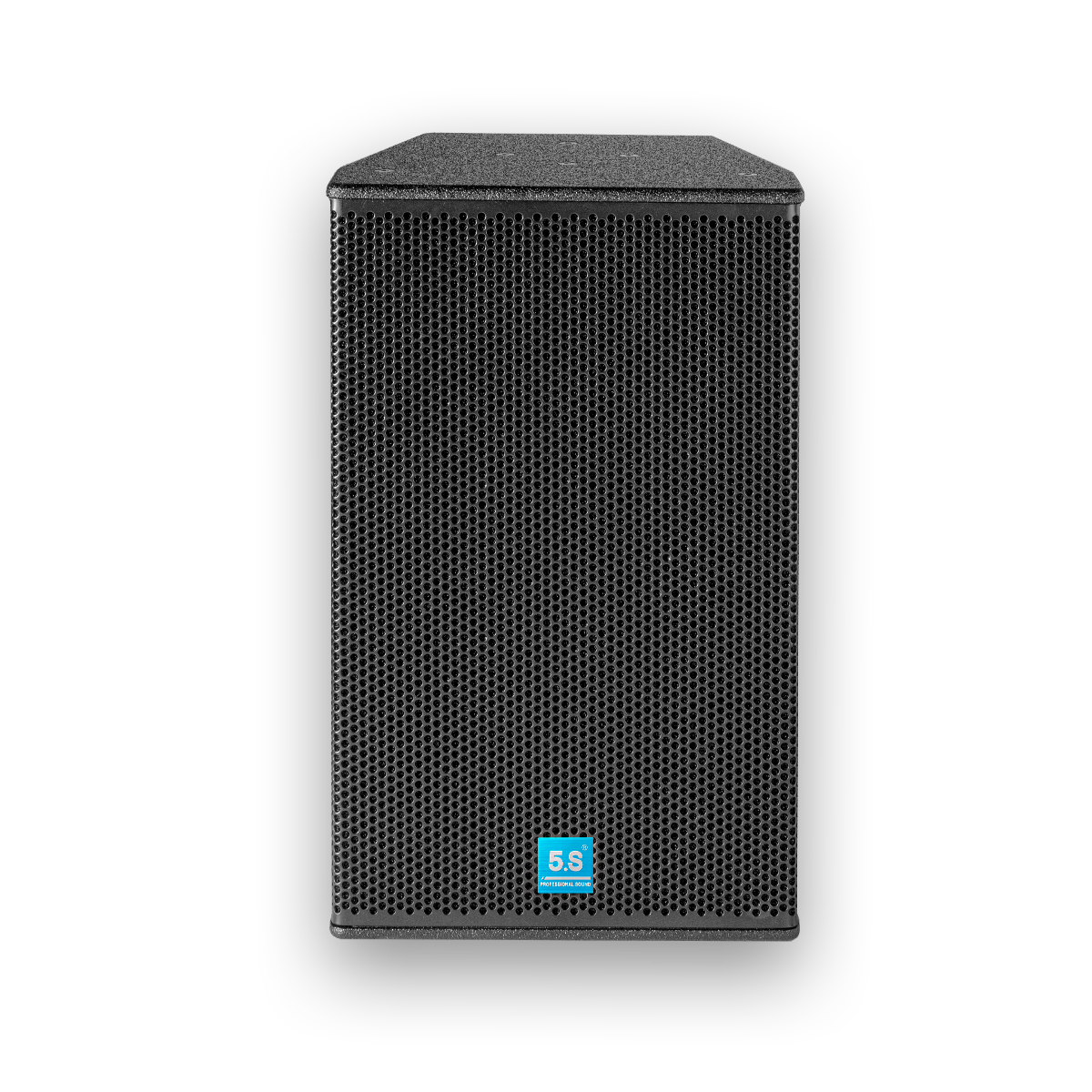

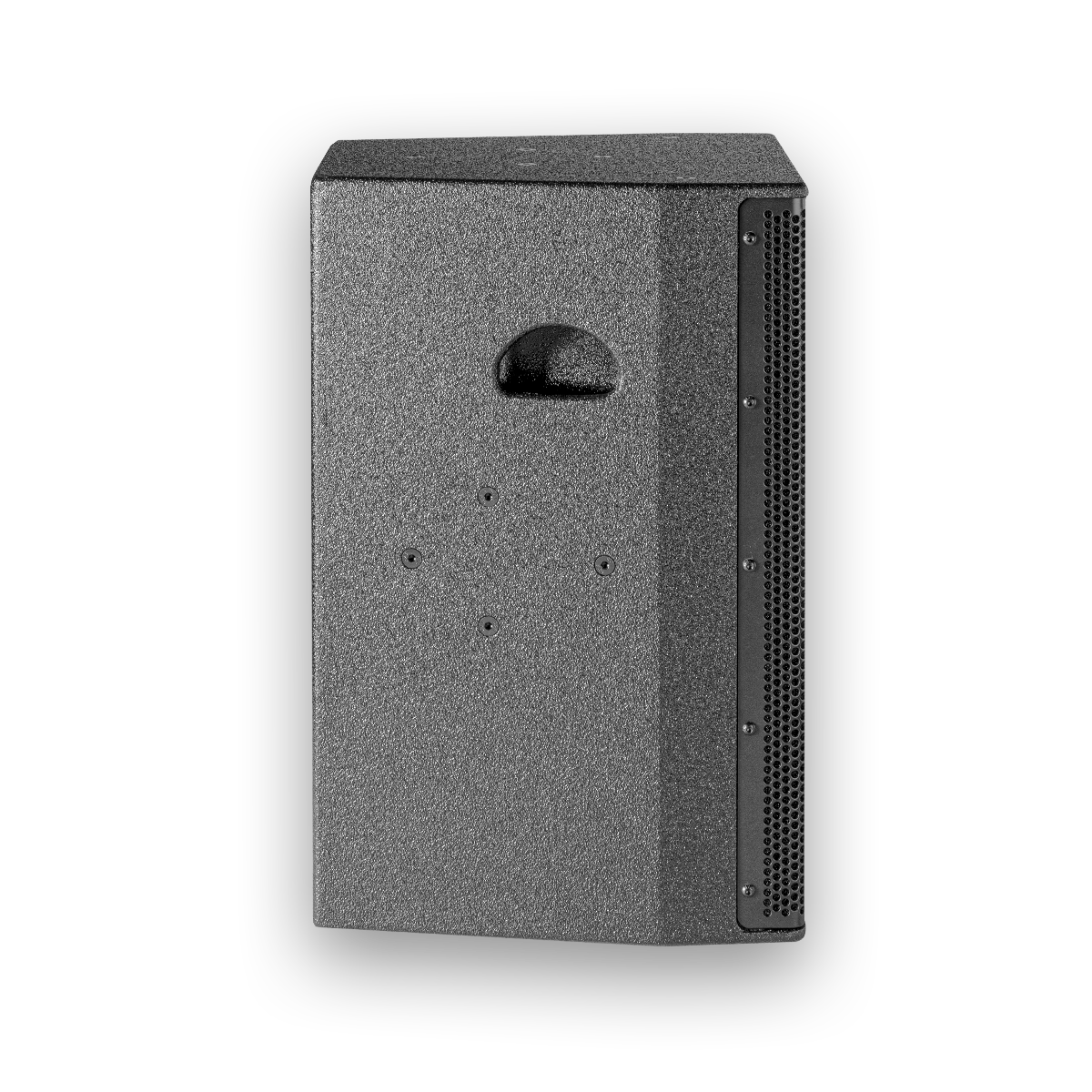

HX-4012

Single 12" Two-Way Multi-Purpose Full-Range Speaker

12" High-Power, Ultra-Low Distortion Bass

Audio HX-4012 speaker features a built-in 12" high-power, ultra-low distortion woofer and a rotatable 90°x60° square fiber-reinforced plastic horn.

Main Features

Rated Power: 500W (AES)
Peak Power: 2000W (AES)
Input Connection: 1*Neutrik^TM 1+ 1-
Sensitivity: 96dB
Maximum SPL: 129dB
Nominal Impedance: 8Ω
Coverage Angle: 90°×60°
Net Weight: 20.5Kg
Dimensions: 360mm×605mm×380mm (W×D×H)

Description
Specifications

Product Description

The Audio HX-4012 speaker is equipped with a 12" high-power, ultra-low distortion woofer, a rotatable 90°x60° square fiber-reinforced plastic horn, and a 1" throat professional tweeter driver, forming a 2-way versatile full-range speaker system. As a 2-way system, the HX-4012 can be paired with a dual-channel amplifier system to achieve high output performance.
The Audio HX-4012 is suitable for fixed installations, commercial KTVs, nightclubs, near/mid-field sound reinforcement, private clubs, and other venues requiring audio solutions.

Technical Specifications

Type:	2-way full-range versatile speaker system
Frequency Response:	40Hz-20kHz
Power:	500W
Peak Power:	2000W
Impedance:	8Ω
Coverage Angle:	90° × 60°
Sensitivity:	96dB
Maximum SPL:	129dB
Crossover Point:	1.3kHz built-in crossover
Input Connector:	1*Neutrik^TM 1+ 1-
Low Frequency:	12" woofer unit with European custom-designed bass driver, 3" (75mm) voice coil, rated power: 500W (AES)
High Frequency:	1" throat, European custom-designed compression driver, 1.75" (44mm) voice coil, rated power: 80W (AES)
Enclosure Material:	15mm marine-grade birch plywood
Enclosure Finish:	Black polyurea paint
Net Weight:	20.5Kg
Dimensions:	360mm×605mm×380mm (W×D×H)
